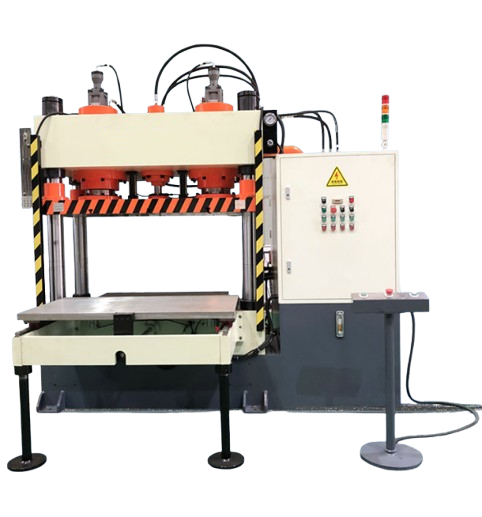

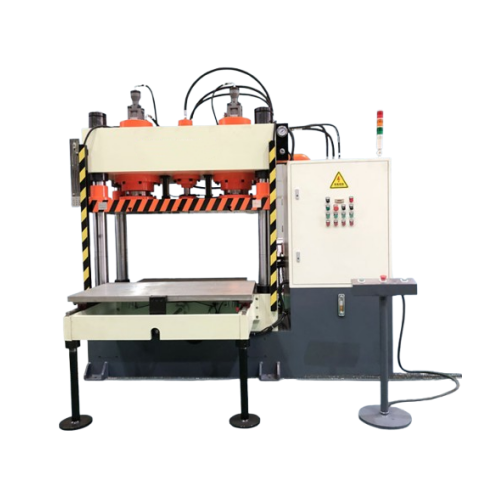

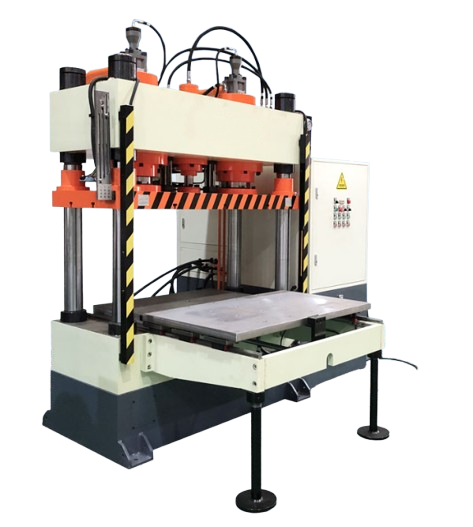

Slide-Type Fast Molding Hydraulic Press Machine For Metal Stamping
Technical features
1. High Efficiency: Utilizes a primary/secondary cylinder system for fast to slow speed transition, enabling rapid idle stroke and high production efficiency.
2. Intelligent Control: Features an imported hydraulic control system. Pressure, stroke, and pressing time can be adjusted according to the specific requirements of the pressing process.
3. Long Service Life: Built with Italian imported servo motors and high-frequency hardened steel materials, ensuring stable machine operation and an extended service lifespan.
4. Safety: The machine can be equipped with protective covers, anti-drop devices, LED work lights, and infrared sensors, enhancing the safety production index.
Parameter
Item | Unit | Specification & Model | |||||
JLP1-300 | JLP1-500 | JLP1-600 | JLP1-800 | JLP1-1000 | |||
Main Cylinder Pressure | ton | 300 | 500 | 500 | 800 | 1000 | |
System Pressure | mpa | 210 | 210 | 210 | 210 | 210 | |
Maximum Stroke | mm | 150 | 150 | 150 | 150 | 150 | |
Maximum Daylight | mm | 165 | 165 | 165 | 165 | 165 | |
Table Height from Floor | mm | 1099 | 1284 | 1284 | 1550 | 1700 | |
Table Effective Area | Distance Between Columns (Left-Right) | mm | 800 | 900 | 900 | 1100 | 1100 |
Front-Rear Edge | mm | 900 | 1050 | 1050 | 1100 | 1440 | |
Main Cylinder Speed | Rapid Approach | mm/s | 135 | 135 | 135 | 110 | 110 |
Working Advance | mm/s | 6 | 6 | 6 | 4 | 4 | |
Return Stroke | mm/s | 125 | 125 | 125 | 100 | 100 | |
Overall Machine Dimensions | Length (Front-Rear) | mm | 1580 | 1600 | 1600 | 1980 | 2200 |
Width (Left-Right) | mm | 1705 | 1865 | 1865 | 1900 | 1900 | |
Height | mm | 1855 | 2145 | 2145 | 2720 | 2930 | |
Motor Power | kw | 11 | 15 | 19 | 19 | 22 | |

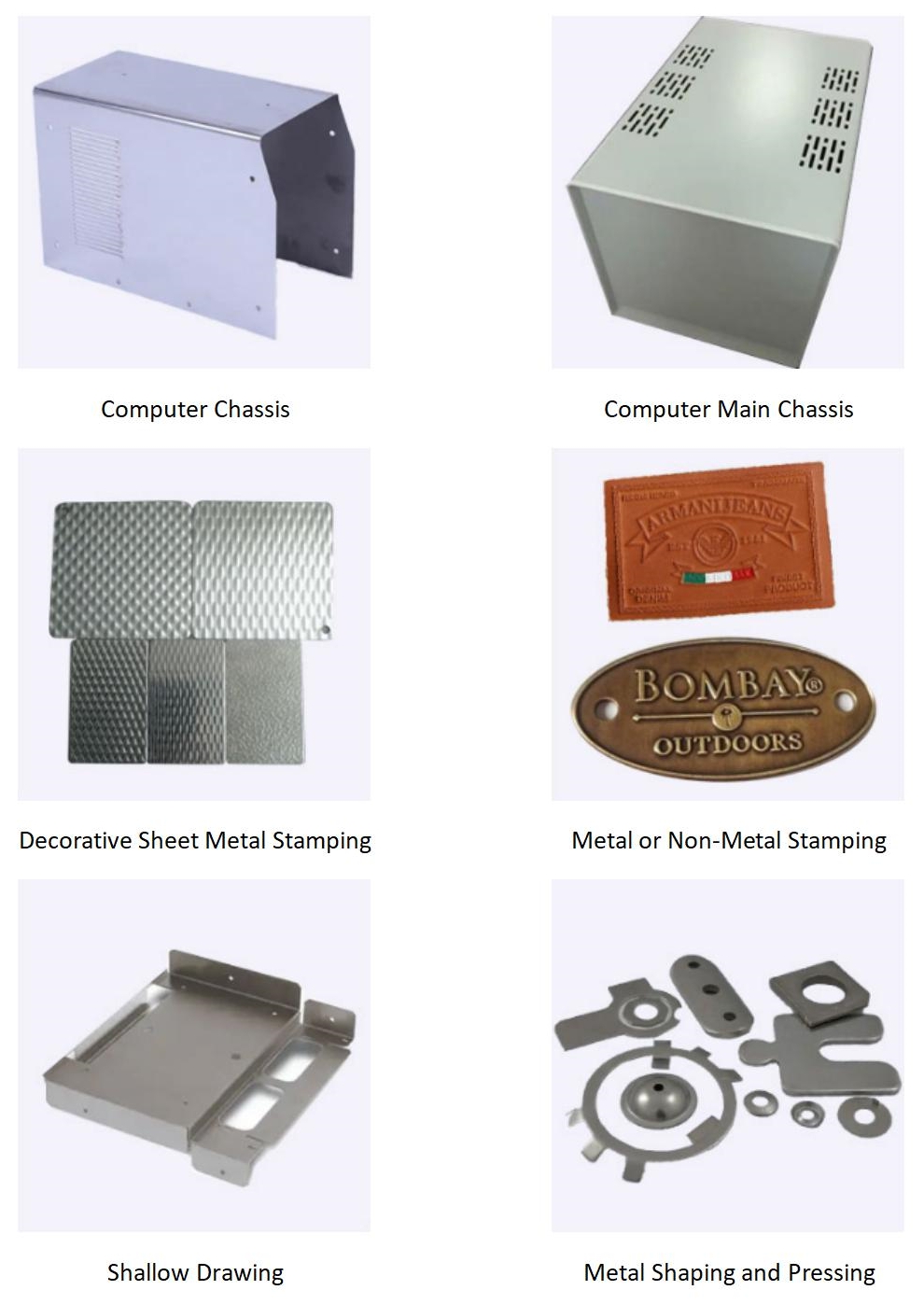

Application industry

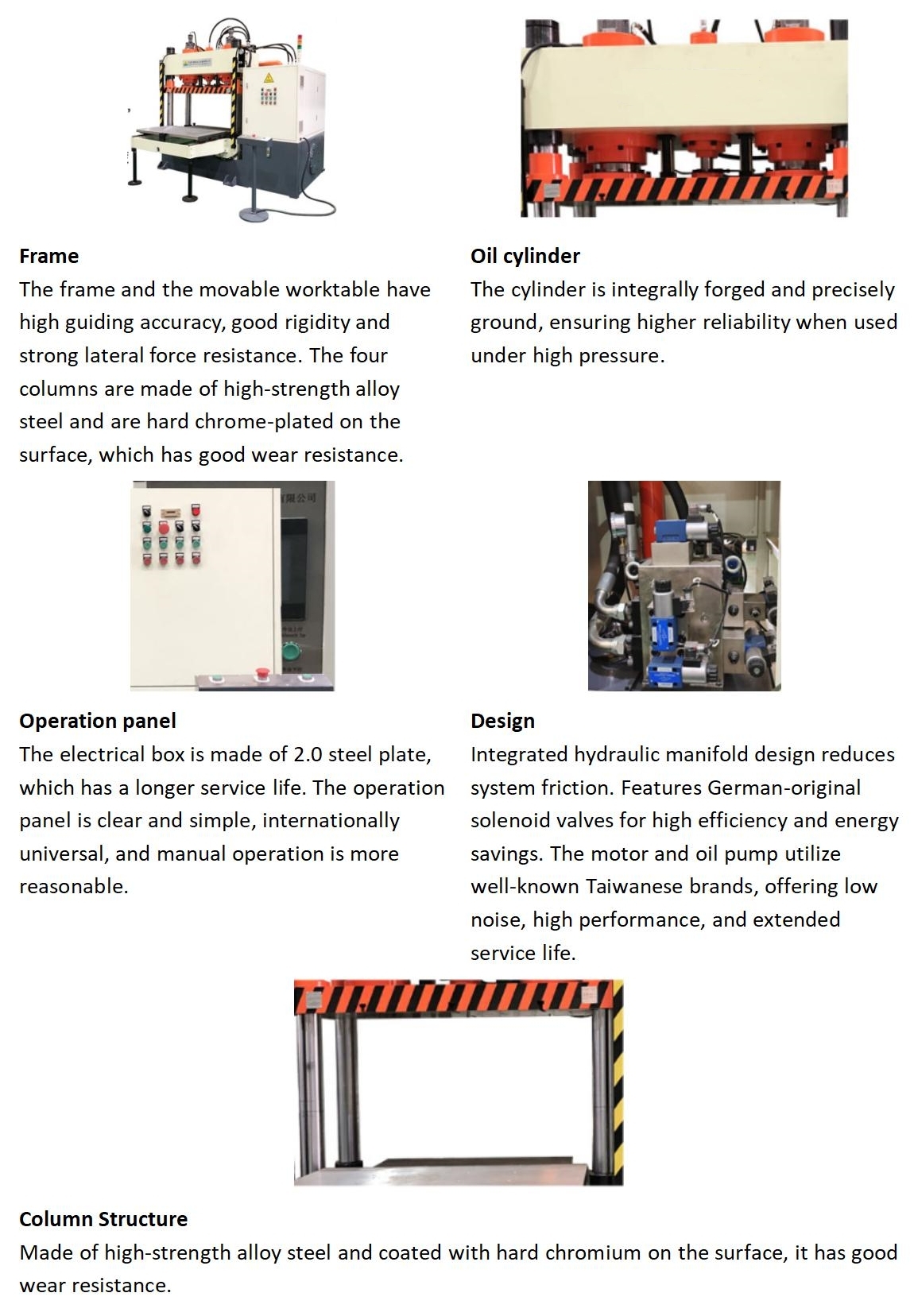

Details
