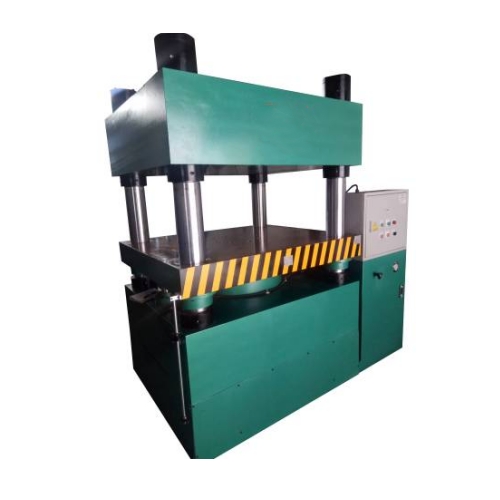

Industrial 200T Sheet Metal Hydraulic Press For Computer Chassis Shaping
Product Features
Adopts master–slave cylinder for quick switching from high speed to slow speed, ensuring high production efficiency.
Working stroke, pressing time, and pressure are all adjustable.
Equipped with safety light curtains and protective guards to enhance operational safety.
Scope of Application
Shaping and pressing processes for computer chassis, air conditioner casings, electrical enclosures, refrigerators, etc.
Shaping, distortion correction, embossing, shallow drawing, and other pressing processes for metal and non-metal products.
Parameter Table
Item | Unit | JLA2-200T | JLA2-300T | JLA2-500T | JLA2-600T | |
Nominal capacity | kN | 2000 | 3000 | 5000 | 6000 | |
Max. working pressure | MPa | 20 | 24 | 25 | 25 | |
Main cylinder nominal force | kN | 2000 | 3000 | 5000 | 6000 | |
Max. stroke of main cylinder | mm | 350 | 350 | 350 | 350 | |
Max. open height | mm | 350 | 350 | 350 | 350 | |
Speed of moving beam | Downward (no load) | mm/s | 180 | 170 | 170 | 160 |
Pressing | mm/s | 10 | 10 | 8 | 8 | |
Return | mm/s | 170 | 160 | 150 | 150 | |
Effective area of working table | Left–right (between columns) | mm | 1100 | 1200 | 1400 | 1600 |
Front–back (edge) | mm | 800 | 800 | 1000 | 1200 | |
Overall dimensions | Left–right | mm | 1720 | 1850 | 2640 | 2850 |
Front–back | mm | 1250 | 1250 | 1750 | 1850 | |
Height | mm | 2850 | 2870 | 2950 | 3100 | |
Motor power | kW | 7.5 | 11 | 18.5 | 22.5 | |
Total weight (approx.) | ton | 5.5 | 6.4 | 15.1 | 17.5 | |
Oil quantity (approx.) | L | 400 | 450 | 500 | 800 | |
Note: The above parameters are for reference only; orders are subject to the contract.
