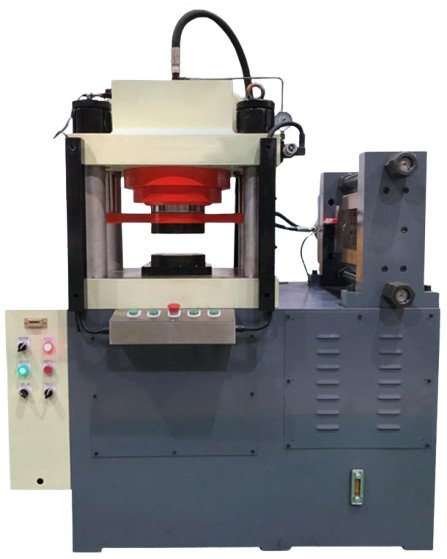

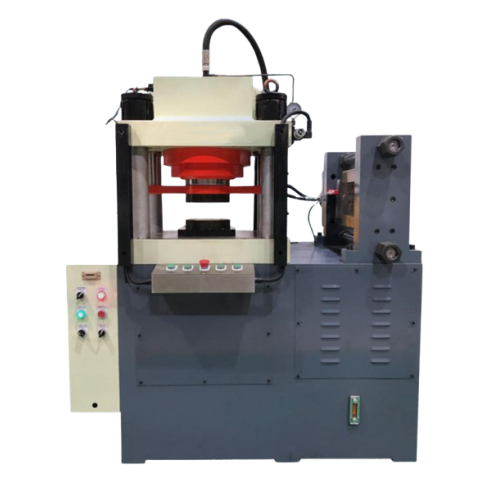

Multi-functional Intelligent Four Column Servo Hydraulic Cold Forging Press Machine
Technical features
1. The frame and moving worktable offer high precision, excellent rigidity, and strong resistance to lateral forces, making them particularly suitable for pressing high‑precision and asymmetrical products.
2. Equipped with imported servo motors and a hydraulic control system, the moving worktable operates at high speed, ensuring efficient production.
3. The oil cylinders are integrally forged and precision‑ground, providing higher reliability under high‑pressure conditions.
4. The four columns are made of high‑strength alloy steel and surface hard chrome‑plated for superior wear resistance.
5. Working stroke, pressing time, and pressure can all be adjusted as needed.
6. Top/bottom‑mounted cylinders are combined with safety light curtains and protective covers, offering multiple layers of protection for enhanced safety.
Parameter
Item | Unit | Specification & Model | ||||||
JLA3-300T | JLA3-500T | JLA3-650T | JLA3-800T | JLA3-1000T | JLA3-1200T | |||
Main cylinder | Nominal Force | ton | 300 | 500 | 650 | 800 | 1000 | 1200 |
Stroke | mm | 400 | 500 | 500 | 500 | 500 | 500 | |
Down speed | mm/s | 160 | 180 | 165 | 165 | 210 | 190 | |
Press speed | mm/s | 8-12 | 8-15 | 8-16 | 8-16 | 8-16 | 6-15 | |
Return speed | mm/s | 130 | 150 | 160 | 160 | 175 | 160 | |
Ejector cylinder | Nominal Force | ton | 30 | 40 | 50 | 50 | 80 | 80 |
Stroke | mm | 200 | 200 | 250 | 250 | 250 | 250 | |
Dia. of ejector bar | mm | Φ50 | Φ50 | Φ80 | Φ80 | Φ80 | Φ80 | |
Working table size | L-R (cylinder) | mm | 700 | 800 | 1000 | 1000 | 1200 | 1300 |
F-B (edge) | mm | 700 | 800 | 1000 | 1100 | 1200 | 1300 | |
Daylight height | mm | 700 | 800 | 900 | 1000 | 1100 | 1200 | |
Motor power | kw | 22 | 37 | 37 | 59 | 74 | 90 | |
Application industry
Note:
1. This model is capable of pressing typical products such as badges, medals, watch cases, watch straps, eyeglasses, frames and components, photo frames, tableware, labels, locks, hardware parts, etc.
2. It can be used for processes including punching, riveting, forming, as well as punching, stamping, and embossing of composite materials and release materials in hardware and electronic products.
3. Suitable for stamping, forming, shallow drawing, sizing, lamination, and trimming of metal or non‑metal parts.

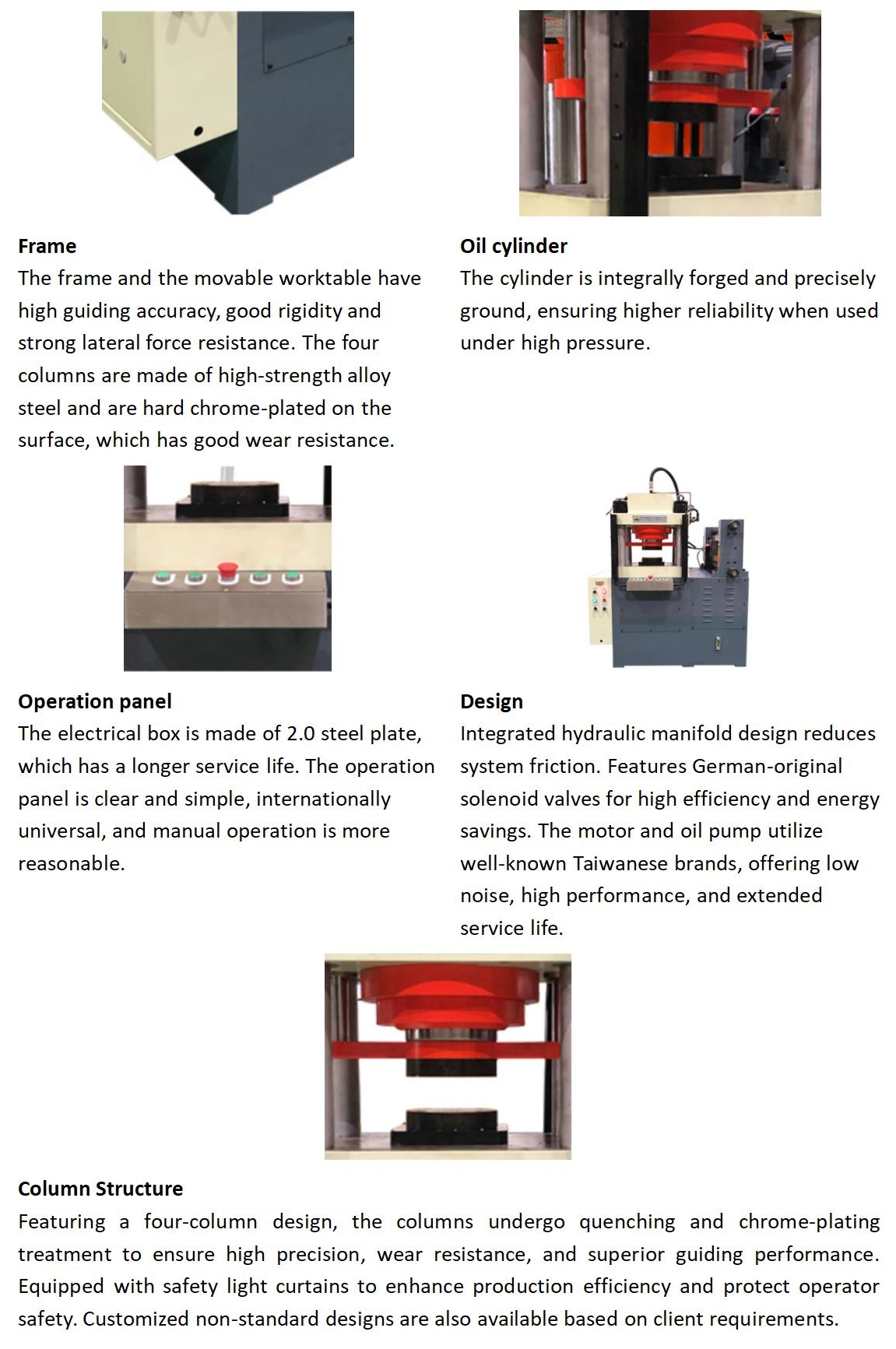

Details
