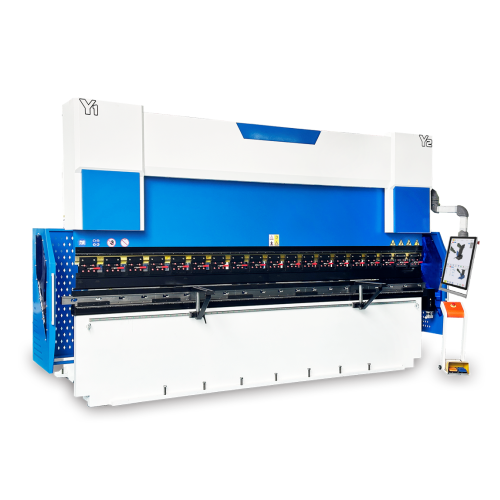

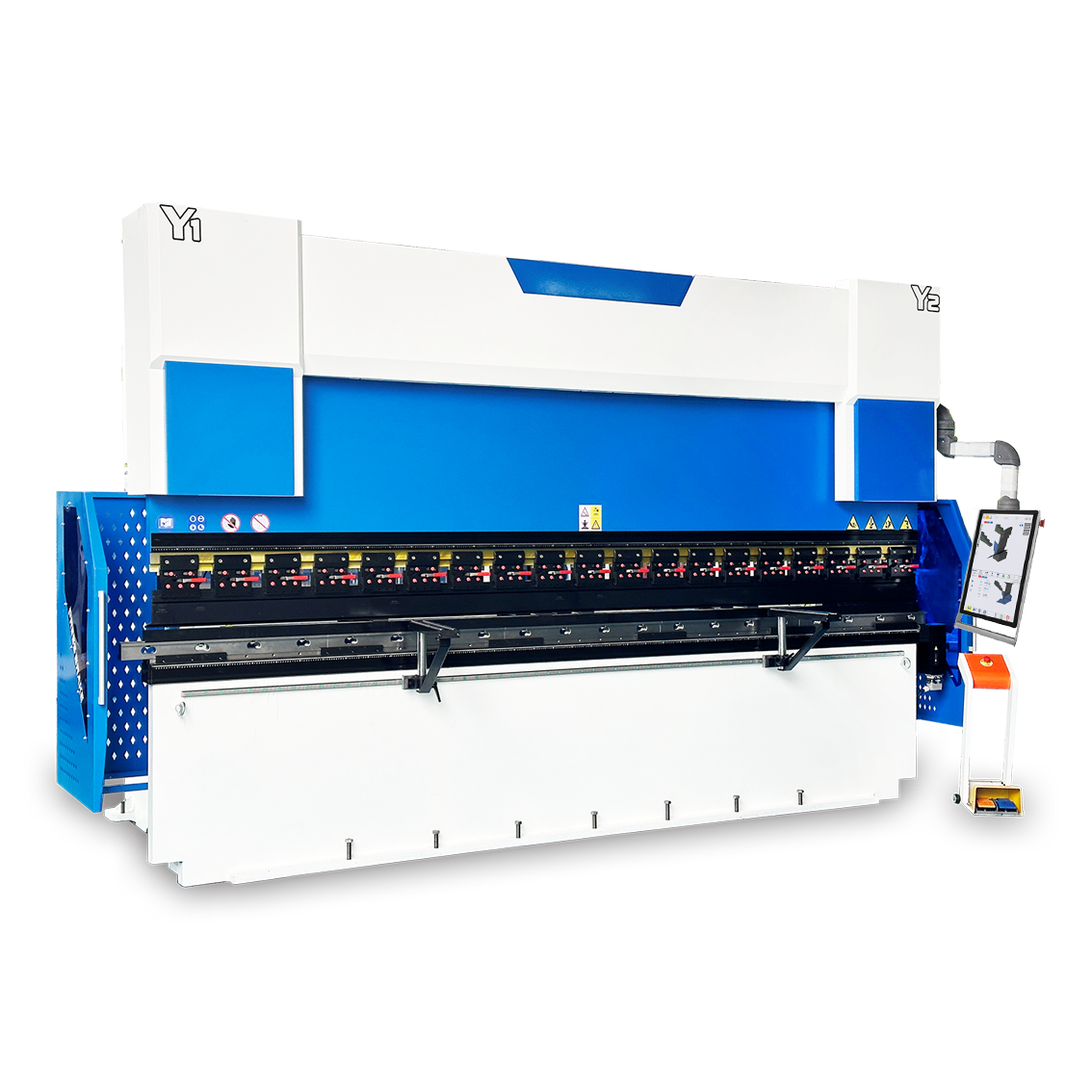

High Efficiency 30-600T Electro-Hydraulic CNC Press Brake For Metal Plate Bending Processing
Introduction
This series Classic Electric Hydraulic CNC PRESS BRAKE is designed with the torsion bar, servo diver driving the Y axis and the two cylinders move up and down simultaneously. The X axis (stroke and distance of the back gauge) is driven by servo motor. The machine adopts an integrated hydraulic system, which is more reliable and easy to maintain. The fuselage adopts the simplified design of the European Union, and is integrally welded and integrally formed, and the stress is relieved through repeated treatment. The single mode and reversing and maintenance time of the machine can be controlled by the time relay. and the adjustment amount is displayed by HK68T. The machine is equipped with a safety fence and electronic interlocking device to ensure safe operation.
Parameters
Model | Bending Pressure (kn) | Bending Length (mm) A | Column Distance (mm) B | Throat Depth (mm) D | Slider Stroke (mm) C | Max Opening Height (mm) E | X-axis Max Distance (mm) | Sliding Front Supporting Arms (Pcs) | Back stopper (PCS) | Main Motor (kw) | Length x Width x Height (mm) | Weight (T) |
30T/1600 | 300 | 1600 | 950 | 230 | 100 | 320 | 300 | 2 | 2 | 3 | 1800x1200x1620 | 2000 |
40T/1600 | 400 | 1600 | 950 | 230 | 100 | 320 | 300 | 2 | 2 | 3 | 1800x1200x1820 | 2500 |
40T/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2200×1200*1900 | 2750 |
40T/2500 | 400 | 2500 | 1850 | 230 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2500x1200x1900 | 3000 |
50T/2500 | 500 | 2500 | 1850 | 230 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2500*1200*2000 | 3400 |
63T/2500 | 630 | 2500 | 1900 | 250 | 100 | 320 | 500 | 2 | 2 | 5.5 | 2500x1300x2210 | 4000 |
63T/3200 | 630 | 3200 | 2560 | 250 | 100 | 320 | 500 | 2 | 3 | 5.5 | 3200x1300x2210 | 4800 |
80T/2500 | 800 | 2500 | 1990 | 300 | 100 | 320 | 500 | 2 | 2 | 7.5 | 2500x1400x2300 | 5000 |
80T/3200 | 800 | 3200 | 2560 | 320 | 100 | 350 | 500 | 2 | 3 | 7.5 | 3200x1500x2300 | 6000 |
80T/4000 | 800 | 4000 | 3200 | 320 | 100 | 350 | 500 | 2 | 4 | 7.5 | 4000x1500x2400 | 7000 |
The specification can be customized! Please contact our sales manager for further confirmation!
