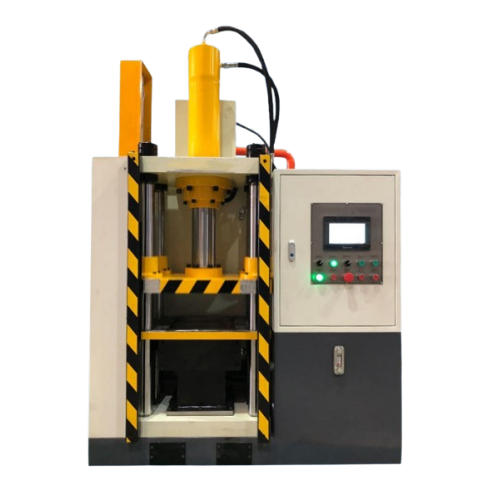

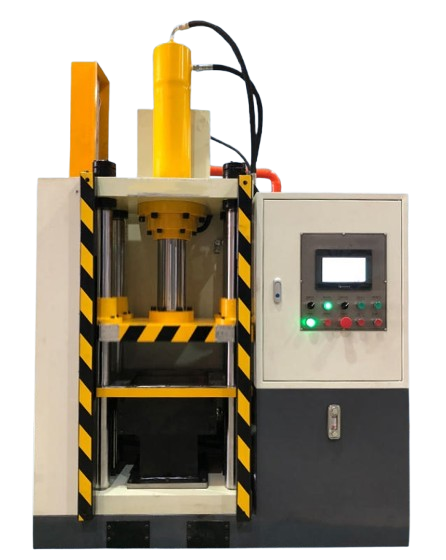

Four Column Metallurgy Powder Servo Hydraulic Press Forming Machine
Parameter
Item | Unit | Model&Specification | |||||
JLF2-150T | JLF2-200T | JLF2-250T | JLF2-350T | JLF2-500T | |||
Nominal force | KN | 1500 | 2000 | 2500 | 3500 | 5000 | |
Max. Working pressure | mpa | 20 | 21 | 22 | 22 | 20 | |
Main cylinder nominal force | kw | 1000 | 1500 | 1750 | 2500 | 3000 | |
Max. Stroke of ram | mm | 550 | 550 | 600 | 650 | 750 | |
Max. Open height | mm | 850 | 900 | 1000 | 1100 | 1300 | |
Lower cylinder nominal force | kn | 500 | 500 | 750 | 1000 | 2000 | |
Stroke of lower cylinder | mm | 250 | 250 | 250 | 300 | 350 | |
Upper ejection cylinder force | kn | 30 | 30 | 30 | 50 | 50 | |
Stroke of upper ejection cylinder | mm | 230 | 230 | 230 | 280 | 320 | |
Speed of ram | Down no load | mm/s | 350 | 380 | 320 | 380 | 290 |
Pressing | mm/s | 2-40 | 2-40 | 2-40 | 2-40 | 2-40 | |
Return | mm/s | 340 | 360 | 320 | 300 | 290 | |
Effective area of working table | Inside column | mm | 620 | 700 | 800 | 950 | 1200 |
Edge | mm | 750 | 850 | 900 | 1100 | 1400 | |
Overall dimension | L-R(cylinder) | mm | 1940 | 2410 | 1650 | 2430 | 2780 |
F-B(edge) | mm | 1380 | 1820 | 1890 | 2000 | 2400 | |
Height | mm | 3250 | 3440 | 2890 | 4250 | 4750 | |
Distance between working table and ground | mm | 1120 | 1120 | 1300 | 1340 | 1700 | |
Servo motor power | kw | 16 | 25 | 25 | 31 | 50 | |
Total weight (approx.) | ton | 5.1 | 6.3 | 9.2 | 11 | 20.9 | |
Oil quantity (approx.) | L | 500 | 650 | 700 | 800 | 900 | |
Technical features
1. The frame and moving worktable feature high precision and rigidity, with strong resistance to lateral forces, making it particularly suitable for high-precision pressing of asymmetrical products.
2. Equipped with imported servo motors and a hydraulic control system, the moving worktable operates at high speeds, ensuring high production efficiency.
3. The oil cylinders are integrally forged and precisely honed, providing higher reliability under high-pressure conditions.
4. The four columns are made of high-strength alloy steel and surface hard chrome-plated for excellent wear resistance.
5. Working stroke, pressing time, and pressure can all be adjusted.
6. Top/bottom-mounted cylinders are combined with safety light curtains and safety guards, offering multiple layers of protection for higher safety.
Application industry
Note:
This model is suitable for powder pressing of both metallic and non-metallic products, such as tea blocks, salt blocks, dentures, iron products, and metallurgical materials, for compaction and shaping processes.

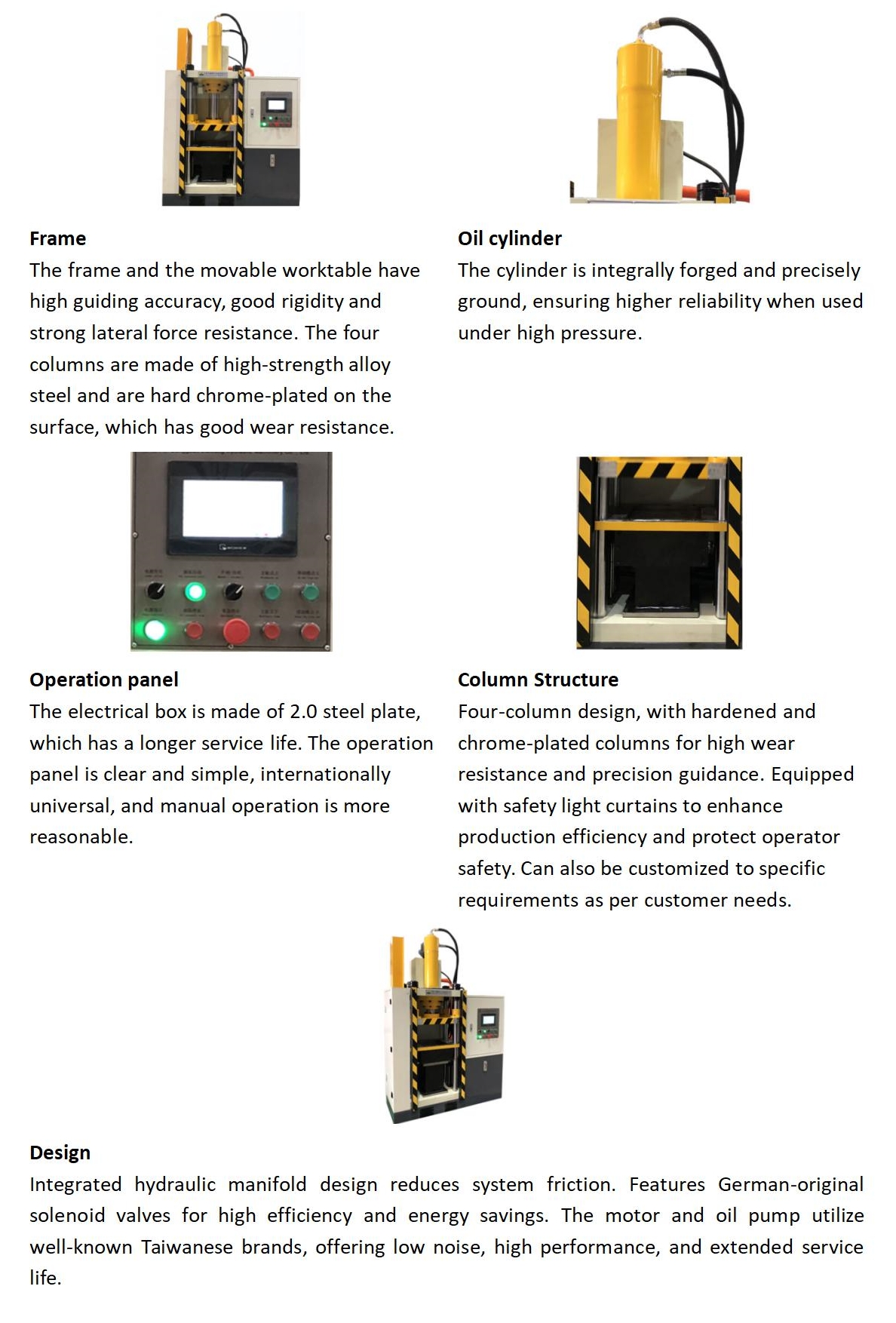

Details
