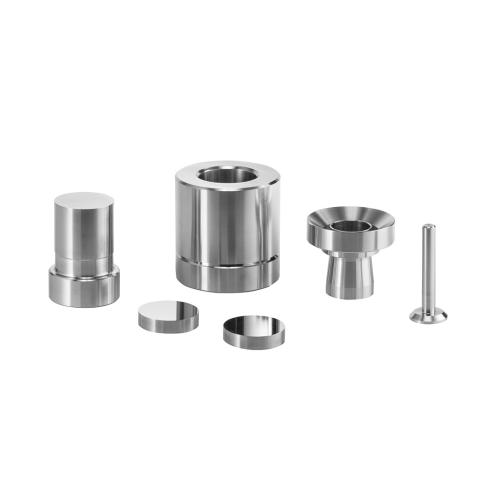

Lab Boric Acid Mold Die Set For X-ray Fluorescence Spectrometers Hydraulic Powder Pressing
Introduction
The boric acid mold involves wrapping the sample with boric acid powder and then pressing the powder into shape. It is mainly used for sample preparation and molding of X-ray fluorescence spectrometers. The size of the tablet pressed by this mold is 40mm in outer diameter, and the size of the sample is 32mm in diameter. Tablet thickness: 5 to 8mm in height. Special mold sizes can be customized according to customer requirements
Technical parameters
Instrument model | PMP |
Press the shape of the sample |  |
Mold material | 440C |
Indenter hardness | HRC60-HRC62 |
Sample size | Φ32/40mm (M) includes sample separation funnel |
Cavity depth | 45mm (N) |
Overall dimensions | Φ73*133mm (L*H) |
Mold weight | 3.5kg |

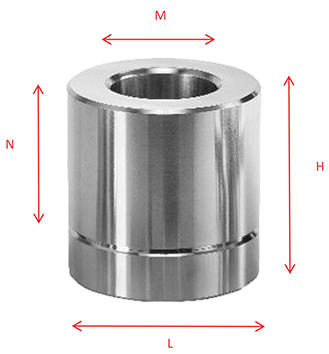

Schematic diagram of dimensions |  |
