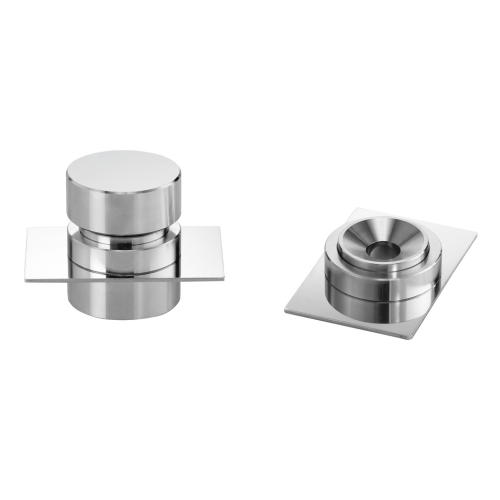

Dia13mm Cylindrical Infrared Mold Without Demolding For Lab Hydraulic Pallet Pressing
Introduction
After the samples are formed by the infrared non-demolding mold, there is no need to demold them. The sample forming effect is good and they can be directly placed in the sample chamber of the infrared spectrometer for testing. Mold size: diameter 13mm. Product tablet thickness: 0.5 to 1mm in height.
Technical parameters
Instrument model | PMH-A |
Press the shape of the sample |  |
Mold material | cemented carbide YT15 |
Indenter hardness | HRC72-HRC75 |
Sample size | Φ13mm (M) |
Cavity depth | 10mm (N) |
Overall dimensions | 76*50*70mm (L*H) |
Mold weight | 0.8kg |

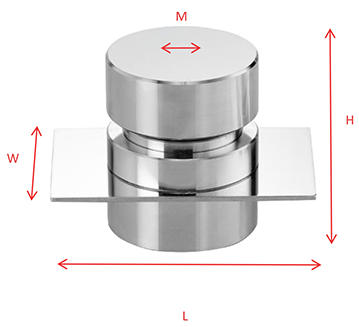

Schematic diagram of dimensions |  |
