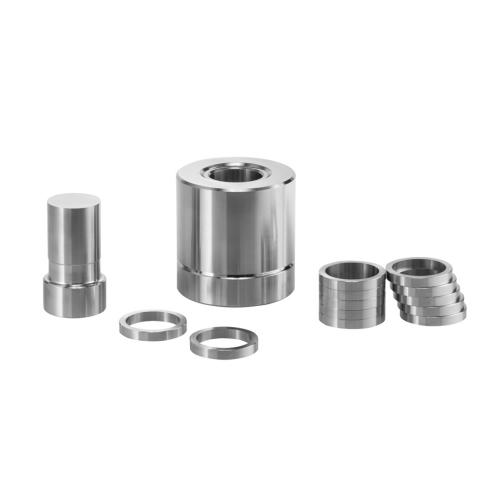

Lab Steel Ring Die Set For X-ray Fluorescence Spectrometers Hydraulic Powder Pressing
Introduction
Steel ring molds are used for the forming of X-ray fluorescence spectrometer samples. Stainless steel rings are used as the support rings for the samples. The tablet pressing speed is fast and the forming effect is good. The tablet pressing size is: outer diameter 40mm, inner diameter 32mm, sample size 32mm, pressing thickness: height 5-8mm. Special mold sizes can be customized according to customer requirements
Technical parameters
Instrument model | PMG |
Press the shape of the sample |  |
Mold material | 440C |
Indenter hardness | HRC60-HRC62 |
Sample size | Φ32/40mm (M) includes 10 rings |
Cavity depth | 45mm (N) |
Overall dimensions | Φ73*133mm (L*H) |
Mold weight | 3.5kg |

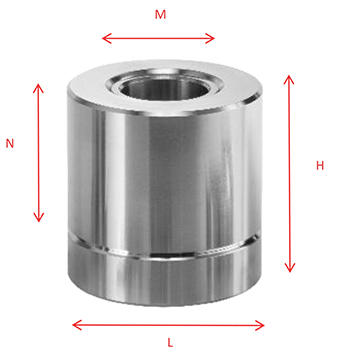

Schematic diagram of dimensions |  |
