High-Precision 10T-40T Inductor Integrated Compaction Press Machine For Powder Forming
Introduction

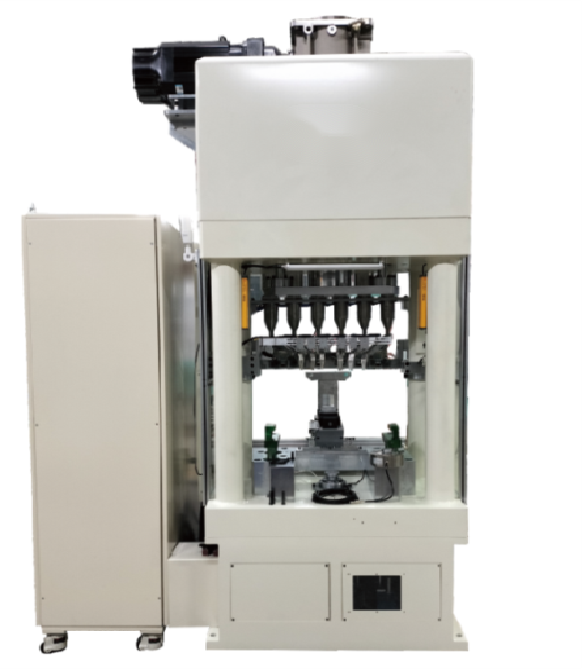

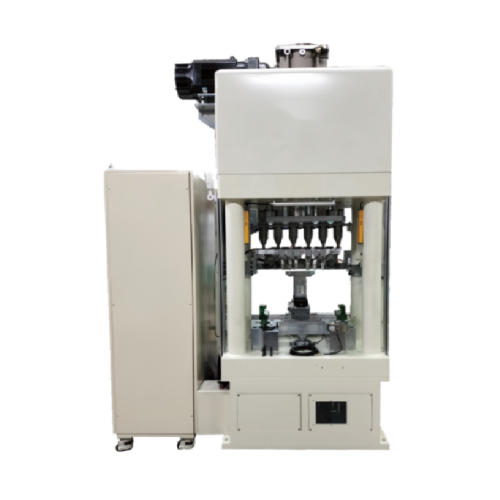

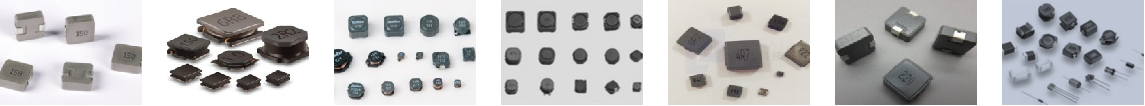

The Inductor Integrated Forming Machine is a high-precision, high-efficiency, fully automated inductor molding equipment. It primarily consists of a precision servo system, a servo-driven feeding system, and an accurate quantitative powder feeding system. Utilizing a fully digital control system, it achieves efficient and stable fully automated integrated inductor molding, effectively enhancing production speed and efficiency. It can be integrated with peripheral robotic arms for part handling and feeding, further improving equipment efficiency and safety.
Technical parameters
Model | XTMP-003-10T | XTMP-003-20T | XTMP-003-30T | XTMP-003-40T | |
Main Machine Dimensions (LWH) | 1250*1350*2650 | 1250*1350*2650 | 1785*1350*2950 | 1785*1350*3100 | |
Drive Method | 1. AC Servo Drive, 2. PC + PLC control, with 20% of interfaces reserved for external device expansion. | ||||
Control Method | CNC 5-axis control (Upper spindle, Lower spindle, Movable lower punches (2 axes), Powder feeder) | ||||
CNC Upper Punch: 100 kN | CNC Upper Punch: 200KN | CNC Upper Punch: 300KN | CNC Upper Punch: 400KN | ||
CNC Die: 50 kN (including filling capacity, pressure holding capacity, withdrawal capacity, pressing down capacity) | CNC Die: 100 kN (including filling capacity, pressure holding capacity, withdrawal capacity, pressing down capacity) | ||||
CNC Lower Punch: 30 kN (including filling capacity, pressure holding capacity, withdrawal capacity, synchronized movement capacity) | CNC Lower Punch: 40 kN (including filling capacity, pressure holding capacity, withdrawal capacity, synchronized movement capacity) | ||||
CNC powder feeder | CNC powder feeder | CNC powder feeder | CNC powder feeder | ||
CNC Powder Feeding Lift | CNC Powder Feeding Lift | CNC Powder Feeding Lift | CNC Powder Feeding Lift | ||
Power | Upper Punch | 11KW (1500RPM) Servo Motor Reduction Ratio | 15KW (1500RPM) Servo Motor Reduction Ratio | 22KW (1500RPM) Servo Motor Reduction Ratio | 30KW (1500RPM) Servo Motor Reduction Ratio |
Cavity | 1.8KW (1200RPM) Servo Motor Reduction Ratio | 1.8KW(1200RPM) Servo Motor Reduction Ratio | 2.9KW(1200RPM) Servo Motor Reduction Ratio | 2.9KW(1200RPM) Servo Motor Reduction Ratio | |
Movable Lower Punch | 2.9KW (750RPM) Servo Motor Reduction Ratio | 2.9KW(750RPM) Servo Motor Reduction Ratio | 4.4KW(750RPM) Servo Motor Reduction Ratio | 4.4KW(750RPM) Servo Motor Reduction Ratio | |
Max. Powder Fill Depth | 30mm | 30mm | 30mm | 30mm | |
Max. Ejection Stroke | Cam Data Editing: Automatic calculation | ||||
Upper Punch Max. Stroke | 150mm | 150mm | 150mm | 150mm | |
Upper Punch Adjustment | 30mm | 30mm | 30mm | 30mm | |
Punch Max. Stroke | 50mm | 50mm | 50mm | 50mm | |
Lower Punch Max. Stroke | 50mm | 50mm | 50mm | 50mm | |
Lower Punch Adjustment | 0-30mm | 0-30mm | 0-30mm | 0-30mm | |
