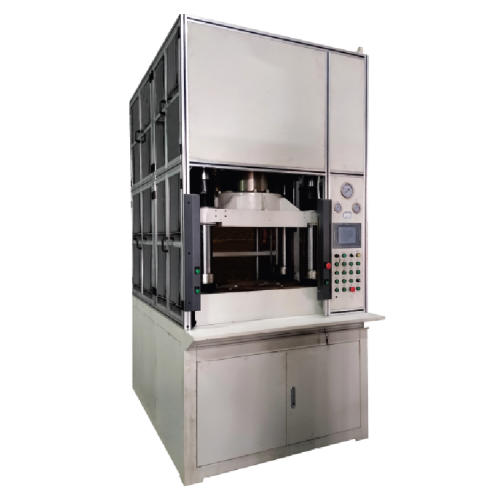

Automatic Servo Hydraulic Inductor Integrated Forming Press Machine For Powder Compacting
Introduction
The Inductor Servo Hydraulic Press is a newly developed large-scale pelleting equipment. It compacts granular and powdered raw materials into various standard and special-shaped tablets, suitable for pressing large products and those requiring high density specifications. It is capable of producing multiple pieces per mold cycle, making it ideal for large-scale production industries. The equipment features high precision, easy-to-learn mold replacement and installation, and a high degree of automation. Equipped with a movable worktable and an automatic feeding system, it ensures operational safety.
Technical parameters
Model | 106SF-300T | 106SF-400T |
Main Cylinder Force Range (T) | 300 | 400 |
Lower Cylinder Force Range (T) | 50 | 70 |
System Pressure (MPa) | 21 | 25 |
Max. Working Height (mm) | 580 | 580 |
Closed Height (mm) | 230 | 230 |
Main Cylinder Stroke (mm) | 350 | 350 |
Lower Cylinder Stroke (mm) | 150 | 150 |
Table Effective Area: Between Columns (L*W) (mm) | 680*650/800*600 | 800*600 |
Control Panel Height from Floor (mm) | 1250 | 1250 |
Moving Beam Approach Speed (mm/s) | 190 | 190 |
Working Speed (mm/s) Adjustable | 2~8 | 2~8 |
Moving Beam Return Speed (mm/s) | 190 | 190 |
Weight (T) | 6.8 | 7.8 |
Upper Beam Thickness (Cast Iron) (mm) | 400 | 450 |
Moving Beam (Cast Iron) (mm) | 220 | 250 |
Lower Table Plate Thickness (45# Steel) (mm) | 205 | 215 |
Overall Dimensions (LWH) (mm) | 1450*2000*2950 | 1600*2000*3200 |

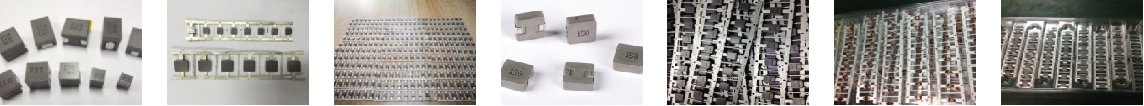

Finished Product
