Press Brake Tooling
Press Brake Dies — CNC Press Brake Dies, Bending Dies, Forming Dies, and Press Brake Blades
Product Specifications
Press Brake Dies / CNC Press Brake Dies
Materials: Cr12Mo1V1, 42CrMo, T10A
Heat Treatment / Hardness: HRC 52°–60°
Tolerance: ±0.002 mm
Additional Services: CNC press brake tooling grinding, regrinding, repair, maintenance, and other tooling services
Standard Lengths: 835 mm, 800 mm, 550 mm
Standard CNC press brake tooling is available from stock. Non-standard press brake tooling can be custom manufactured according to the customer's drawings, specifications, and requirements.
CNC Press Brake Tooling Segmentation
Segment Type 1
CNC Press Brake Upper Tool:
100 mm (Left) + 10 + 15 + 20 + 40 + 50 + 200 + 300 + 100 mm (Right) = 835 mm
CNC Press Brake Lower Die:
10 + 15 + 20 + 40 + 50 + 100 + 200 + 400 = 835 mm
Segment Type 2
CNC Press Brake Upper Tool:
100 mm (Left) + 10 + 15 + 20 + 40 + 50 + 165 + 300 + 100 mm (Right) = 800 mm
Application
Our press brake tooling is suitable for a wide range of CNC press brake machines, including:
LVD CNC press brakes
AMADA CNC press brakes
TRUMPF CNC press brakes
FINN-POWER CNC press brakes
Various domestic CNC press brake machines

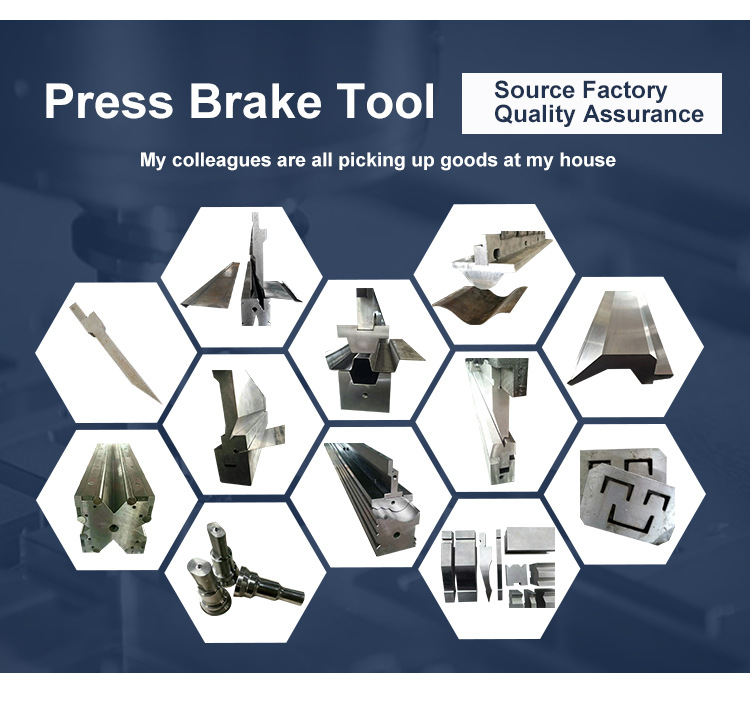

Available Press Brake Tooling
We supply various types of press brake tooling, including:
CNC press brake segmented dies
Press brake concentric lower dies
CNC press brake upper tools
CNC press brake lower dies
CNC press brake multi-V dies

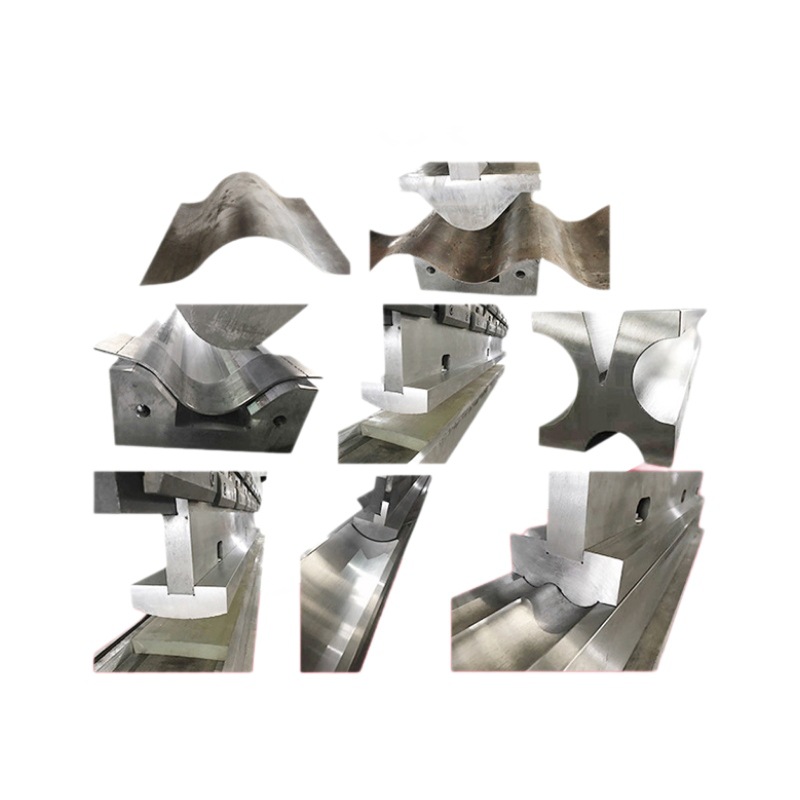

CNC press brake compound forming dies
Custom press brake tooling
Special-profile bending tools
Custom press brake dies and tooling can be manufactured according to customer drawings, machine models, bending requirements, and workpiece specifications.

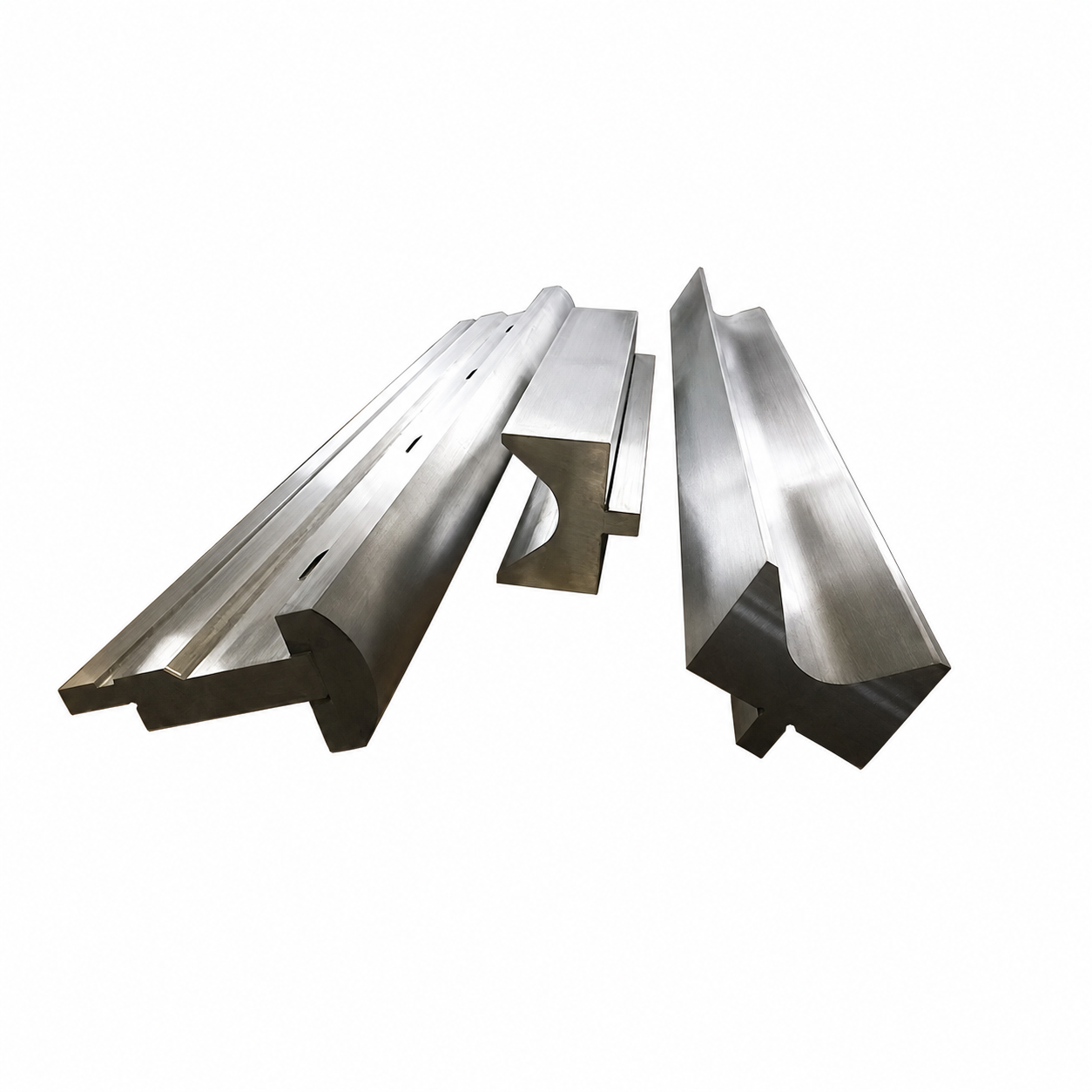

Picture for reference only
