Laboratory Plate Shaping Heatable Die Set for Hydraulic Hot Press
Introduction

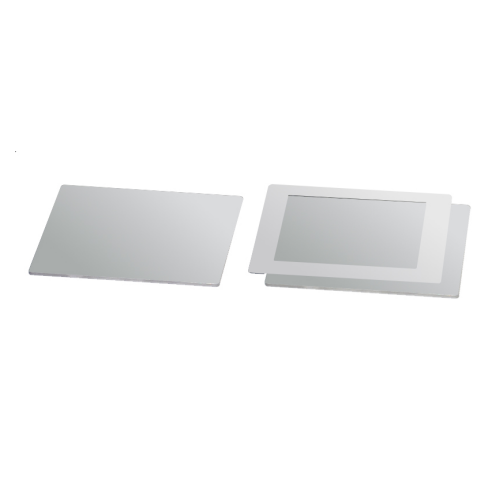

Stainless steel flat mold is suitable for thin film samples, the thickness of the sample can be controlled by the intermediate quantitative plate,and it is convenient to remove the pressed sample without fighting the hot press.

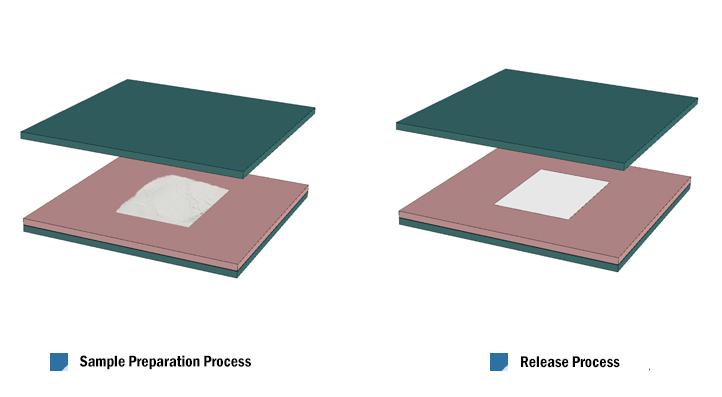

Die Operation Diagram

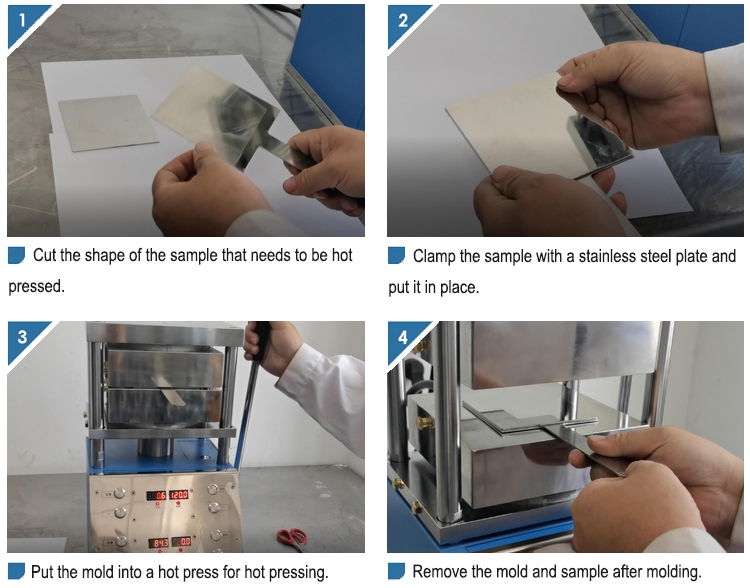

Die Operation Steps
Technical parameters
Instrument model | PCH-F |
Pressed sample shape |  |
Heating temperature | RT-500℃ |
Mold material | 304(Stainless Steel) |
Sample size | Regular rectangles or bone shapes are available,and custom designs are also welcome according to your requirements |
Interlayer thickness | 0.75mm，1.35mm,1.75mm，2.75mm |
Overall dimensions | 80x80mm，180x180mm，200x200mm |
Mold weight | 0.4kg, 0.8kg, 1.0kg |

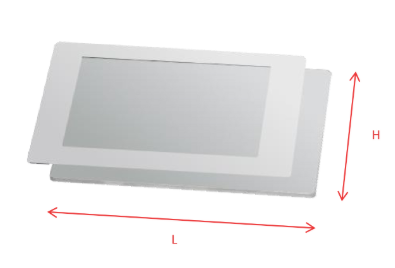

Dimension diagram |  |
