Laboratory Length 3-10mm Square Split Mold
Technical Parameters
Instrument model | PMK-FA |

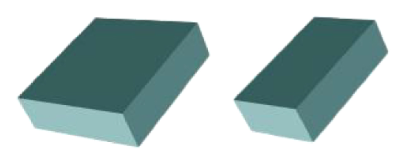

Pressed sample shape |  |
Mold material | 440C |
Indentation hardness | HRC60-HRC62 |
Sample size | Length: 3-10 mm (M) |
Cavity depth | 40mm (N) |
Overall dimensions | Φ68 x 110 mm (L x H) |
Mold weight | 2kg |

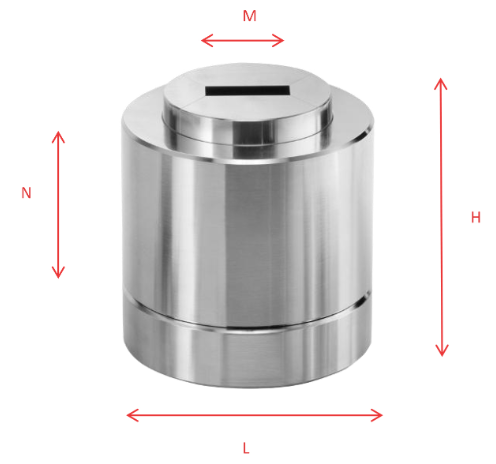

Dimension diagram |  |
