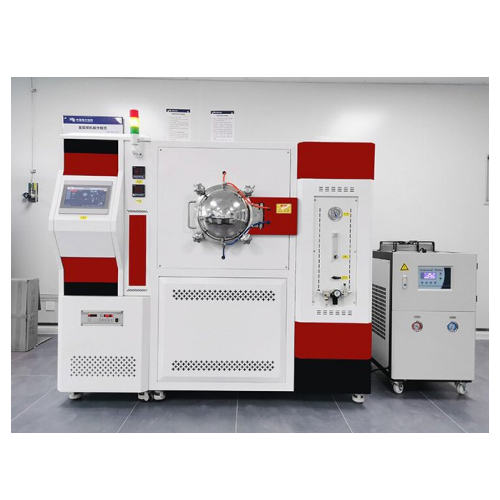

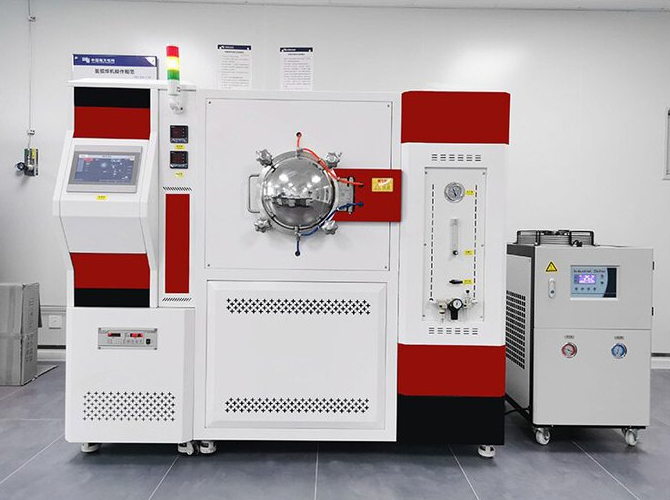

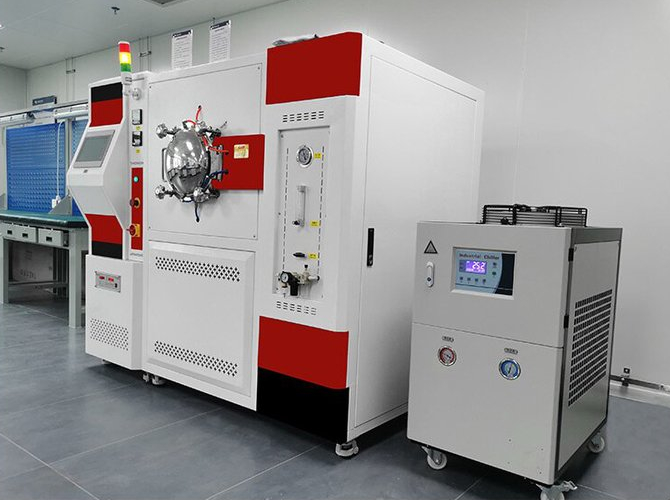

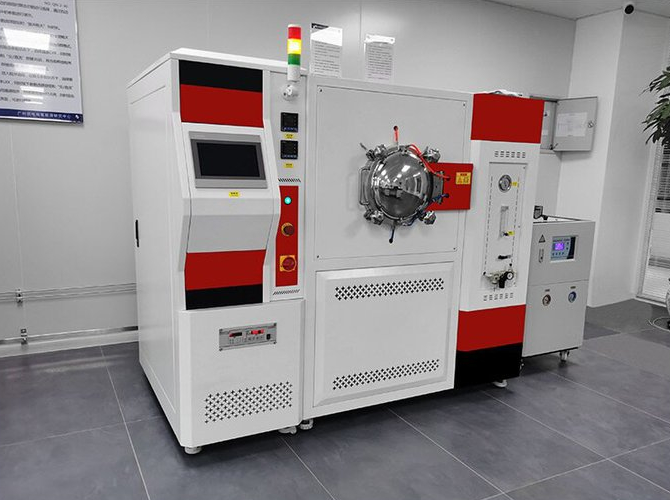

Vacuum Copper Heat Treatment Furnace
Features
One-Touch Start & Remote Control
Controller: Intelligent system with 30-segment programmable heating curves.Heating and temperature control accuracy reaches ±1℃.
Double-Layer Housing Structure
Round-in-Square Structure: Features annular heating, high-temperature resistant furnace door, anti-deformation design, and long service life.
Safety System
Tight Seal & Safety Monitoring: Equipped with sensor-based fault detection, accompanied by audible and visual alarm prompts.
Heat Dissipation System
Easy & Safe Operation: The furnace bottom is fitted with a double-layer grille-type heat dissipation structure, which lowers the surface temperature, ensures operator safety, and improves work efficiency.
Specification
Item | Specification |
Voltage (AC) | 380V |
Temperature Control Accuracy | ±1℃ |
Chamber Size (L×W×H) | 300×200×200 mm 400×300×300 mm 500×400×400 mm |
Working Temperature | 1000℃ |
Vacuum Level | 10 Pa |
Heating Element | Resistance Wire |
Max. Heating Rate | 5-8℃/min |
Atmosphere | Nitrogen (N₂), Argon (Ar), Hydrogen (H₂) and other gases available |
Heating Power | 15 kW |
Chamber Material | 310S Stainless Steel |
Control System | Fully automatic control system with temperature calibration and compensation functions; 30-segment time-temperature curve programmable |
