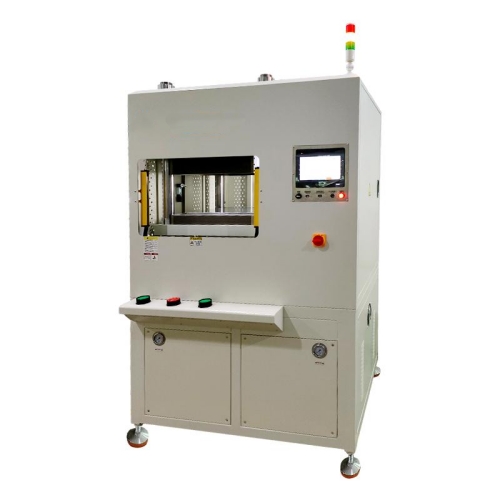

Top Cylinder Servo Vacuum Hot Pressing Machine For Carbon Fiber Lamination

Application Fields

• New Energy Industry: Hot pressing packaging/molding of battery insulation plates, airgel insulation sheets, PET/PI films, etc.

• Automotive Industry: Hot pressing forming of instrument panels, smart sunroofs, automotive exterior lights, etc.

• Semiconductor Industry: Hot pressing forming of flexible circuits (FPC), organic films, organic lighting, solar cells, LCD displays, ACF adhesives, etc.

• Hot pressing lamination processes for thermoset composite materials, thermoplastic composite materials, new materials, resin, glass fiber, carbon fiber and various types of films

• Aviation, shipbuilding, hydrogen energy, communication, biomedical material research, and other scientific research fields

Advantages and Features

• Electric cylinder type position repeatability: ±0.008mm

• Hydraulic type position repeatability: ±0.02mm

• Electric cylinder type pressure repeatability: ±0.05%

• Hydraulic type pressure repeatability: ±1%

• Electric cylinder type perpendicularity: ±0.01mm

• Hydraulic type perpendicularity: ±0.02mm

• Vacuum degree: -98kpa/-101.2kpa

• Temperature range: Room temperature ~ 500℃

• Temperature control accuracy: ±0.5℃

• Adopts two-stage dry oil-free vacuum pump for vacuuming, with no pollution and no exhaust gas during operation, and no impact on materials

• The heating plate is made of imported hot work tool steel, featuring high temperature resistance, pressure resistance, uniform heating, no deformation during heating, etc.

• The heating element adopts stainless steel heating tubes, embedded installation, with no oxidation, impact resistance, corrosion resistance, safety and reliability, fast and stable temperature rise, long service life, etc.

• The temperature is controlled in multiple zones through the uniform layout of heating tubes, and real-time temperature change monitoring realizes intelligent temperature compensation

• 100 sets of process parameters can be customized, stored and called

• During operation, data collection, analysis, multi-stage judgment and correlation curve generation of products can be realized

• Products can be scanned, data extracted, and real-time data monitored to achieve dataization, intelligence and flexibility, ensuring traceability of product processing data and facilitating production quality control management

• If cooling function is required: water cooling or air cooling is recommended for room temperature ~ 250℃; oil cooling is recommended for above 250℃
