Heating temperature

RT-300℃

RT-500℃

Power

3KW

4.5KW

Pressure range

0.01-30.0T

Pressure accuracy

0.01 ton

Vacuum degree

-0.1 MPa

Display screen

7-inches Touch screen

Metal button

Silver-plated contacts, with a service life of over 100,000 cycles

Curved graph pattern

It can display the operation curve graph for each time and supports downloading Excel files via USB drive.

Process control

Up to 18 program controls, including pressure, temperature, vacuum, intake, and water cooling, can all be controlled independently.

Vacuum control

Support manual activation of the vacuum pump and intake valve. In multi-stage programs,the vacuum degree of the vacuum chamber can also be automatically controlled.

Water cooling for cooling

Support manual activation of water cooling for cooling, and automatic rapid cooling can also be achieved in multiple program segments.

Speed regulation

The boosting speed can be adjusted, and the heating speed can also be regulated.

Remote control

A computer needs to be selected and equipped. It can perform functions such as data analysis, comparison, modification, and export.

Plate size

300*300mm (M*N)

Workspace

320*70mm

Power supply

220V/110V can be customized

Size

580*680*1200mm (L*W*H)

Weight

580kg

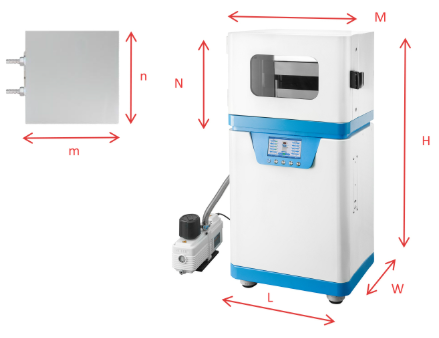

Schematic diagram of dimensions
