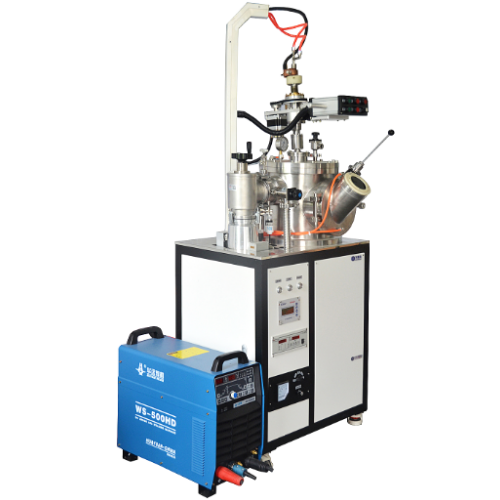

Maximum Melting Temperature

3000℃

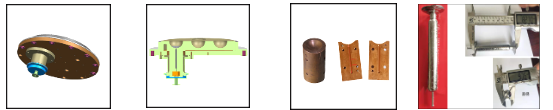

Copper Crucible

Water-cooled copper crucible with 5 stations (customizable)

Each station: hemispherical cavity, radius 25 mm (customizable)

One station equipped with suction casting device at the bottom

Vacuum Suction Casting Device

Casts metal rods: φ5 mm × L65 mm

By evacuating the copper mold, molten metal is rapidly drawn in, producing rods with minimal shrinkage porosity

Key Features

1. Front observation window + rear LED light for clear arc melting monitoring

2. Water cooling for vacuum chamber, copper crucible, and arc electrode

3. Handwheel-controlled vertical movement with flexible joystick

4. Manipulator flipping mechanism for repeated melting without breaking atmosphere

5. Small, multiple crucibles avoid cross-contamination

6. Bottom suction casting for φ5 mm metal rods

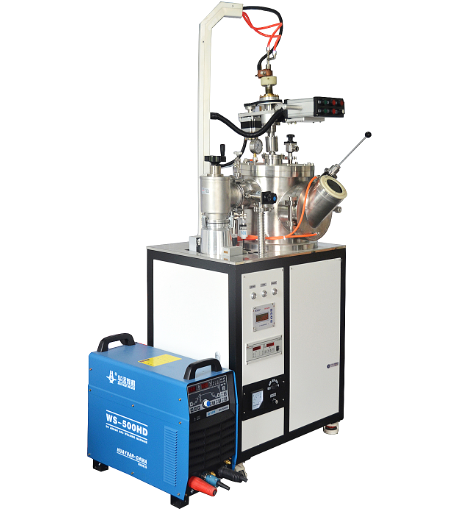

   Chamber door    Observation window             LED lighting                      Manipulator       Suction casting unit

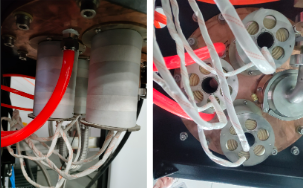

Electromagnetic Stirring

Equipped with electromagnetic stirring; three side stations supported

Principle: coil generates magnetic field to drive molten metal flow

Vacuum Chamber

Water-cooled chamber: Dia300 × 340 mm

200 mm diameter door for sample loading/unloading

80 mm diameter observation window on door

Manipulator on right for alloy ingot flipping

Operating Current

500 A

Arc Melting Cathode

Ignition: high-frequency arc striking

Manual vertical adjustment

Chamber Vacuum (Diffusion Pump, Option 2)

< 5×10⁻³ Pa

Chamber Vacuum (Turbo-Molecular Pump, Option 1)

< 5×10⁻⁴ Pa

Backfill Gases

Helium, Argon

Process Gas

High-purity Ar (5N) or 5% H₂ + 95% Ar

Pressure Rise Rate

< 4 Pa/hour

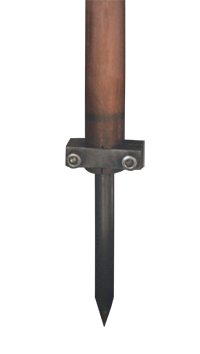

Tungsten Electrode

φ10 mm non-consumable tungsten electrode, water-cooled gun

Adjustable angle and distance (max. 80 mm)

Max. temperature: 3000℃

Sample photo shown below

Under-Voltage (Water Pressure) Protection

Yes

Vacuum Chamber Water Cooling

Yes

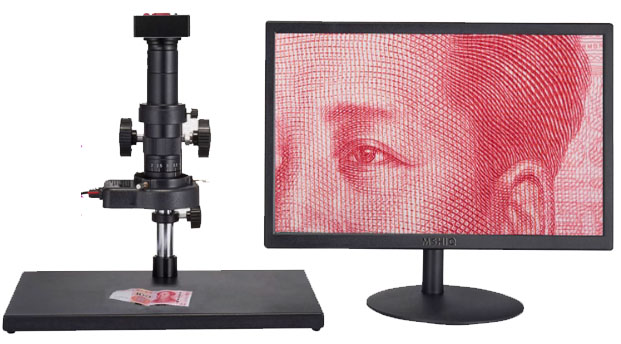

HD Camera (Optional)

HDMI output to monitor; photo, auto-focus, auto-measurement (mouse control)

1. Dual-core ARM Cortex A7 @1.3 GHz; SONY low-noise sensor

2. V5.0 measurement system, ultra-HD 4K, real-time auto-focus

3. Auto-measure: circle, ring, rectangle, polygon, parallel spacing

4. Annotation function

5. Save measurement graphics on images

6. Auto-edge detection for high precision

Infrared Pyrometer (Optional)

U.S. imported; fast response, high accuracy

24 h continuous online measurement; safe and durable

Laser sighting, stable, ideal for small high-temp targets

10 ms response, ±0.3% repeatability

Water Chiller (Optional)

CW-6100AH

Input Voltage

380 V / 220 V

Bellows

KF40 × 1000

Vacuum Gate Valve

KF40

Rotary Vane Pump BSV30

Power

0.75 kW

Voltage

380 V

Speed

1450 rpm

Inlet

KF40

Pumping speed (air)

8 L/s

Ultimate pressure

4×10⁻² Pa

High-Vacuum Manual Gate Valve

Bore

DN100

Working range

1×10⁵ Pa ~ 1.3×10⁻⁴ Pa (FKM seal)

1×10⁵ Pa ~ 1.3×10⁻⁶ Pa (bellows seal)

Leak rate

1.3×10⁻⁵ Pa·L/s (FKM)

1.3×10⁻⁷ Pa·L/s (bellows)

Compound Vacuum Gauge

Model

ZDF

Power

220 V 50 Hz 45 W

Accuracy

±1%

Measuring range

10⁻⁵ ~ 10⁵ Pa

Turbo-Molecular Pump Unit

Model

FF-100

Input

220 V

Inlet flange

DN100

Pumping speed (air)

300 L/s

Ultimate pressure

5×10⁻⁷ Pa

Cooling

Water

Water pressure

0.1–0.2 MPa

Cooling water temp

< 25℃

Water Chiller (Optional)

Power

220 V 1.75 kW

Max head

20–37 m

Rated flow

6–35 L/min

Tank volume

22 L

Cooling capacity

5.5 kW

Ports

Rp1/2''

Dimensions

526 × 645 × 1100 mm

Net Weight

375 kg (furnace 270 kg, welder 40 kg, vacuum pump 65 kg)

Installation Requirements

Furnace: 25 kW, 3-phase 380 V, 10 mm² cable, 50 A 3P breaker

Chiller: 220 V, 16 A plug
