Laboratory 3000℃ Arc Melting Furnace For Small Batch R&D
Introduction

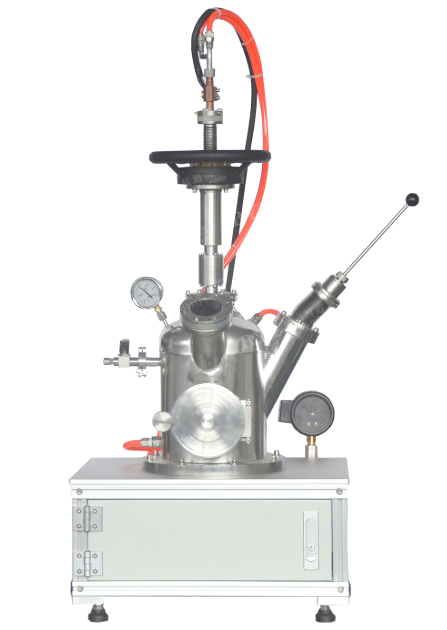

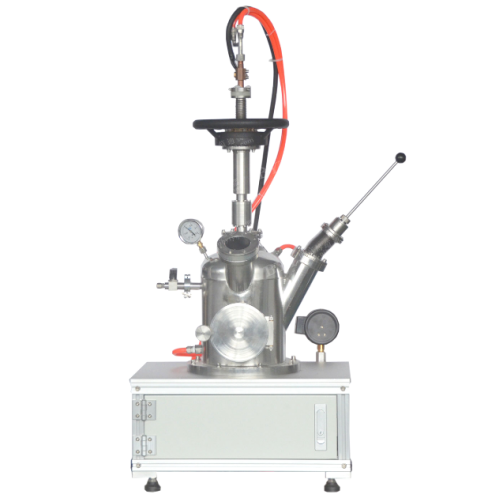

The VAF-200 metal melting furnace is a compact arc melting furnace. It allows repeated melting of alloy ingots by flipping them without breaking the protective gas atmosphere, and can prepare multiple samples simultaneously. It is an ideal device for preparing refractory metals and metal carbide samples in universities and research institutions.
Technical parameters
Model | VAF-200 |
Maximum Melting Temperature | 3000℃ |

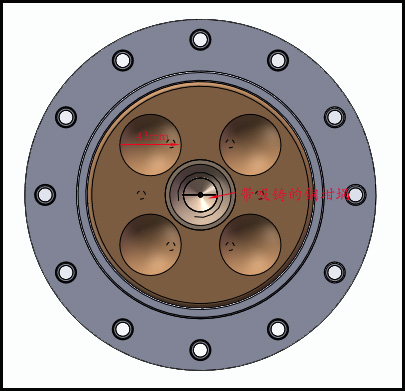

Copper Crucible | Water-cooled copper crucible with 5 stations (customizable) Each station: hemispherical cavity, radius 21 mm (customizable) One station equipped with suction casting device at the bottom
|

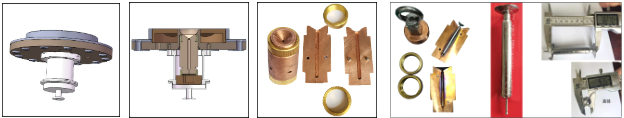

Vacuum Suction Casting Device | Casts metal rods: φ5 mm × L65 mm By evacuating the copper mold, molten metal is rapidly drawn in, producing rods with minimal shrinkage porosity
|
Key Features | 1. Front observation window + rear LED light for clear arc melting monitoring 2. Water cooling for vacuum chamber, copper crucible, and arc electrode 3. Handwheel-controlled vertical movement with flexible joystick 4. Manipulator flipping mechanism for repeated melting without breaking atmosphere 5. Small, multiple crucibles avoid cross-contamination 6. Bottom suction casting for φ5 mm metal rods Chamber door Observation window LED lighting Manipulator Suction casting unit |
Electromagnetic Stirring | Equipped with electromagnetic stirring; three side stations supported Principle: coil generates magnetic field to drive molten metal flow |
Vacuum Chamber | Water-cooled chamber: Dia182 × 225 mm 120 mm diameter door for sample loading/unloading 60 mm diameter observation window on door Manipulator on right for alloy ingot flipping |
Operating Current | 315A; Power 15KW |
Arc Melting Cathode | Ignition: high-frequency arc striking Manual vertical adjustment |
Max melting temp. | 3000℃ |
Backfill Gases | Helium, Argon |
Process Gas | High-purity Ar (5N) or 5% H₂ + 95% Ar |
Pressure Rise Rate | < 4 Pa/hour |
Tungsten Electrode
| φ10 mm non-consumable tungsten electrode, water-cooled gun Adjustable angle and distance (max. 80 mm) Max. temperature: 3000℃ Sample photo shown below
|
Under-Voltage (Water Pressure) Protection | Yes |
Vacuum Chamber Water Cooling | Yes |
Water Chiller (Optional) | CW-6200 |
Vacuum unit
Item | Specification | |
Input Voltage | 380 V / 220 V | |
Bellows | KF40 × 1000 | |
Vacuum Gate Valve | KF40 | |
Backing Mechanical Pump FX-32
| Power | 1.2 kW |
Voltage | 380 V | |
Speed | 1450 rpm | |
Inlet | KF40 | |
Pumping speed (air) | 8 L/s | |
Ultimate pressure | 4×10⁻² Pa | |
Turbomolecular Pump Unit (Optional)
| Turbomolecular Pump Model | FF-300 |
Input Voltage | 220V | |
Inlet Flange of Turbomolecular Pump | DN100 | |
Pumping Speed (L/s, for air) | 300 | |
Ultimate Pressure (Pa) | 5 × 10⁻⁷ | |
Cooling Method | Water cooling | |
Cooling Water Pressure (MPa) | 0.1-0.2 | |
Cooling Water Temperature | < 25°C | |
Water Chiller (Optional) | Power | 220 V 1.75 kW |
Max head | 20–37 m | |
Rated flow | 6–35 L/min | |
Tank volume | 22 L | |
Cooling capacity | 5.5 kW | |
Ports | Rp1/2'' | |
Dimensions | 526 × 645 × 1100 mm | |
Installation requirements
Furnace: 15 kW, 3-phase 380V, 6 mm² wire, 3-phase 32A circuit breaker; Chiller: 220V, 16A plug.
