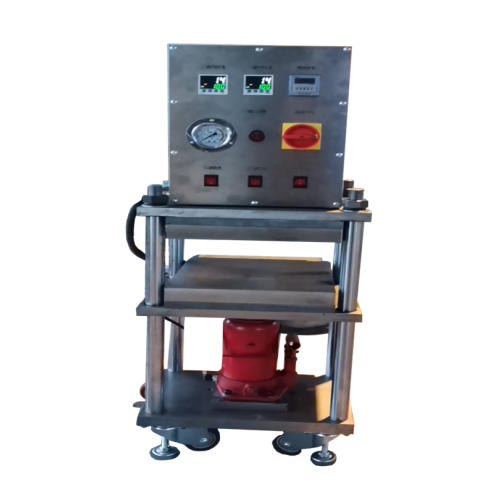

Laboratory 20T Rubber Curing Flat Press Molding Vulcanizer Machine
Introduction
The ZB-910 small-scale experimental vulcanizing machine can be used for vulcanization or molding of rubber products, plastics, composite materials and other synthetic materials, and can also be used for pressing standard test pieces for tensile, impact and other tests. This equipment features convenient operation, small floor space and low energy consumption. It is particularly suitable for use in factories and school laboratories without three-phase power supply.
Advantage
The machine is lightweight and only requires a regular single-phase power supply. Its installation and operation are relatively simple. The pressure gauge shows the pressure, which can be adjusted freely within the range of 0 to 20MPa. The thermometer shows the temperature, and the temperature within the range can be set arbitrarily.
Technical parameters
Nominal clamping force | 0.2MN (i.e., 20 tons) |
Hot plate size | 300*300mm |
Hot plate spacing | 120mm |
Number of working floors | Single layer |
Temperature range | RT-250℃ (can be customized) |
Temperature fluctuation | ±2%℃ |
Maximum hydraulic pressure | 20MPa |
Total power | 4KW |
Loading method | Manual loading |
Power Supply | 220V 50Hz |
Dimensions | 450*450*1000mm |
Net weight | Approximately 220Kg |
