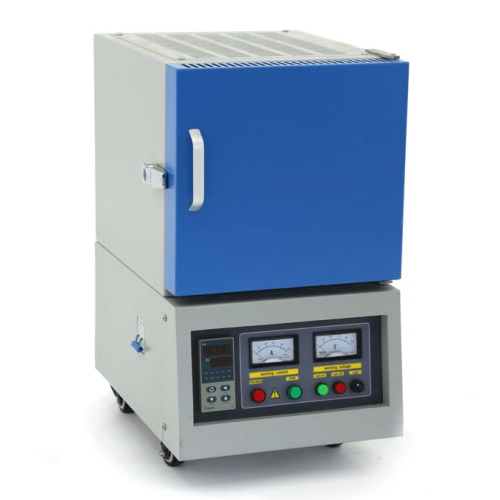

Laboratory 1700C Muffle Furnace With Optional Chamber Size
Products Description
High temperature lab muffle furnace is a small experimental electric furnace, made of high quality alumina ceramic fiberboard, heating on both sides with uniform temperature, intelligent LED 30-stage temperature controller mostly used in heat treatment sintering of metal materials and non-metal materials, dental materials.
Technical parameters
Model | SX2-2-17TP | SX2-4-17TP | SX2-9-17TP | SX2-16-17TP |
Max.design(℃) | 1700 | 1700 | 1700 | 1700 |
Internal dimensions: D x W x H (mm) | 100*100*100 | 200*150*150 | 300*200*200 | 400*300*300 |
Power(KW) | 2KW | 4KW | 9KW | 16KW |
Voltage(V) | 220V 1P | 220V 1P | 380V 2P | 380V 2P |
Volume (litres) | 1 | 4.5 | 12 | 16 |
External dimensions: Dx W x H (mm) | 425*320*568 | 570*470*815 | 670*530*906.2 | 770*620*1055 |
Thermocouple type | B | |||
Heating rate | 0-10C/min | |||
Temp.Precision | ±1℃ | |||
Furnace structure | Double-layer air-cooled structure, surface temperature is less than 60℃ | |||
Temperature controller | Intelligent PID temperature control instrument,30 program segments,SSR control, PID parameter self-tuning function; program temperature rise, program heat preservation, program cooling | |||
Standard Accessories Thermal gloves | Crucible Tongs | Thermocouple | Furnace Door Block | User Manual |Tools | | ||||
Certification: CE, ISO, SGS ect, more than 30 patent certifications | ||||
Warranty: One-year warranty (excluding wearing parts) and long-term technical support | ||||
Optional: Different chamber size for your choose; 50 segment program for choose LCD touch screen control for choose RS485/USB port to connect computer for choose. Chimney, door opening method, air intake hole, observation window, etc. are optional. | ||||
