Laboratory 15T Manual Hydraulic Hot Press Machine With Cylindrical Heating Mold
Application
We are specialized in the production of powder tablet press and mold manufacturers, our tablet press small size, large pressure, high pressure control precision, has been used in scientific research, teaching, testing, pharmaceutical, catalysis, chemical and other industries, in addition to this product can also be used with Fourier infrared spectrometer, fluorescence spectrum supporting sample preparation, can replace similar imported products.
Technical parameter
Mold heating temperature | RT-300℃ | RT-500℃ |
Power | 0.3KW | 0.5KW |
Pressure range | 0-15T | |
Piston diameter | Chrome-plated cylinder φ80mm (d) | |
The overall structure of the main body | The main body is an integrated sealed structure | |
Constant temperature time | 1 second to ∞ seconds | |
Temperature control accuracy | 0.1℃ | |
Heat insulation method | Imported heat insulation board | |
Cooling method | Water-cooled rapid cooling [Water-cooled machine selection] | |
Mold cavity dimensions | Inner hole <20mm [Customized enlarged size is also available] | |
Power supply | 220V/110V can be customized | |

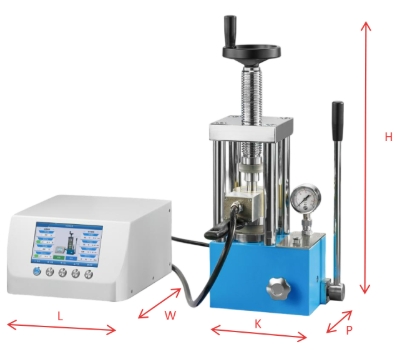

Thermostat (Size/Net weight) | 490x395x235 mm(LXWXH)/9.5 kg | |
Tablet press (Size/Net weight) | 245x175x415 mm(KXPXH)/60kg | |
Water-cooler machine (Size/weight) | 550 x340 x430mm/11kg | |

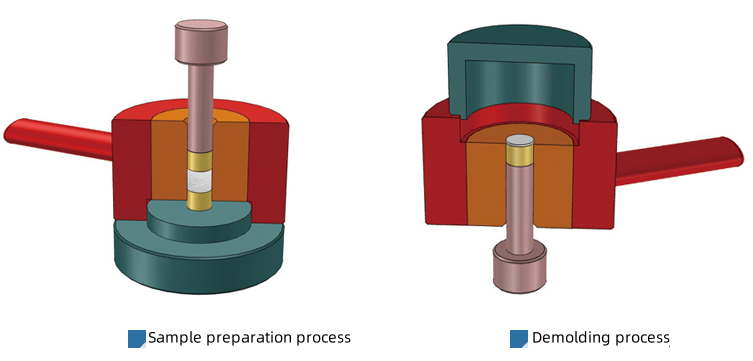

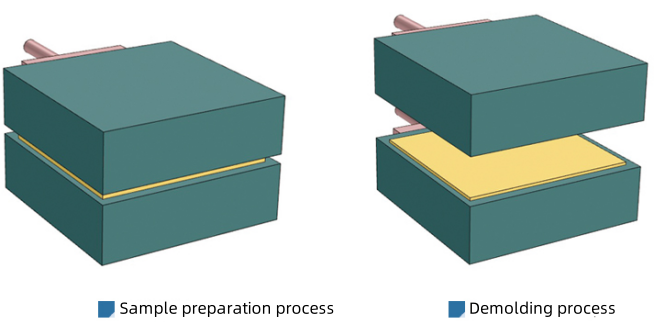

Structure |  | |
