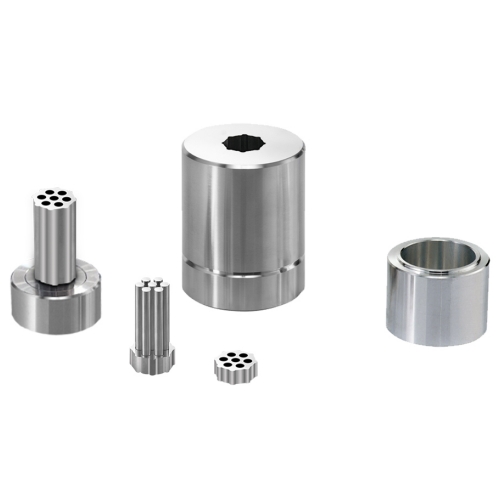

Lab Hydraulic Press Customized Special Shape Die Set For Powder Pellet Pressing
Introduction
Special-shaped molds are mostly used in the catalytic industry or for the forming of some samples with holes. Square or multi-hole samples can also be customized. The outer diameter size of the pressed sheet: 3 to 40mm in diameter. Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMT |
Press the shape of the sample |  |
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | φ5-40mm (M) |
Cavity depth | 30-40mm (N) |
Overall dimensions | Φ43*73mm (L*H) |
Mold weight | 1.5kg |

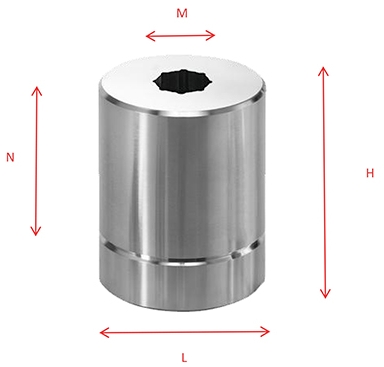

Schematic diagram of dimensions |  |
