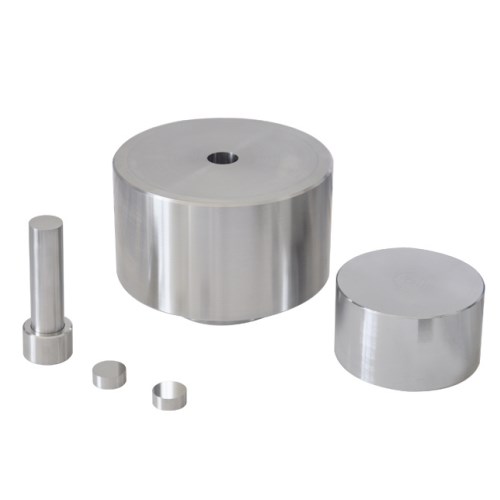

Lab Hydraulic Press Anti-cracking Die Set For Ultra-high Pressure Tablet Pressing
Introduction
Anti-cracking molds are mainly designed for situations where the mold is prone to cracking during tablet pressing due to ultra-high pressure or overly deep cavity dimensions. Tablet pressing dimensions: 3-20mm. Product tablet thickness: 10-40mm; Bulk powder height: up to 80mm; Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PML |
Press the shape of the sample |  |
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | Φ6/8/10/15/20mm (M) |
Cavity depth | 40mm (N) |
Overall dimensions | Φ98*120mm (L*H) |
Mold weight | 5kg |

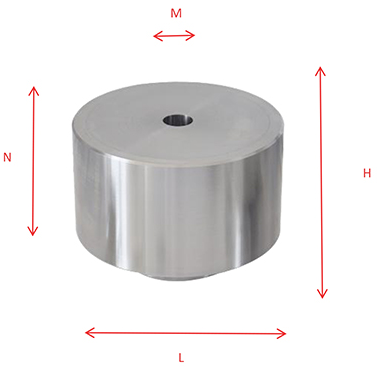

Schematic diagram of dimensions |  |
