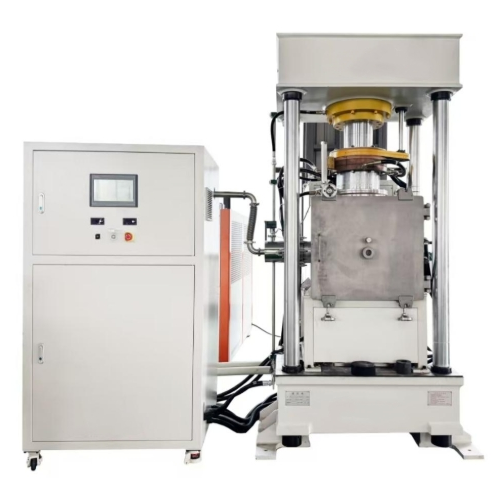

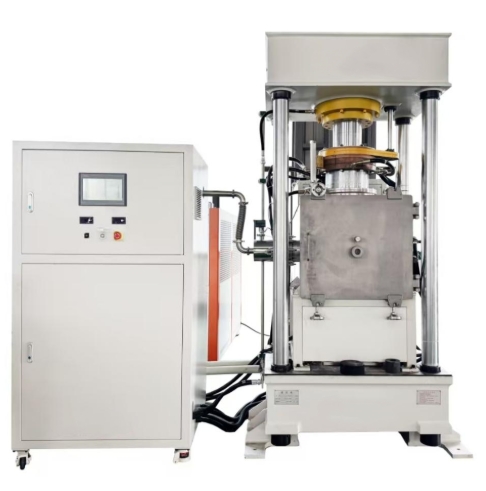

Industrial 2200C High Temperature Rapid Hot Pressing Sintering Furnace With Vacuum Function
Specification
Heating Method: Electric field-assisted
Rated Power: 300 kW
Output DC Current: 0–30,000 A
Output DC Voltage: 0–10 V
Temperature Measurement Configuration: Temperature control via K-type thermocouple and 700–2400°C infrared pyrometer. The infrared pyrometer is equipped with a fixed bracket with fine-adjustment capability.
Operating Temperature: Room temperature to 2200°C
Vacuum System: Ultimate vacuum ≤ 10 Pa; without samples loaded, time required to evacuate to 10 Pa starting from vacuum release ≤ 10 min.
Working Atmosphere: Suitable for hot pressing under vacuum or one-way protective atmosphere (argon, or inert gases such as high-purity nitrogen).
Vacuum Chamber: Made of 304 stainless steel.
Maximum Heating Rate: ≥ 500°C/min
Pressing System: Maximum force 2000 kN
Pressure Accuracy: Control accuracy ≤ ±1000 N
Displacement Accuracy: Press head stroke control accuracy ≤ 0.02 mm
Sample Size: Φ60–200 mm
