C-Frame 30T Servo Hydraulic Press For Metal Parts Stamping
Specification
Item | Unit | Model | |||||
JLC1-10T | JLC1-20T | JLC1-30T | JLC1-40T | JLC1-50T | |||
Rated Force | KN | 100 | 200 | 300 | 400 | 500 | |
Maximum Working Pressure | MPa | 13 | 21 | 19 | 20 | 20 | |
Main Cylinder Rated Force | KN | 100 | 200 | 300 | 400 | 500 | |
Main Cylinder Maximum Stroke | mm | 200 | 250 | 300 | 350 | 350 | |
Maximum Opening Height | mm | 380 | 400 | 450 | 550 | 550 | |
Moving Crossbeam Speed | Idle Downward | mm/s | 300 | 280 | 250 | 210 | 205 |
Pressurization | mm/s | 40 | 35 | 20 | 25 | 22 | |
Return | mm/s | 280 | 270 | 230 | 200 | 200 | |
Upper Table Dimensions | Left-Right (Edge) | mm | 350 | 350 | 400 | 450 | 450 |
Front-Rear (Edge) | mm | 250 | 250 | 300 | 250 | 250 | |
Upper Die Shank Dimensions | mm | Φ32*50 | Φ38*60 | Φ50*70 | Φ50*70 | Φ50*70 | |
Lower Table Dimensions | Left-Right (Edge) | mm | 500 | 550 | 600 | 700 | 700 |
Front-Rear (Edge) | mm | 320 | 380 | 460 | 500 | 500 | |
Overall Dimensions | Left-Right | mm | 900 | 940 | 960 | 820 | 820 |
Front-Rear | mm | 600 | 1040 | 1080 | 1350 | 1540 | |
Height | mm | 2000 | 2020 | 2415 | 2150 | 2200 | |
Motor Power | kw | 3.75 | 3.75 | 5.5 | 5.5 | 5.5 | |
Machine Weight (Approx.) | kg | 800 | 850 | 2350 | 2480 | 2610 | |
Hydraulic Oil Volume (Approx.) | L | 80 | 80 | 120 | 130 | 130 | |

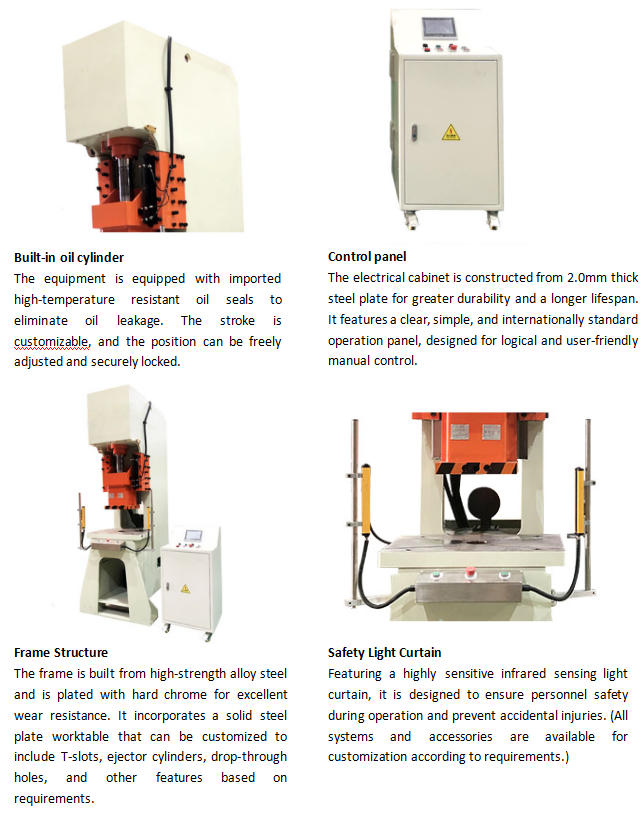

Highlights

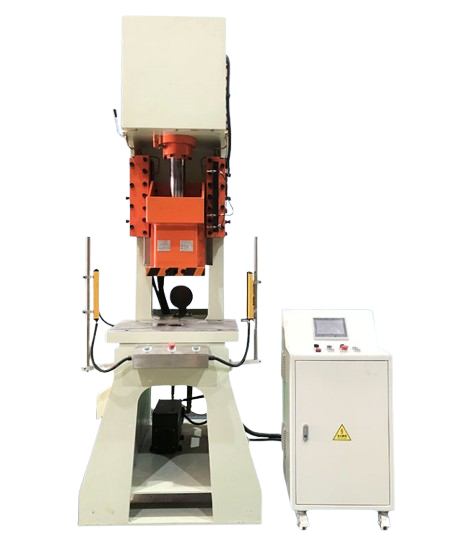

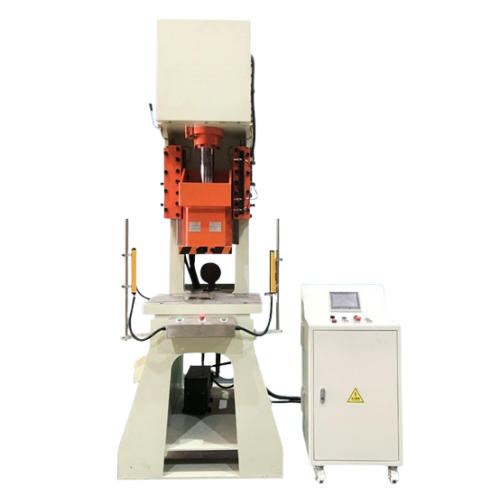

Picture for reference
