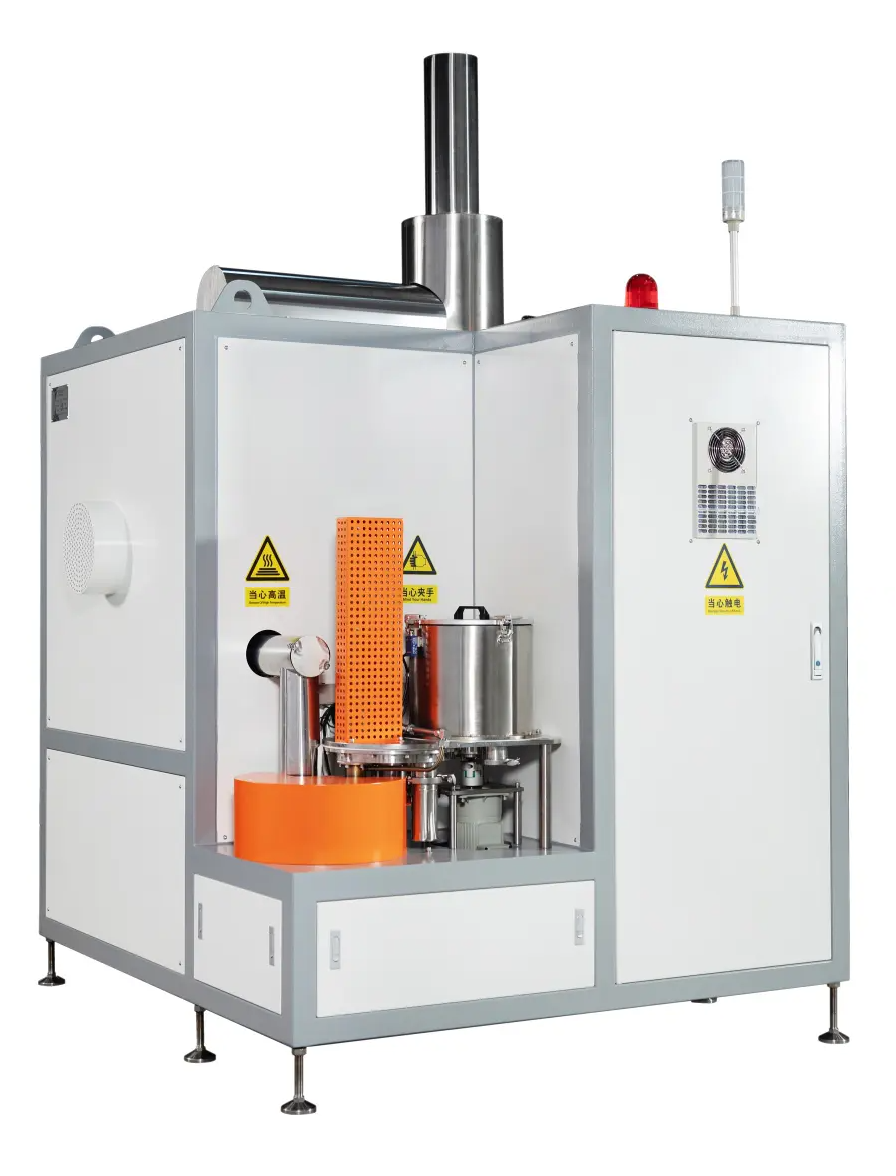

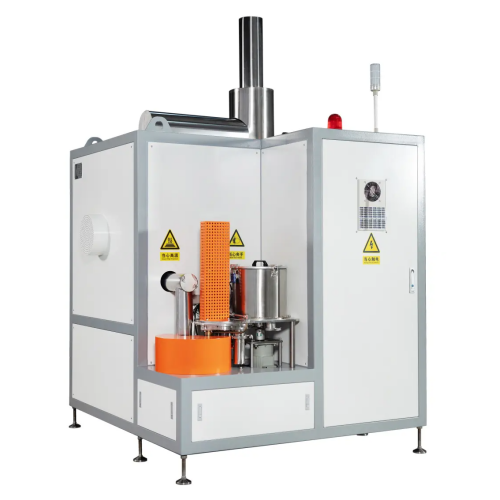

Vertical 400L Oxalic Acid Catalytic Debinding Furnace
Introduction
Catalytic debinding for conventional active metal materials that are easy to be oxidized, which is more energy-saving, safer operation environmental-friendly, and the exhaust gas can be directly discharged.
Specification
Model No: 800K
Working temperature: 110-140°C
Dimension: L2046xW1769xH2718 mm
Available working size: L414xW454xH1006 mm
Chamber dimension: φ700x1202mm
Standard cycle ti: 4-6 h
Oxalic acid consumptio: 150-300 g/h
Acid feeding mode: Continuous controlled acid feeding
Nitrogen consumption: 3.5-4.5 m3/h
Total weight: 2000 kg

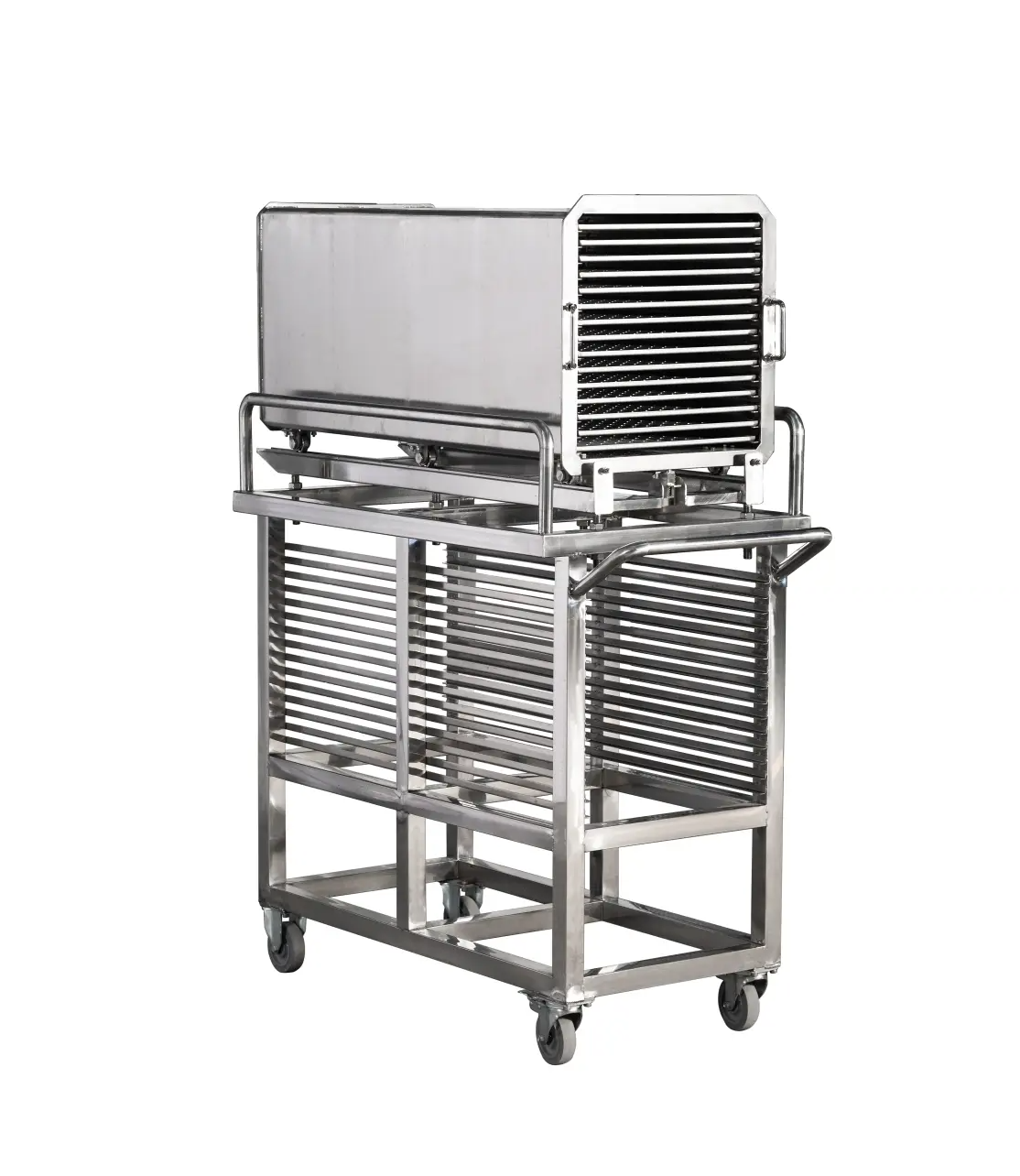

Feeding mode: By transfer cart
Combustion mode: Electrothermal combustion
Exhaust gas: CO2and H2O(Non-pollution)
