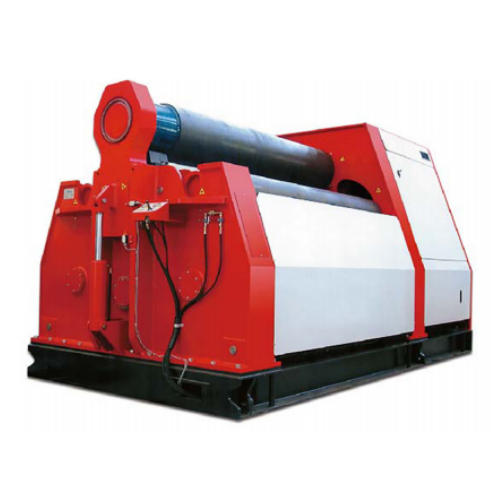

T6-100mm Full-hydraulic 4-Roller Rolling Machine With Optional NC/CNC System
Features
W12 series four-roller plate rolling machines have a mechanically powered upper roller and pneumatic-powered lower roller and side roller and are operated by centralized electric control. lt can complete the pre-deformation of both ends of the plate and the rolling of drum and arch type workpieces by only one feeding. lt is capable of certain shaping and leveling and also of direct pre-bending which is both work saving and material saving.
Technical parameter
Specification can be customized as your actual needs!
Model | Unit | W12-6x2000 | W12-6x2500 | W12-8x2000 | W12-8x2500 | W12-12x2000 | W12-12x2500 |
Max. Pre-bending thickness | mm | 6 | 6 | 6 | 6 | 10 | 10 |
Max. Rolling thickness | mm | 6 | 6 | 8 | 8 | 12 | 12 |
Max. Rolling width | mm | 2000 | 2500 | 2000 | 2500 | 2000 | 2500 |
Plate yield limit | mpa | 265 | 265 | 265 | 265 | 265 | 265 |
Rolling speed | M/min | 5.5 | 5 | 5 | 5 | 5 | 5 |
Dia of upper roller | mm | 180 | 210 | 215 | 230 | 260 | 280 |
Dia of lower roller | mm | 180 | 210 | 215 | 230 | 260 | 280 |
Dia of side roller | mm | 145 | 165 | 165 | 180 | 200 | 220 |
Motor power | KW | 5.5 | 7.5 | 11 | 11 | 18.5 | 18.5 |
