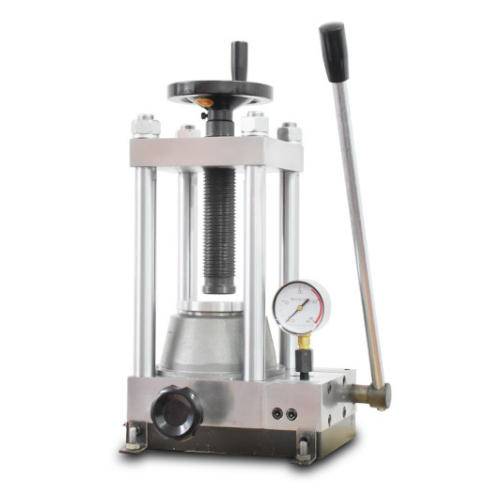

Small Manual Type Hydraulic Press Can be Used With XRF Analysis
Introduction
FY Manual Tablet Press and FDY Electric Tablet Press are widely used in various fields such as new materials, powder ceramics, new power sources, and building materials. They can be paired with analytical instruments such as calcium-iron analyzers, infrared spectroscopy (IR), and X-ray fluorescence (XRF) analyzers. Using specific molds, they can press various shapes of tablets, cylinders, irregular bodies, and composite structures for scientific research. They are widely applicable, simple, convenient, and reliable to use.
Features
1. Rapid pressure application and quick demolding, safe and reliable.
2. High pressure capacity with excellent stability.
3. No oil leakage and pollution-free operation.
4. Easy maintenance with an out-of-box qualification rate of 98%.

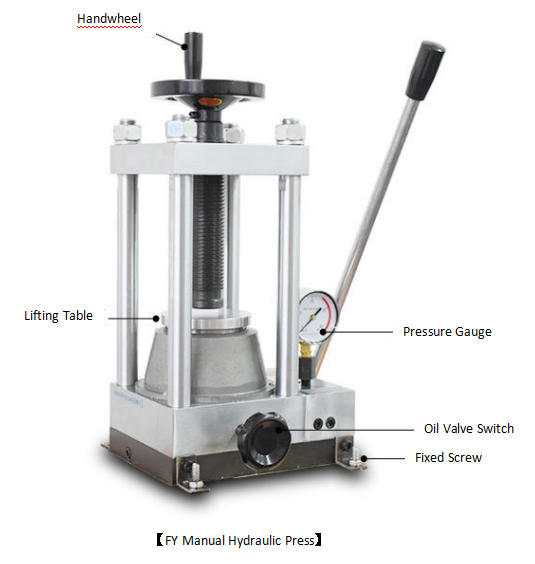

FY-15 manual tablet press (hydraulic press)
It can be widely used in new materials, superconductors, powder ceramics, new power suppliers, building materials and other fields.
It can be used with calcium iron analysis, infrared spectroscopy (IR) and X-ray fluorescence (XRF) analysis instruments.
With a specific mold, it can be pressed into various pieces columns, special-shaped bodies, assemblies, etc, for scientific research.
It is widely used, simple, convenient and reliable.
Technical parameters
Model | FY-15 | FY-24 | FY-30 |
Pressure Range (T) | 0-15 | 0-24 | 0-30 |
Gauge Pressure (MPa) | 0-25 (250kgf/cm*cm) | 0-40 (400kgf/cm*cm) | 0-30 (300kgf/cm*cm) |
Cylinder Stroke (mm) | 0-20 | 0-20 | 0-20 |
Pressure Stability (MPa/10min) | ≤1 | ≤1 | ≤1 |
Motion Mode | With rapid pre-tensioning and pressurization (in manual mode) | With rapid pre-tensioning | With rapid pre-tensioning |
Working Space (mm) | 160*160*150 | 105*105*150 | 155*100*180 |
Overall Dimensions (mm) | 270*200*450 | 270*200*450 | 320*200*520 |
Weight (Kg) | 30 | 34 | 45 |

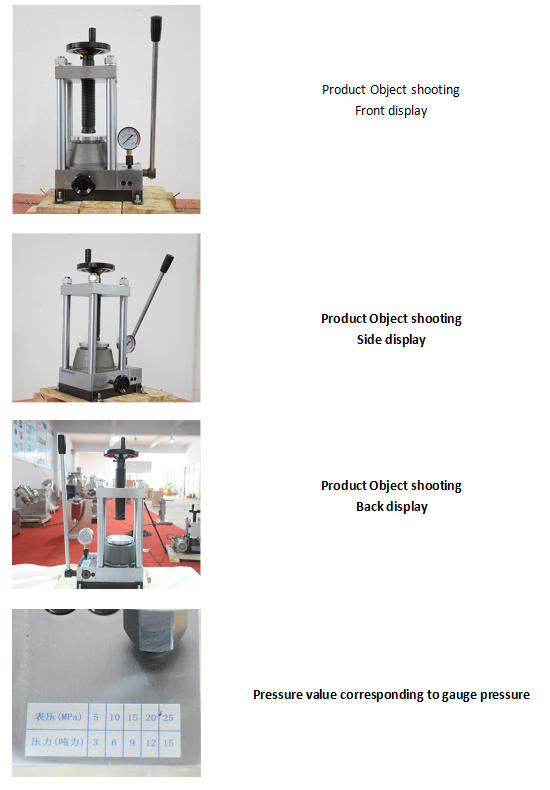

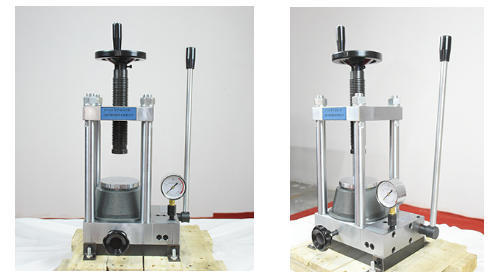

Details
