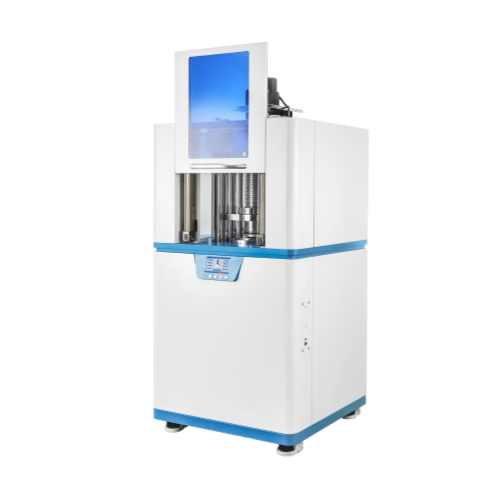

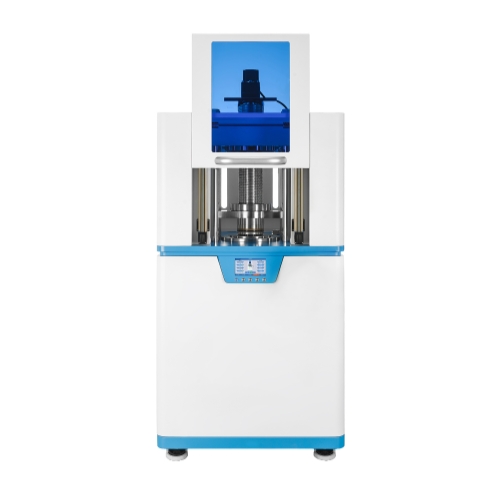

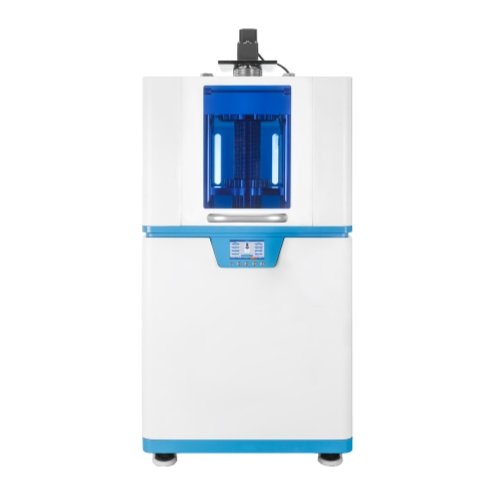

Laboratory Dia100-200mm Large Diameter CIP Cold Isostatic Press For Powder Metallurgy
Specification
Instrument model | PP-CIP |
Effective inner diameter of working | 100/120/150/200 mm |
Effective working depth | 150/200/250mm |
Max working chamber pressure | 100MPa/200Mpa/300Mpa |
Ambient temperature | 5-35℃ |
Installation Method | Indoor floor installation |
Oil tank | Easy oil replenishment for oil tank |
Control interface | PLC + Touch Screen + Function & Emergency Keys |
Pressure rise rate | Speed adjustable |
Process parameters | Multi-group storable |
Stage pressure rise | Adjustable pressure hold,min.10 stages |
Pressure holding time | Adjustable (O-9999s) |
Product Dimensions | 980 x 980x2100 mm (L X WXH) |
Weight | 2500 kg |

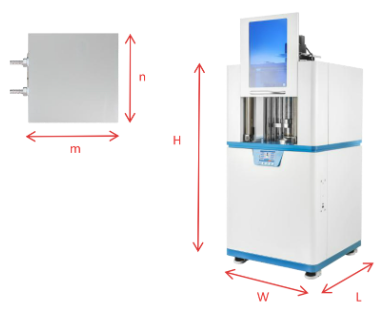

Diagram |  |
