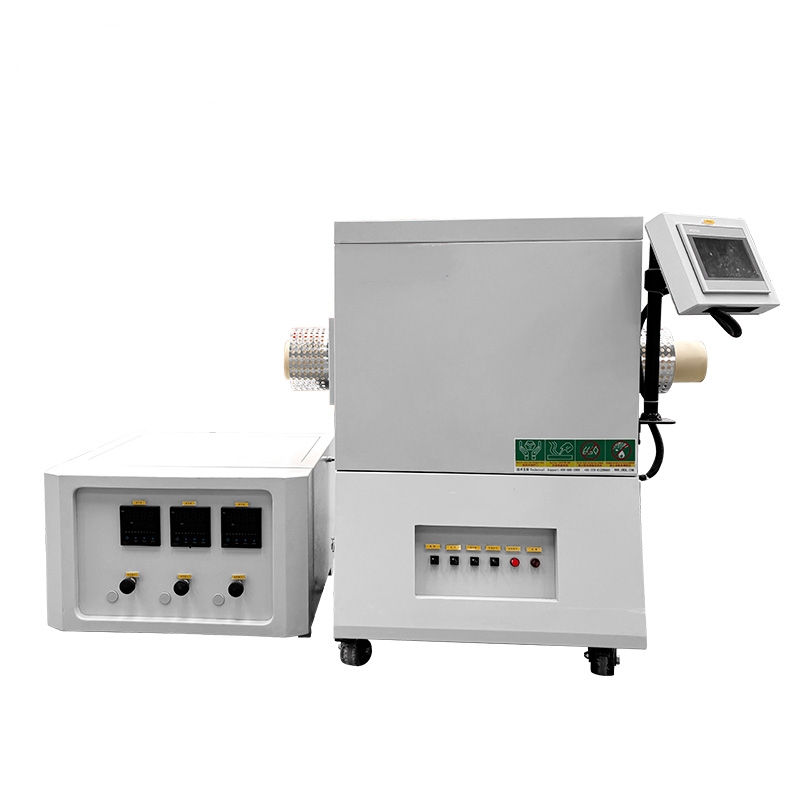

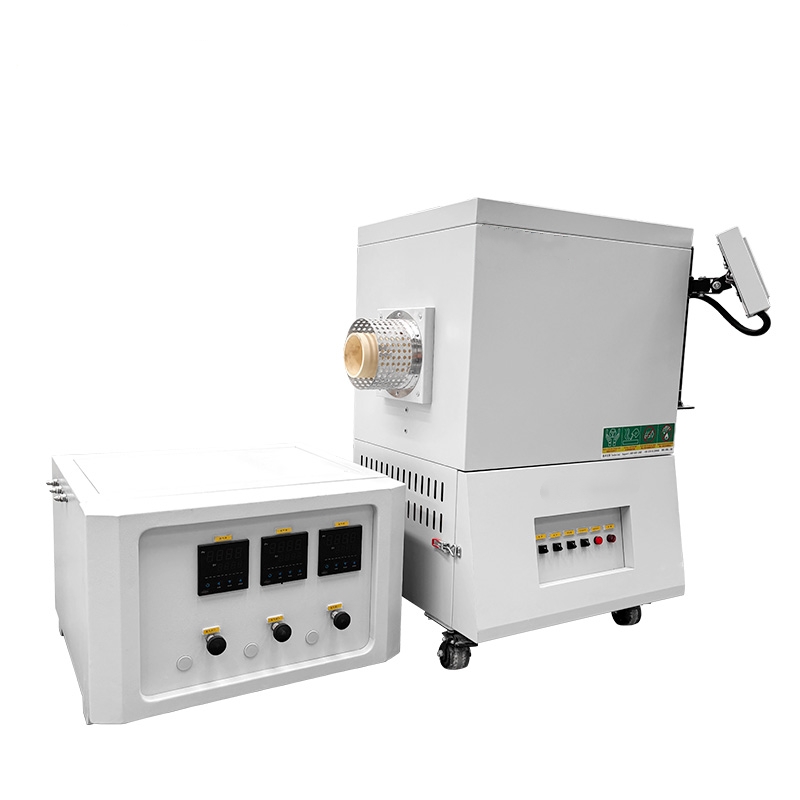

Laboratory Customized 1050C CVD Tube Furnace For Ceramic R&D
Applications
Widely used in ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development, special materials, building materials, and other fields.
Features
Control accuracy: ±1°C; furnace temperature uniformity: ±1°C (depending on heating chamber size).
Easy operation: Programmable, PID auto-tuning, automatic heating, automatic soaking, automatic cooling – unattended operation. Optional computer communication via RS485/RS232/USB for furnace operation (start, stop, pause, set temperature profile, store profile, historical curves, etc.). Software is provided free of charge – see computer control system.
Furnace tube material: 99% alumina ceramic tube.
KF metal flange sealing (stainless steel, double O-rings).
Furnace body temperature near room temperature.
Dual-loop protection.
Imported refractory material – good thermal insulation, high temperature resistance.
Vacuum degree: -0.1 MPa.
Compatible with multiple gases (oxygen, nitrogen, ammonia, hydrogen, etc.).
Technical Specifications
Item | 1050°C Model | 1250°C Model | 1450°C Model |
Maximum Temperature | 1050°C | 1250°C | 1450°C |
Continuous Working Temperature | ±1°C | ±1°C | |
Furnace Tube Material | Stainless steel tube / Alumina tube | Stainless steel tube / Alumina tube | Alumina tube |
Rotation Speed | 1–10 r/min adjustable | 1–15° (Note: likely 1–15 r/min or tilt angle) | 1–15° |
Furnace Temperature Uniformity | For higher uniformity, multi-zone control available | For higher uniformity, multi-zone control available | For higher uniformity, multi-zone control available |
Temperature Sensor & Range | Nickel-Chromium Nickel-Silicon 0–1350°C | Nickel-Chromium Nickel-Silicon 0–1350°C | Platinum-Rhodium 0–1700°C |
Programmable Segments | One set: 22 segments; three sets: 50 segments; two sets: 8 segments | One set: 22 segments; three sets: 50 segments; two sets: 8 segments | ≤45℃ |
Computer interface | RS485 RS232 USB | ||
Warranty & Coverage | One-year free warranty for the furnace. Heating elements and furnace tubes are not covered (heating elements damaged naturally within three months are replaced free of charge). | ||
Standard Accessories | Two heating elements, two electrode rod sets, one instruction manual, one certificate of conformity, one insulating brick for furnace door, one pair of crucible tongs, one pair of high-temperature gloves, one crucible (specific for tube furnace), two sealing O-rings. | ||
Gas Control Cabinet
Feature | Description |
Gas Inlet Types | 2 types (optional: 1–10 types) |
Gas Mixing | By adjusting each inlet flowmeter |
Valves | Imported stainless steel valves (standard / stainless steel / solenoid valve optional) |
Flowmeters | Two units: 0–300 mL/min each (mass flow meter, float-type flowmeter, etc., optional depending on gas inlet number) |
Pressure Monitoring | One dual-indicator (positive/negative pressure) dial pressure gauge (digital vacuum gauge optional) |
Vacuum Pump | Two-stage rotary vane vacuum pump |
Gas Lines | Dedicated PV hose for gas (clean stainless steel tubing available depending on gas requirements) |
Pressure Protection | System designed to prevent danger caused by closed exhaust port, blocked exhaust port, or excessive furnace tube pressure. Principle: signal from electric contact pressure gauge or pressure sensor drives the control module to close the solenoid inlet valve, activate the solenoid exhaust valve and alarm – thus protecting normal furnace operation. |
Gas Leak Alarm | Detects hazardous gas leaks (indoor air). When the concentration of toxic/flammable/explosive gases exceeds a set limit, the control module shuts down the furnace, closes the gas inlet, opens exhaust and ventilation – providing a safer working environment. |
