Mold Heating Temperature

RT-300C

RT-500C

RT-800C

Power

1.6KW

2KW

4.5KW

Pressure Range

0.01-5.0 T

Pressure Accuracy

0.01T

Vacuum Degree

-0.1 Mpa

Display Screen

7-inches Touch Screen

Metal key/button

Silver-plated contacts,with a service life of over 100,000 cycles

Curved graph pattern

It can display the operation curve graph for each time and supports downloading Excel files via USB drive.

Process Control

Up to 18 program controls, including pressure, temperature, vacuum intake, and water cooling, can all be controlled independently.

Vacuum Control

Support manual activation of the vacuum pump and intake valve. In multi-stage programs, the vacuum degree of the vacuum chamber can also be automatically controlled.

Water cooling for cooling

Support manual activation of water cooling for cooling, and automatic rapid cooling can also be achieved in multiple program segments.

Speed Regulation

The boosting speed can be adjusted, and the heating speed can also be regulated.

Remote Control

A computer needs to be selected and equipped.It can perform functions such as data analysis,comparison,modification,and export.

Plate Size

120x120mm (m X n)

Working Space

130x55mm

Hatch Size

300x200mm (M X N)

Power Supply Power

220v/110v Customizable

Vacuum Pump Size/Weight

490x230x340 mm /14 kg

Product Dimensions/Weight

480x560x750 mm (L X W X H)/280 kg

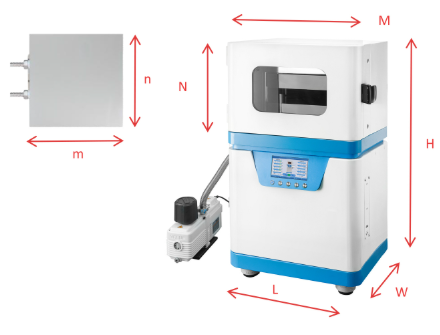

Diagram of press
