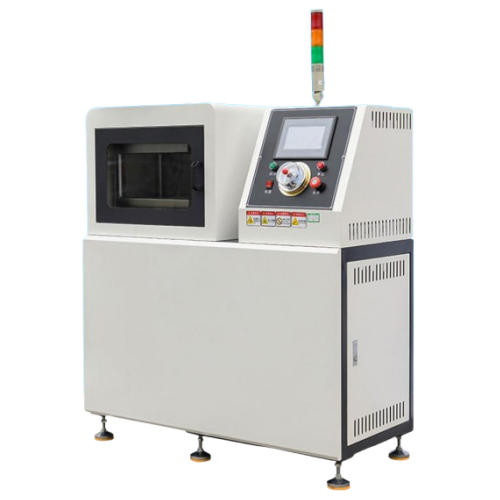

Laboratory 30T Rubber Flat Vulcanizing Molding Press Machine

Introduction

The 6014A-30 vulcanizing machine is suitable for hot press forming, vulcanized sample preparation, and the production of press-in products. Examples include: hot stamping forming of concave-convex surfaces such as membrane switches and speaker adhesive films, hot bonding and pressing of thin adhesive sheets, and press-in molding of electrical products, among others. It is particularly well-suited for forming, press-fitting, and assembling various products in industries such as plastic products, labels, drip-coated items, electronics, packaging and printing, and textile mills.

Scope of Application

- Hot stamping forming of concave-convex surfaces such as membrane switches and speaker adhesive films.

- Pressing plastic pellets into thin sheets for testing, and hot bonding and pressing of thin adhesive sheets.

- Suitable for the production of large-area hot-formed products.

Features

Equipment Main Body: The main body of the equipment adopts seamless welding technology.

Exterior Finish: The exterior is treated with high-temperature baking paint for rust prevention.

Heating Platens: The upper and lower heating platens are made of quenched tool steel, offering rust resistance, wear resistance, and high hardness.

Platen Parallelism: Parallelism of the upper and lower heating plates is within 0.1 mm.

Temperature Uniformity: Temperature uniformity is maintained within ±1°C.

Adjustable Pressure: The pressure is adjustable.

Programmable Controller: Features a factory-developed programmable logic controller.

Delta PLC Touchscreen: Utilizes a Delta PLC touchscreen (Taiwan) for more convenient, faster, and more visually appealing operation.

Program-Controlled Testing: Enables programmable control of tests, yielding more specific and realistic experimental data.

Technical parameter

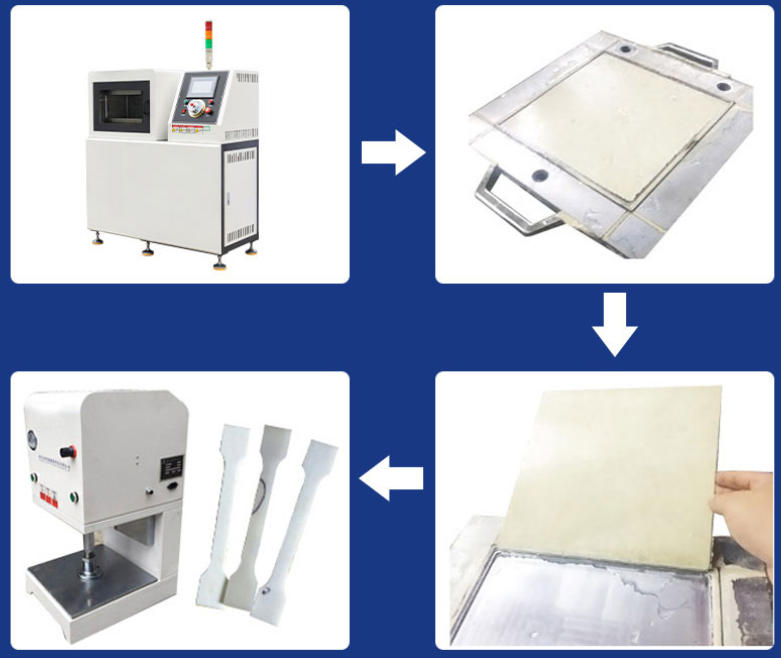

Working Flowchart

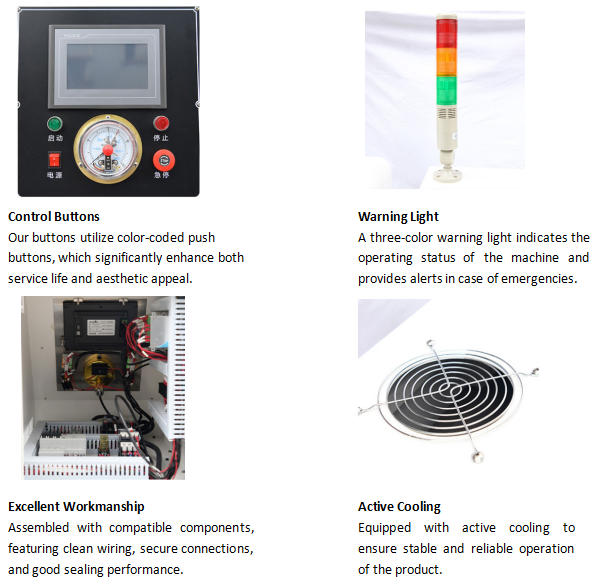

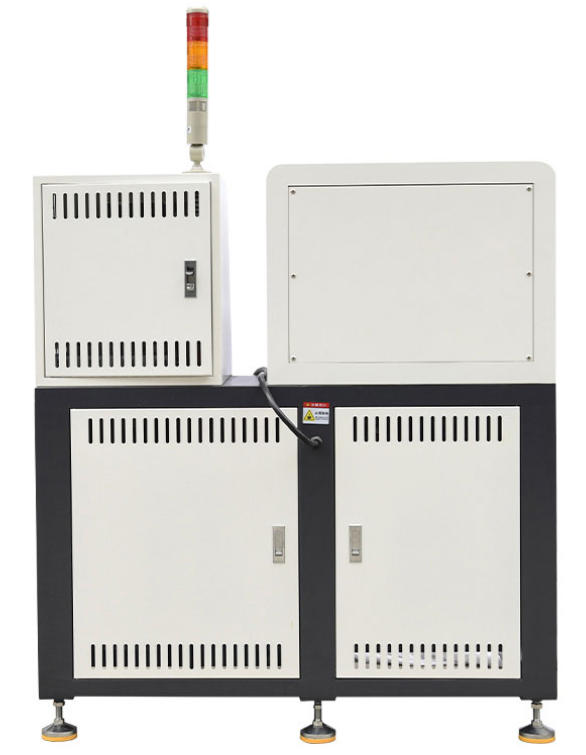

Details
