Laboratory 30T Automatic XRF Hydraulic Press Machine for Powder Pellet Making
Technical parameters
Parameters | Technical Parameters |
Instrument model | PP-30X |
Pressure range | 0-30 tons |
Pressure display accuracy | 0.01 tons |
Process Control | The program control reaches up to 18 steps |
Curved graph pattern | It can display the operation curve graph for each time and supports downloading Excel files via USB drive |
Speed Regulation | The boosting speed can be adjusted |
Remote Control | A computer needs to be selected. It can be used for data analysis, comparison, modification, export and other functions |
Liquid Crystal Display (LCD) | 7-inch (IPS high-definition) touch screen |
Metal key/button | Silver-plated contacts, with a service life of over 100,000 cycles |
Mold size | φ40mm / φ32mm (1 set of built-in molds) |
Types of molds | Boric acid / Steel ring / Plastic ring / Aluminum ring |
Mold material | Stainless steel 440C tool steel |
Demolding method | The cantilever structure of the upper plate enables more convenient automatic demolding operation |
Pressure safety | The device is equipped with automatic pressure overload protection |
Limit Switch | The oil cylinder automatically releases pressure when it reaches the limit height |
Equipment power supply | 500W (220V / 110V customizable) |
Product Dimensions / Net | 250 x 390 x 460 mm (L x W x H) / 120 kg |

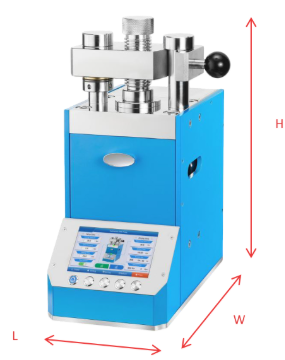

Diagram of press |  |
