Laboratory 10/30/50 Ton Hydraulic Vacuum Flat Vulcanizing Press Machine For Rubber Forming
Overview
This series of plate vulcanizing machines is designed as a primary equipment for molding both shaped and non‑shaped rubber products. It is also suitable for pressing various thermosetting plastics and foam rubber/plastic products. Equipped with an independent power mechanism and electrical system, the machine adopts centralized push‑button control. Both working pressure and heating temperature can be adjusted within a specified range. The machine is available in manual and semi‑automatic versions.
Heating Plate Features
Constructed from imported high‑temperature‑resistant steel, the surface is treated with deep carbonization and hard chrome plating, offering fast heat transfer, rapid cooling, corrosion resistance, high hardness, and minimal deformation. The rear side incorporates built‑in heaters and temperature sensors, providing high power, quick heating, sensitive and uniform temperature detection, and a narrow temperature error range.
Guide Pillars
Four hardened and precisely positioned pillars, together with hydraulic cylinders, are supported by a thick steel‑plate base of the entire control cabinet, forming the hydraulic platform. The platform slides smoothly and quietly on self‑lubricating bronze bearings. The top and rear of the press are enclosed by heavy‑duty steel plates, offering additional safety protection for operators. The upper plate is made of steel and includes an insertion‑type thermocouple near the surface.
Technical parameters
Model | 6014F-10 | 6014F-30 | 6014F-50 |
Pressure capacity | 10T | 30T | 50T |
Pressure gauge | The dual-node pressure is adjustable, with a pressure regulation accuracy of 10% | ||
Plate size | 250*250 / 300*300 / 350*350 / 400*400 / 450*450 / 500*500 / 600*600 (mm) | ||
Heating plate material | High-temperature resistant imported steel plate, surface carbonized and quenched, special treatment for fast heat conduction, no deformation under parallel pressure, wear-resistant. | ||
Plate hardness | 50-60HRC | ||
Plate Flatness | 0.03mm | ||
Plate Parallelism | ≤0.16mm | ||
Vacuum degree | -0.08 MPa (limit up to 0.09 MPa) | ||
Vacuum cover stroke | 50 mm (customizable for special requirements) | ||
Temperature range | Room temperature - 250°C (customizable up to 500°C) | ||
Temperature Uniformity | ±2.5°C (temperature uniformity decreases with larger platens) | ||
Temperature controller | Precise module, controlled via PLC touchscreen with numerical display on the screen. | ||
Temperature control method | Temperature control mainboard ensures precise control, featuring self-tuning and high-precision sensors; temperature control and display accuracy: ±0.1°C. | ||
Timer | Display and settings on the touchscreen, with time range adjustable from 0.1 s to 99 min to 9.9 hr. | ||
Heater | Built-in cylindrical heating elements in the mold (power configured according to platen area to ensure temperature uniformity; power varies by model). | ||
Heating time | Approximately 15 min from room temperature to 160°C. | ||
Heating plate * 2 | Each heating plate can be set and controlled independently for temperature. | ||
Heating method | Electric heating | ||
Cooling method | Natural cooling (tap water cooling available as an option). | ||
Hydraulic press system | Utilizes the KH-6 hydraulic flow closed-loop control system, driven by an oil pump. Combines high-performance electro-hydraulic components with a high-precision, low-resistance cylinder piston to execute constant-speed control mode. Features automatic pressure compensation, automatic pressure replenishment in a single press, strong load capacity, and smooth lifting/lowering: automatic pressurization, pressure holding, and pressure release. | ||
Oil cylinder stroke | Max 150 mm (customizable). | ||
Oil cylinder rate | 11 mm/s. | ||
Pressure gauge | 0–200 kg/sq.cm. | ||
Opening mold method | Fully automatic rise and descent (with dual manual/automatic functions). | ||
Safety device | Safety guard and safety door. | ||
Qty of safety device | 4 pcs | ||
Optional frame (optional) | Customizable | ||
Air source | 0.5-0.7mpa | ||
Dimension (mm) | W1100*D550*H1500 | W1100*D650*H1500 | W1200*D750*H1650 |
Power supply | Single phase, AC220V | 3 phases, AC380V | 3 phases, AC380V |
Weight | About 550kg | About 850kg | About 1.2T |
Operating Procedure of the Testing Machine
1. First, level the testing machine by placing a level gauge on the machine base. Adjust the foundation screws according to the level indicator until the machine is perfectly horizontal (perform this adjustment when installing or relocating the machine).
2. Turn on the main power switch to supply electricity to all control panels of the machine.
3. Set the required test temperature.
4. Based on the sample requirements, set the temperatures for the upper, upper-middle, lower-middle, and lower molds respectively. Once the temperatures reach the set values, open the cylinder door and place the heat‑insulating stainless steel plate and the sample.
5. Press the start test button to initiate the test by raising the hydraulic cylinder platen (do not adjust the hydraulic system pressure and speed arbitrarily).
6. The system will automatically reset when the set time is reached.
7. Observe the sample condition to confirm the test is completed.

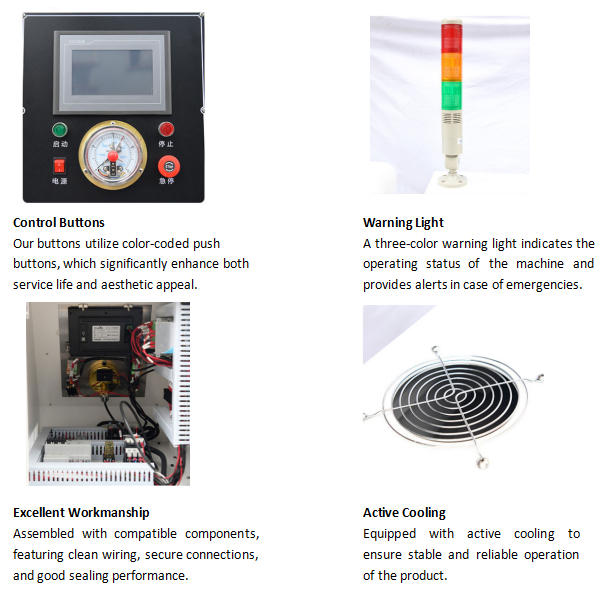

Details

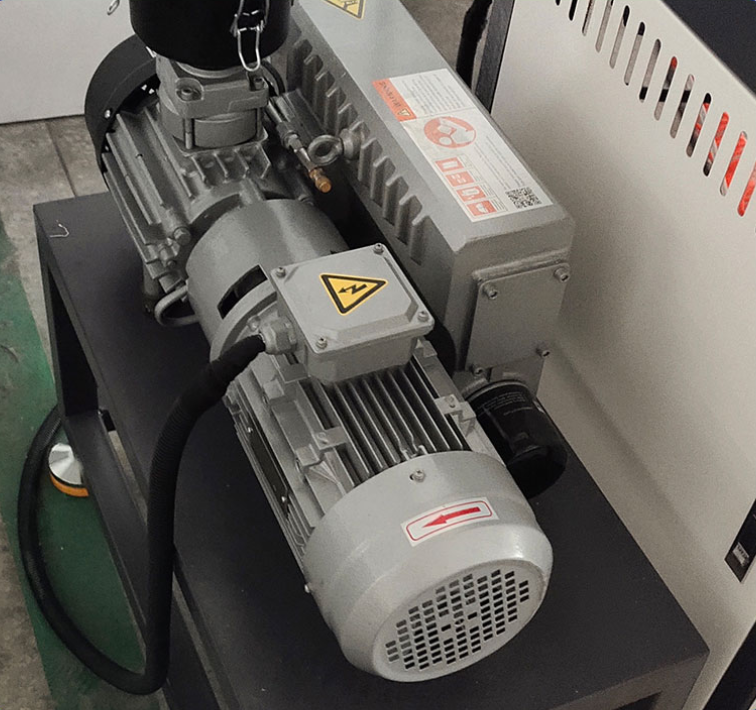

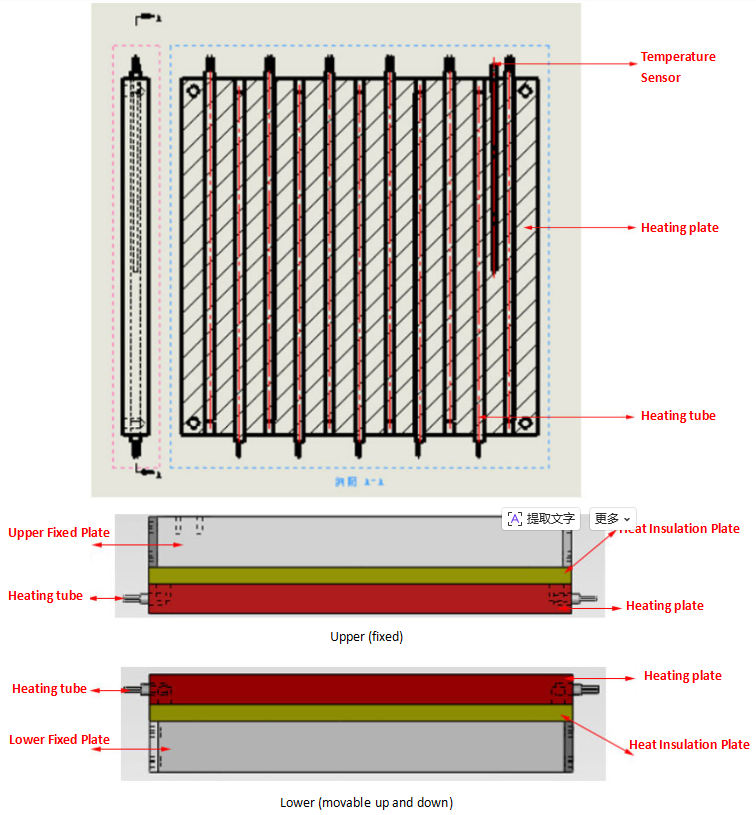

Structure

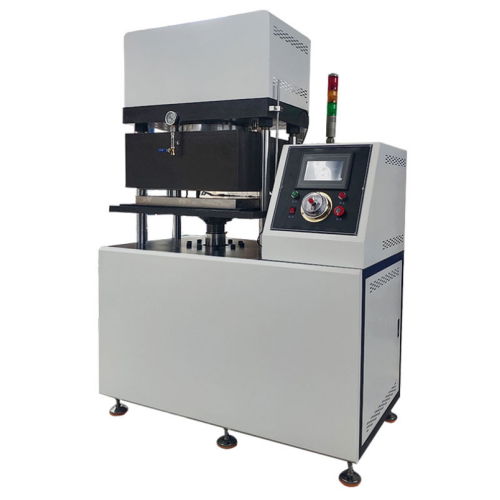

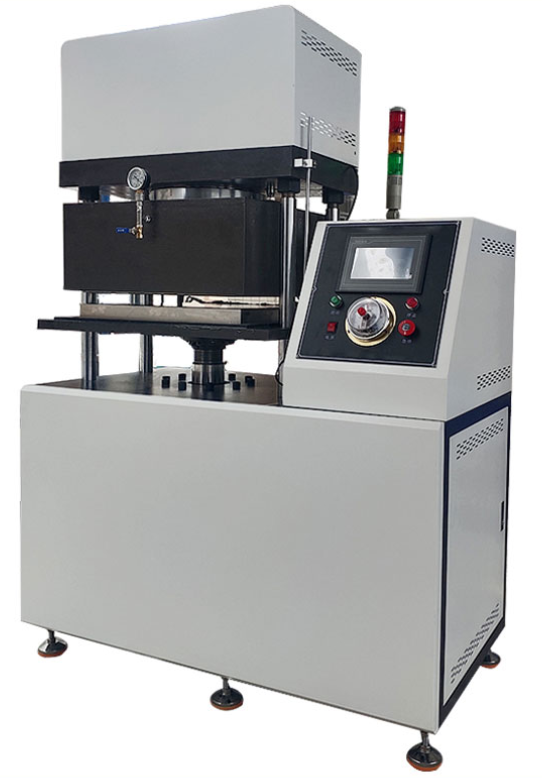

Picture for reference
