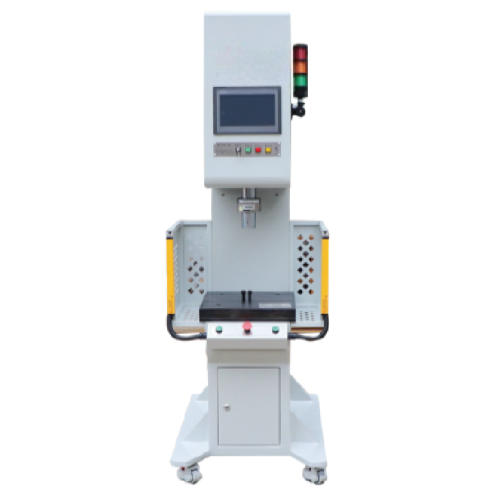

Laboratory 0-200T High Precision Servo Press Machine For Hardware Parts, Electronic Press-Fitting
Introduction
The working principle of a servo press is that a servo motor drives a high-precision ball screw to perform precise pressure assembly operations, achieving closed-loop control of the press-fitting force and the press-in depth throughout the process. The body structure of the equipment includes C-shaped, desktop, single-column and four-column types. It can be configured with heating, multi-station, mobile slide table, scanning code, loading and unloading mechanical hand and other devices. Equipment pressure: 0.5T-200T and other different specifications.
Technical parameters
Model | XSC-0.5T | XSC-1T | XSC-3T | XSC-5T | XSC-10T | XSC-20T | |
Rated Pressure (T) | 0.5 | 1 | 3 | 5 | 10 | 20 | |
Table Working Surface Height from Floor E (mm) | 800 | 800 | 800 | 800 | 800 | 800 | |
Max. Opening H (mm) | 300 | 400 | 400 | 400 | 500 | 500 | |
Throat Depth S (mm) | 150 | 150 | 200 | 200 | 200 | 250 | |
Slide/Plunger Max. Stroke (mm) | 150 | 200 | 200 | 200 | 200 | 200 | |
Table Effective Area (mm) | Left-Right L | 400 | 400 | 400 | 500 | 600 | 700 |
Front-Back W | 300 | 300 | 400 | 400 | 400 | 500 | |
Slide/Plunger Speed (mm/s) | Rated No-Load Speed | ≤160 | ≤160 | ≤160 | ≤120 | ≤100 | ≤80 |
Working Speed | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | |
Main Machine Outline Dimensions (LWH) | 620*735*1800 | 620*760*1950 | 650*850*2100 | 650*950*2300 | 850*1000*2500 | 950*1100*3200 | |
Power (KW) | 0.75 | 1.3 | 2.9 | 4.4 | 7.5 | 15 | |

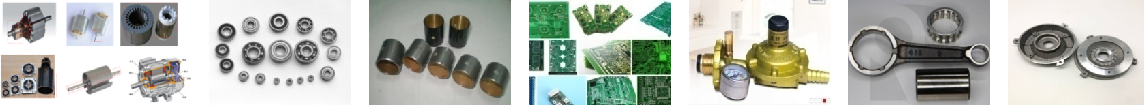

Finished Product
