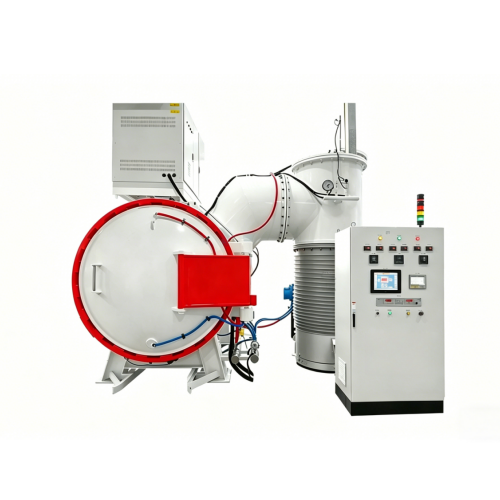

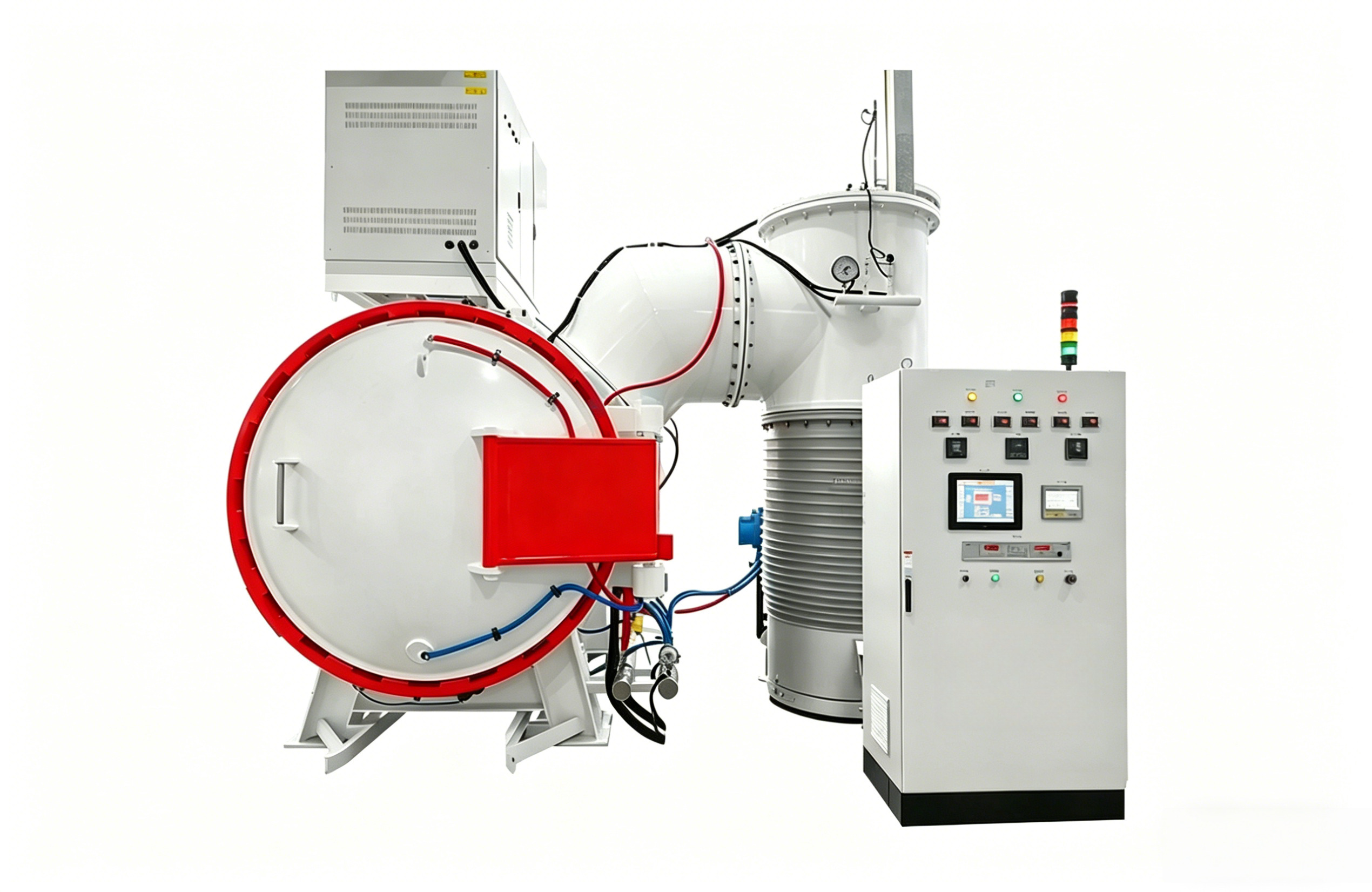

Industrial PLC Controlled 1300℃ Batch Production Vacuum Brazing Furnace
Equipment Overview
The industrial vacuum brazing furnace is a high-capacity vacuum welding and sintering equipment specially designed for mass production. By precisely controlling the vacuum environment, temperature field and cooling rate, it enables high-quality joining of large batches of metal components. With a modular design, the equipment meets the stringent production requirements of industries such as automotive, energy, and aerospace.
Product Features
Molybdenum Heat Shield: Multi-layer radiation shielding, more energy-efficient than traditional graphite structures.
Material Compatibility: Suitable for dissimilar metal joining of aluminum, copper, stainless steel, and high-temperature alloys.
Multi-Zone Temperature Control: 8–12 independent temperature control zones, adapting to oversized workpieces.
Control System: Intelligent PLC control with PID temperature controllers, capable of storing multiple process curves and real-time monitoring of parameters such as temperature and time.
Technical Specifications
Furnace Effective Size (D×W×H) | Max. Temperature | Heating Element | Furnace Structure | Vacuum Degree |
1200×800×800–1500×1050×1050mm (optional) | 1300℃ | FeCrAl / Molybdenum-lanthanum alloy | Square / Cylindrical | 6.7×10⁻³ Pa |
