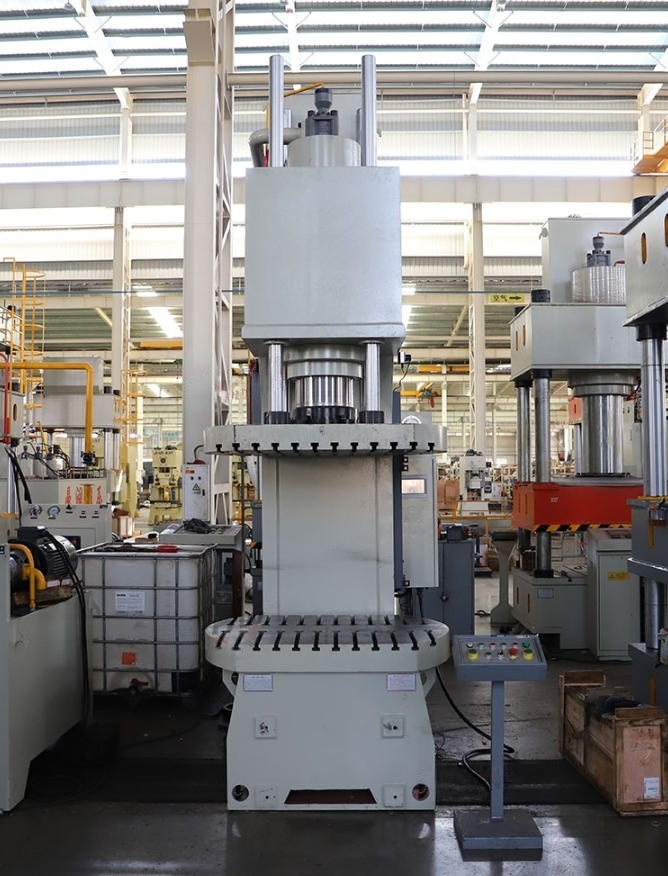

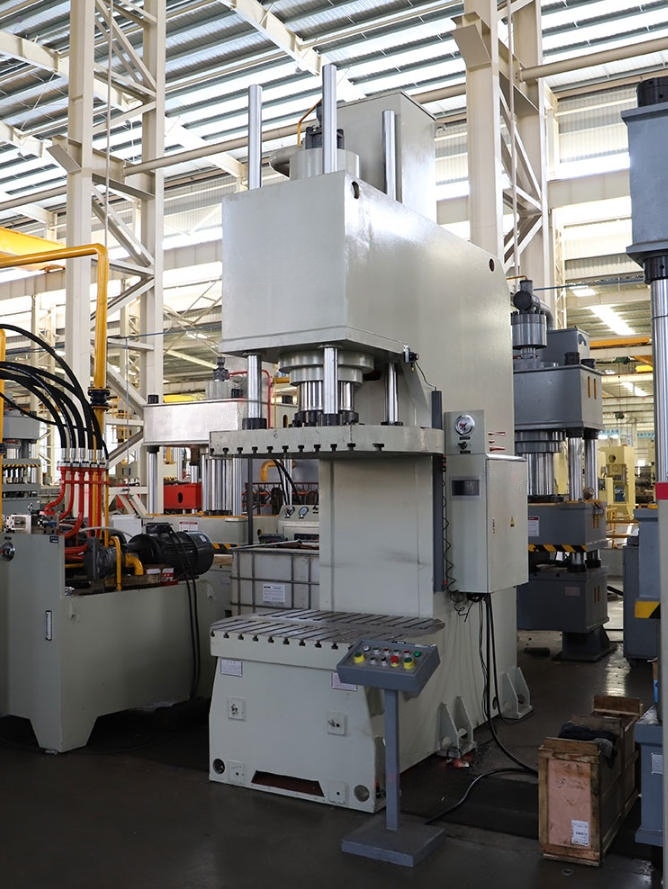

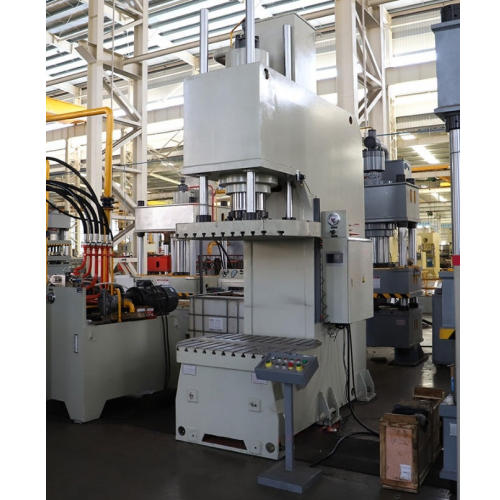

Industrial 250T Single-Column Hydraulic Press Machine For Hard Metal Powder Forming

Introduction

The 250-ton single-arm hydraulic press, also known as the 250-ton single-column hydraulic press, features an open C-shaped structure body and is suitable for the press-fitting, straightening and bending of various tools and components. Thin plate medium pressure, blanking, embossing and other processes.

Application scope

This series of single-column hydraulic presses are mainly suitable for the correction of shaft parts and profiles, the press-fitting of shaft sleeve parts, the bending, embossing, and forming of sheet metal parts, the stretching of simple parts, plastic products, machine tools, internal combustion engines, light textile machinery, shafts, bearings, washing machines, automotive motors, air conditioning motors, electrical appliances, military enterprises, assembly lines of foreign-funded enterprises, and other industries.

Features

1. The 250-ton single-arm hydraulic press features good structural rigidity, is equipped with a four-column guide, has excellent guiding performance and high speed

2. The sturdy open C-shaped structure welded as a whole enables the machine to maintain sufficient components while providing a very convenient operating space. After welding, vibration treatment is carried out to ensure the non-deformation degree of the machine. The oil and piston rod are made of high-quality 45# steel. After medium-frequency quenching, the surface of the piston rod is chrome-plated, which is not easy to be scratched or rusted. The oil cylinder is sealed with high-quality sealing rings to ensure reliable sealing performance.

3. The hydraulic control adopts a two-way cartridge valve integrated system, which features reliable operation, long service life, low hydraulic shock, and reduced connection management and leakage points. 4. The convenient manual adjustment mechanism can adjust the press head or the upper worktable to press at any position during the stroke, and also can adjust the length of the fast advance and the working stroke at will within the designed stroke.

5. It adopts an independent electrical control system, which ensures stable and reliable operation, smooth movement and convenient maintenance.

6. The 250-ton single-column hydraulic press is centrally controlled by buttons and features three operation modes: adjustment, manual and semi-automatic. The working pressure, the stroke range of no-load fast descent and slow working advance can all be adjusted according to the process requirements.

7. According to the user's requirements, PLC, grating protection, human-machine interface (touch screen), protective devices and other configurations can be added.

Parameters
