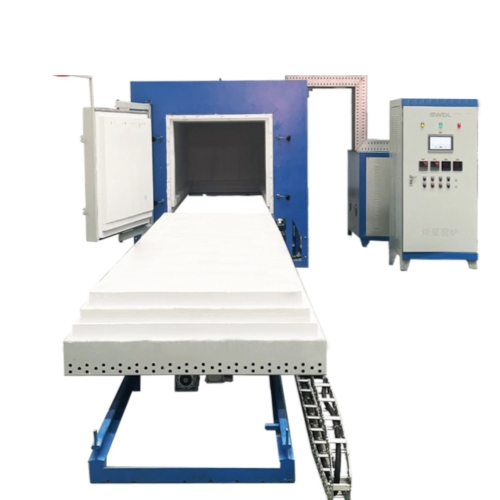

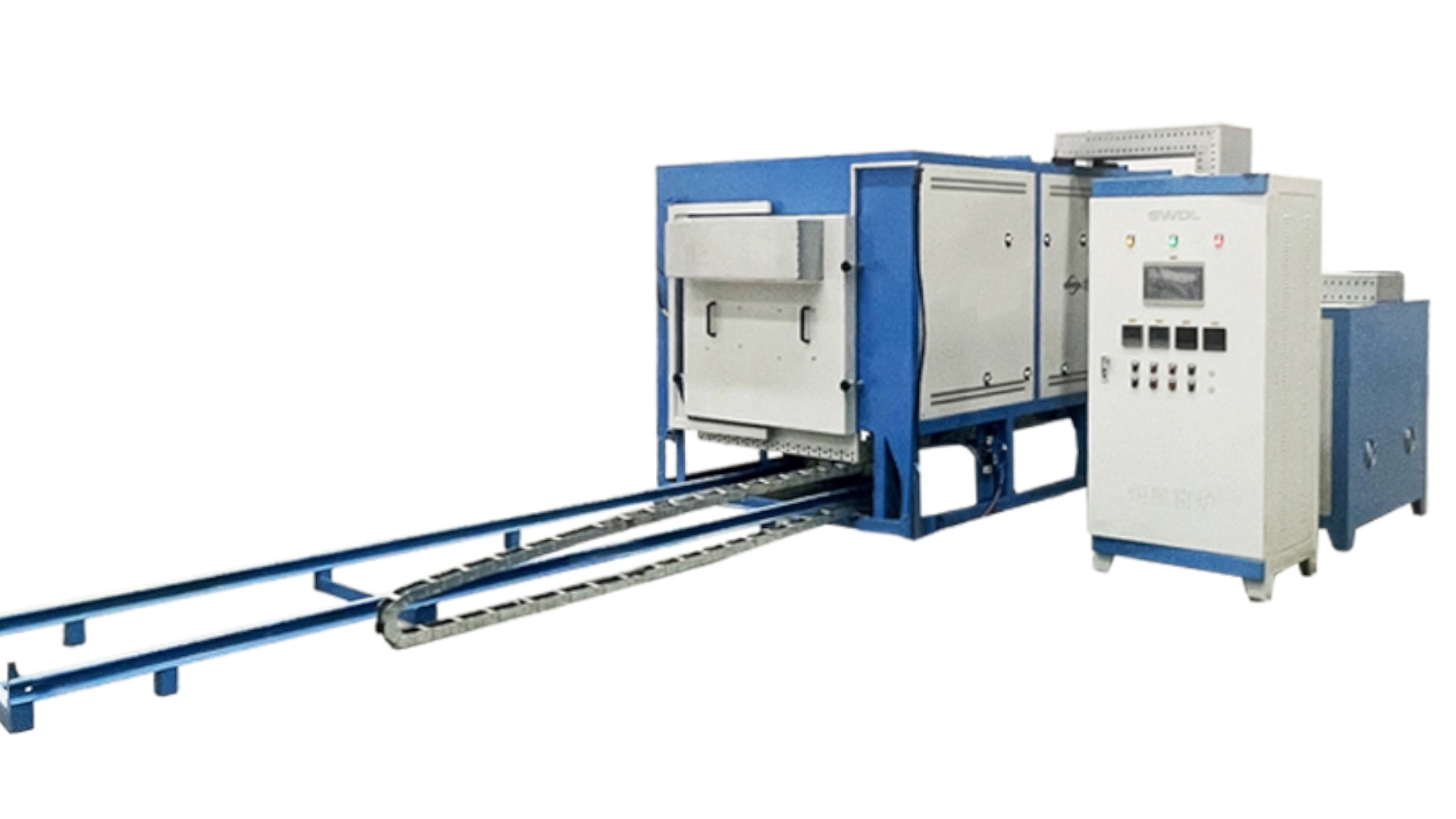

High-temperature 1600℃ Ceramic Bogie Hearth Electric Resistance Sintering Furnace
Specification
Item | 1600℃ Type |
Power Supply AC | 380V |
Power | Max. design 260KW |
Charging Tables | Two units |
Furnace Chamber Dimensions (mm) | Depth 3050 × Width 1000 × Height 850 |
Long-term Working Temperature | ≤1500℃ |
Temperature Control Range | 80℃ to 1600℃ |
Temperature Measuring Element | Platinum-rhodium Type S thermocouple |
Heating Element Location | Both sides of chamber + front and rear of furnace door; total 4-sided heating |
Temperature Control Accuracy | ±1℃ (Integrated circuit control, no overshoot) |
Temperature Uniformity | ±10℃ (depends on chamber size) |
Temperature Control Points | Two points |
Exhaust Ports | Auto open/close by temperature controller; two ports, φ60mm |
Side Wall Holes | φ30mm; 5 upper and 5 lower on left side |
Heating Rate | Adjustable freely; recommended max. 15℃/min, min. 1℃/h |
Heating Element | MoSi₂ (molybdenum disilicide) rods |
Furnace Body | CNC machined, polished, ground, pickled, phosphated, plastic powder coated and high-temperature baked; two-tone design, attractive appearance |
Furnace Structure | Air-cooled double-layer with guide baffles for full cold-air circulation, cooling terminals and preventing oxidation |
Door Opening | Electric side opening; trolley extends 1200mm from closed door |
Door Sealing | 6 sets of air cylinders on both sides and rear |
Loading Capacity per Table | 3 tons |
Total Weight | Approx. 5 tons |
Refractory Material | Vacuum formed high purity alumina lightweight lining |
Roof Structure | Flat suspended ceiling |
