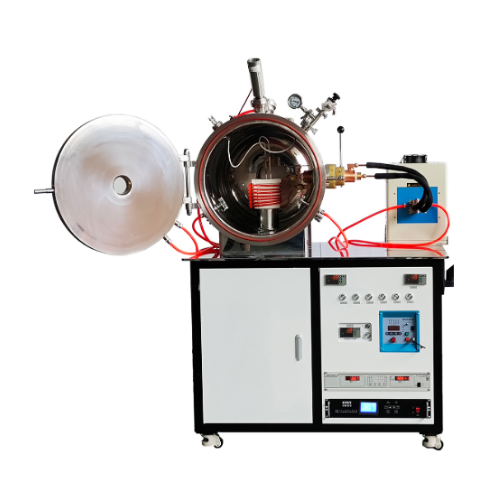

Advantages

This unit can be used as a quenching furnace, and also for vacuum melting. When used as a vacuum melting furnace, simply cover the cooling bath.

Crucible Inner Diameter

Φ10 mm, Φ20 mm, Φ30 mm, Φ40 mm, Φ50 mm

Maximum Heating Temperature

2200℃

Heating Element

Tungsten

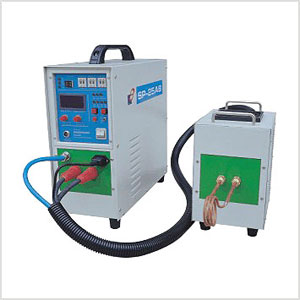

High-Frequency Heating Power Supply

Power Supply Type

High-frequency induction power supply

Oscillation Frequency

30–80 kHz

Maximum Input Power

35 kW

Heating Current

2–52 A

Cooling Water Requirement

≥0.2 MPa, ≥6 L/min

Power Supply Weight

35 kg

Duty Cycle

100%

Input Voltage

Three-phase 380V, 50 or 60 Hz

Heating Method

Induction heating

Chamber Inner Diameter

500 mm

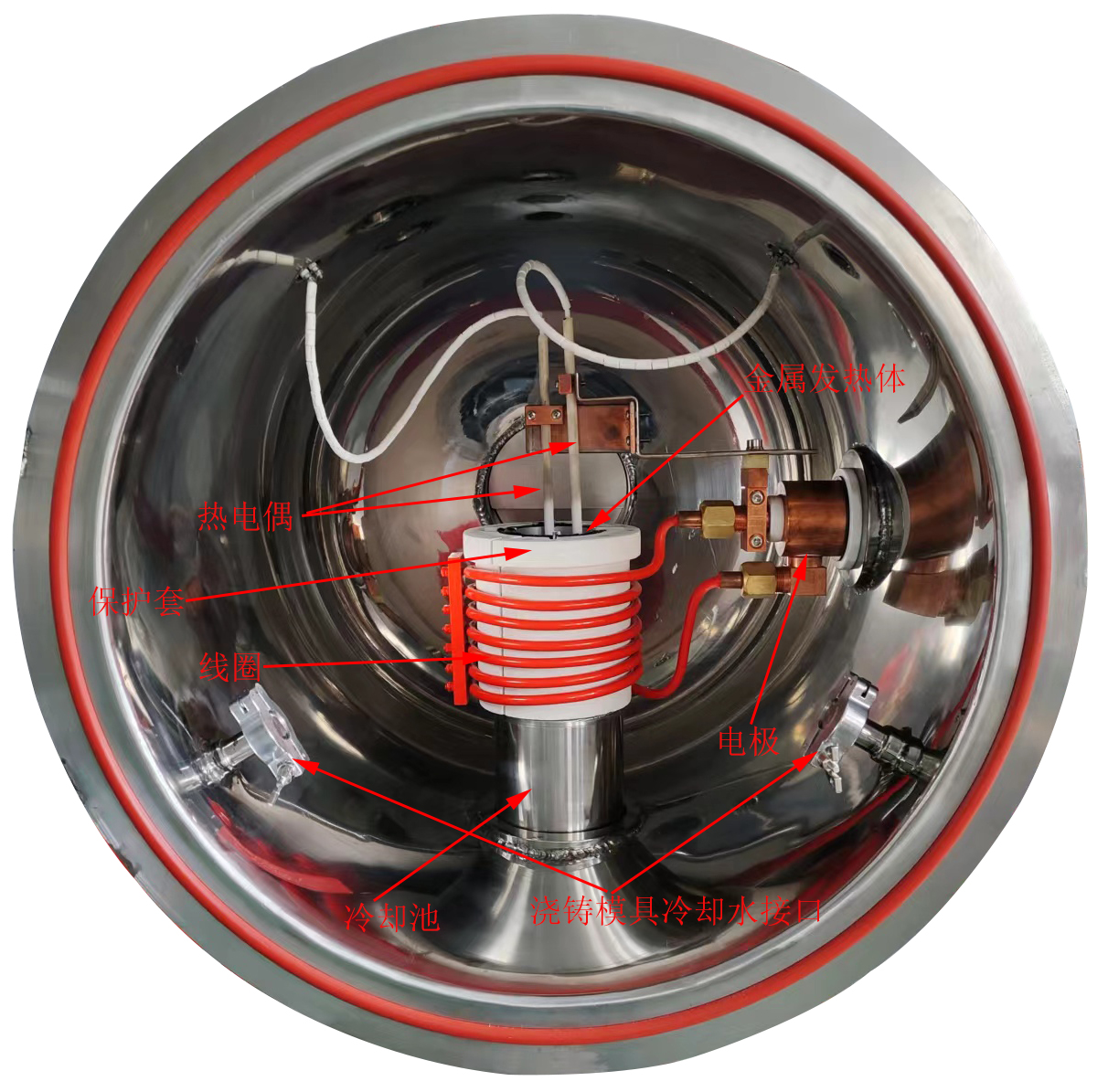

Chamber Internal View

Chamber Vacuum Degree (Molecular Pump Unit)

< 6×10⁻⁴ Pa

Chamber Gas Filling Pressure

< 0.05 MPa

Pressure Rise Rate

<4 Pa/hour

Broken Thermocouple Protection & Indication

Yes

Over-temperature Protection

Yes

Over-current Protection

Yes

Under-voltage Protection (Water Pressure)

Yes

Temperature Control Mode

Intelligent PID

Control Accuracy

±1–5℃ (above 600℃)

Temperature Measurement Method

Infrared pyrometer

Electromagnetic Stirring (External Field)

During processing of metal alloys, in addition to conventional stirring (e.g., that produced by coils), an external electromagnetic field is applied to achieve stirring. The electromagnetic field interacts with the material, generating electromagnetic forces that drive charged particles, thereby stirring the entire melt. This stirring method allows more thorough mixing, resulting in more uniform alloy composition and improved quality/performance.

Technical Solution

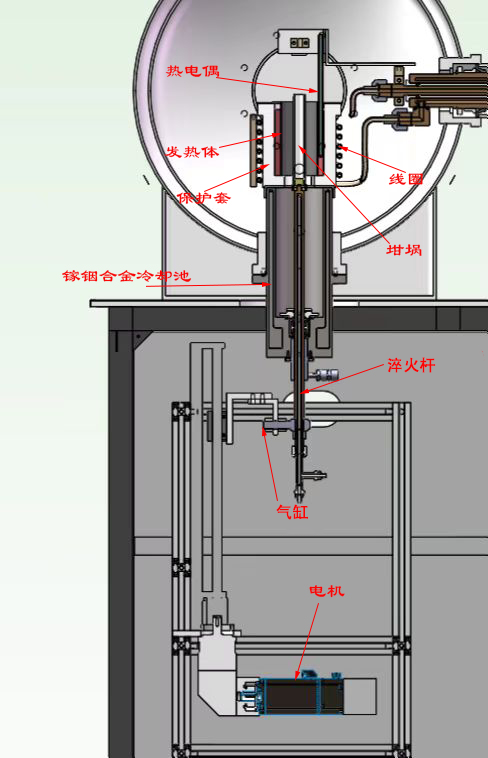

A protective sleeve is placed over the induction coil. Inside the sleeve is a heating element, and inside the heating element is a crucible. The crucible is mounted on a directional solidification rod. The heating element is inductively heated and radiates heat to the crucible, melting the material inside. Activating the lower cylinder quickly lowers the crucible into the cooling bath for quenching.

Vacuum Chamber Water-Cooled Crucible Compatibility

Yes

Observation Window Size

Dia 90 mm

Unit Input Voltage

380V / 220V

Bellows

KF40×1000

Vacuum Gate Valve

KF40

Fore Vacuum Pump BSV30

Power

0.75 kW

Voltage

380V

Speed

1450 rpm

Inlet Port Diameter

KF25/KF40

Pumping Speed (fore pump)

8 L/s

Ultimate Pressure

5×10⁻¹ Pa

Compound Vacuum Gauge

Model

ZDF

Power Supply

220V, 55W

Control Accuracy

±1%

Measuring Range

10⁻⁵ Pa ～ 10⁵ Pa

Secondary Pump – Molecular Pump (Option 1) (can achieve chamber vacuum <6×10⁻⁴ Pa)

Molecular Pump Model

FJ620

Input Voltage

220V

Inlet Flange

DN160

Pumping Speed (for air)

600 L/s

Ultimate Pressure (Molecular Pump)

6×10⁻⁷ Pa

Cooling Method

Water cooling

Cooling Water Pressure

0.1–0.2 MPa

Cooling Water Temperature

<25℃

Ambient Temperature

0–40℃

Recommended Starting Pressure

<10 Pa

Secondary Pump – Diffusion Pump (Option 2) (can achieve chamber vacuum <5×10⁻³ Pa)

Voltage

220V

Power

1000 W

Ultimate Vacuum (no leakage)

10⁻⁵ Pa

Inlet Port

DN150

Outlet Port

DN40

Oil Charge

0.3 L

Pumping Speed (N₂)

1000 L/s

Power Supply

3PH-380V/50Hz

Maximum Head

40 m

Maximum Flow

16 L/min

Tank Capacity

60 L

Cooling Capacity

103 Kcal/h

Water Inlet/Outlet Port

Rp 1/2"

Machine Dimensions

1150 × 520 × 1145 mm (L×W×H)
