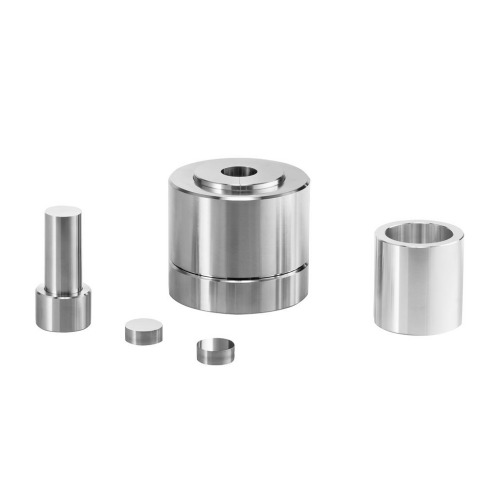

Dia7-14mm Hydraulic Press Cylindrical Opening Die Molds For Tablet Making
Introduction

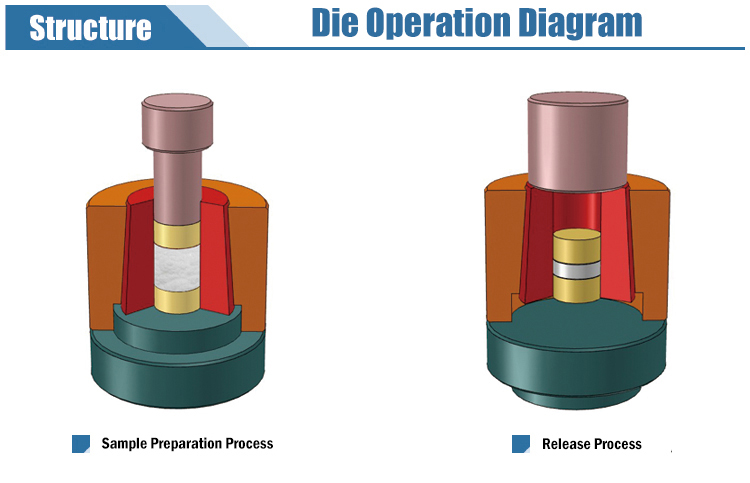

Cylindrical open-flap mold is suitable for the forming of ultra-fine powder or sample which is easy to be delaminated and cracked . The mold can solve the problem of sample deforming caused by sample expansion and deformation during the demoulding process by quickly opening the mold outer cover.
Technical parameters
Instrument model | PMK-YB |
Press the shape of the sample |  |
Mold material | 440C |
Indenter hardness | HRC60-62 |
Sample size | Φ7/8/9/10/11/12/13/14 (M) |
Cavity depth | 40mm (N) |
Overall dimensions | Φ68*110mm (L*H) |
Mold weight | 2kg |

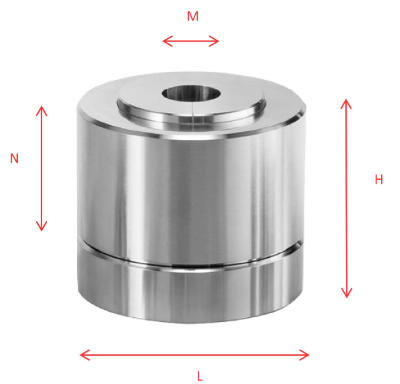

Schematic diagram of dimensions |  |
