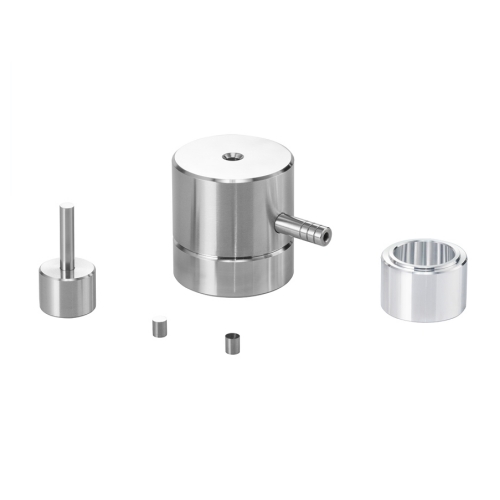

Dia7-14mm Cylindrical Dies Set For Hydraulic Tablet Machine Punching Press
Introduction
Cylindrical molds can be used for the molding and testing of most samples, with tablet sizes ranging from 7-14mm. Product tablet thickness :1 to 20mm; Bulk powder height: up to 30mm; Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMY-B |
Press the shape of the sample |  |
Mold material | Japanese high-speed tool steel ASSAB+17 |
Indenter hardness | HRC68-70 |
Sample size | Φ7-14 (M) |
Cavity depth | 30mm (N) |
Overall dimensions | Φ43*93mm (L*H) |
Mold weight | 0.8kg |

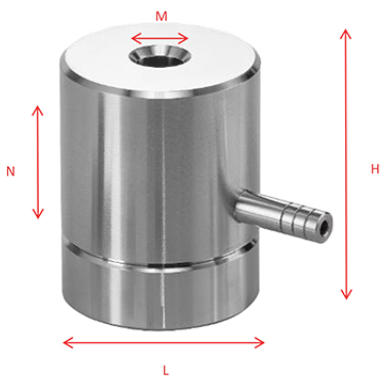

Schematic diagram of dimensions |  |
