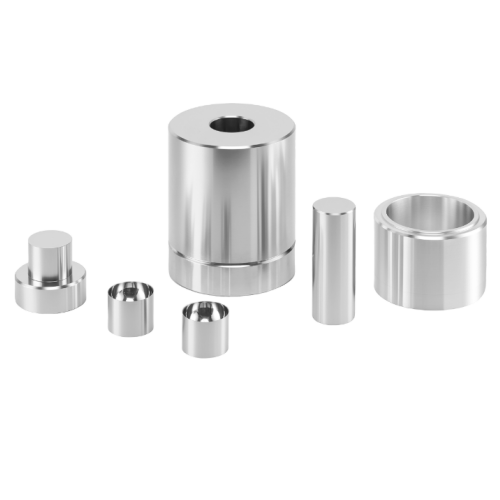

Dia41-80mm Lab Hydraulic Powder Press Die Set Spherical Mold
Introduction
Spherical molds are used in the pharmaceutical industry and for small-batch testing. The dimensions of the mold for tablet pressing are: diameter 3 to 20mm and height 1 to 20mm. Height of bulk powder :15-35mm; Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMQ-B |
Press the shape of the sample |  |
Mold material | Alloy tool steel: Cr12MoV |
Indenter hardness | HRC60-HRC62 |
Sample size | Φ41-80mm (M) |
Cavity depth | 60mm (N) |
Overall dimensions | Φ88-128*150mm (L*H) |
Mold weight | 5.8kg |

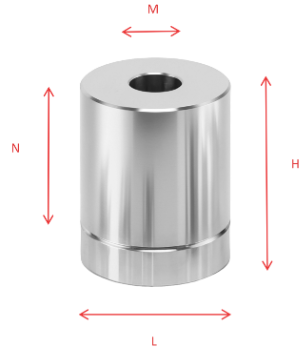

Schematic diagram of dimensions |  |
