Dia3-6mm Evacuable Cylindrical Dies Set For Hydraulic Tablet Pellet Machine Punching Press
Introduction
Cylindrical molds can be used for the molding and testing of most samples, with tablet sizes ranging from 3 to 6mm. Product tablet thickness :1 to 10mm; Bulk powder height: up to 25mm; Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMY-A |
Press the shape of the sample |  |
Mold material | Japanese high-speed tool steel ASSAB+17 |
Indenter hardness | HRC68-70 |
Sample size | Φ2/3/4/5/6 (M) |
Cavity depth | 20mm (N) |
Overall dimensions | Φ43*78mm (L*H) |
Mold weight | 0.6kg |

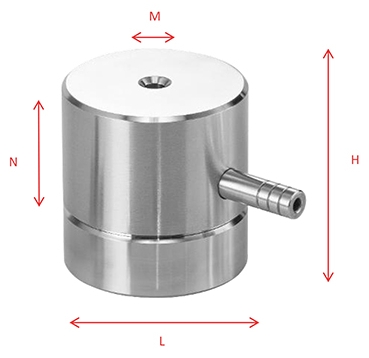

Schematic diagram of dimensions |  |
