Dia11-20mm Cemented Carbide Pallet Pressing Cylindrical Mold Powder Forming Die
Introduction
Hard alloy molds are suitable for forming samples with extremely high powder hardness. Tablet size: diameter 8 to 40mm. Special mold sizes can be customized according to customer requirements.
Technical parameter
Instrument model | PMW-B |
Press the shape of the sample |  |
Mold material | Hard alloy YT15 |
Indenter hardness | HRC85-HRC90 |
Sample size | Φ11-20 (M) |
Cavity depth | 40mm (N) |
Overall dimensions | Φ53*120mm (L*H) |
Mold weight | 1.8kg |

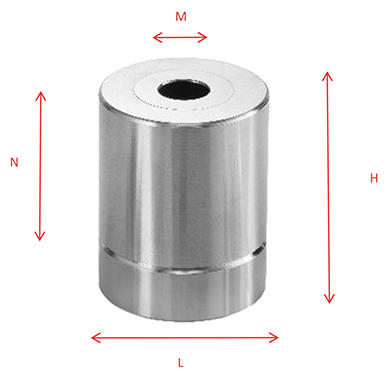

Schematic diagram of dimensions |  |
