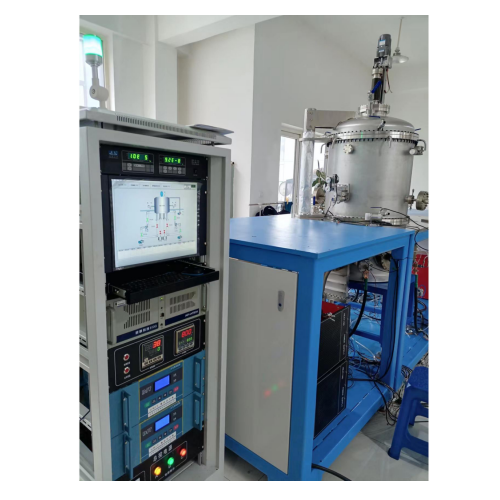

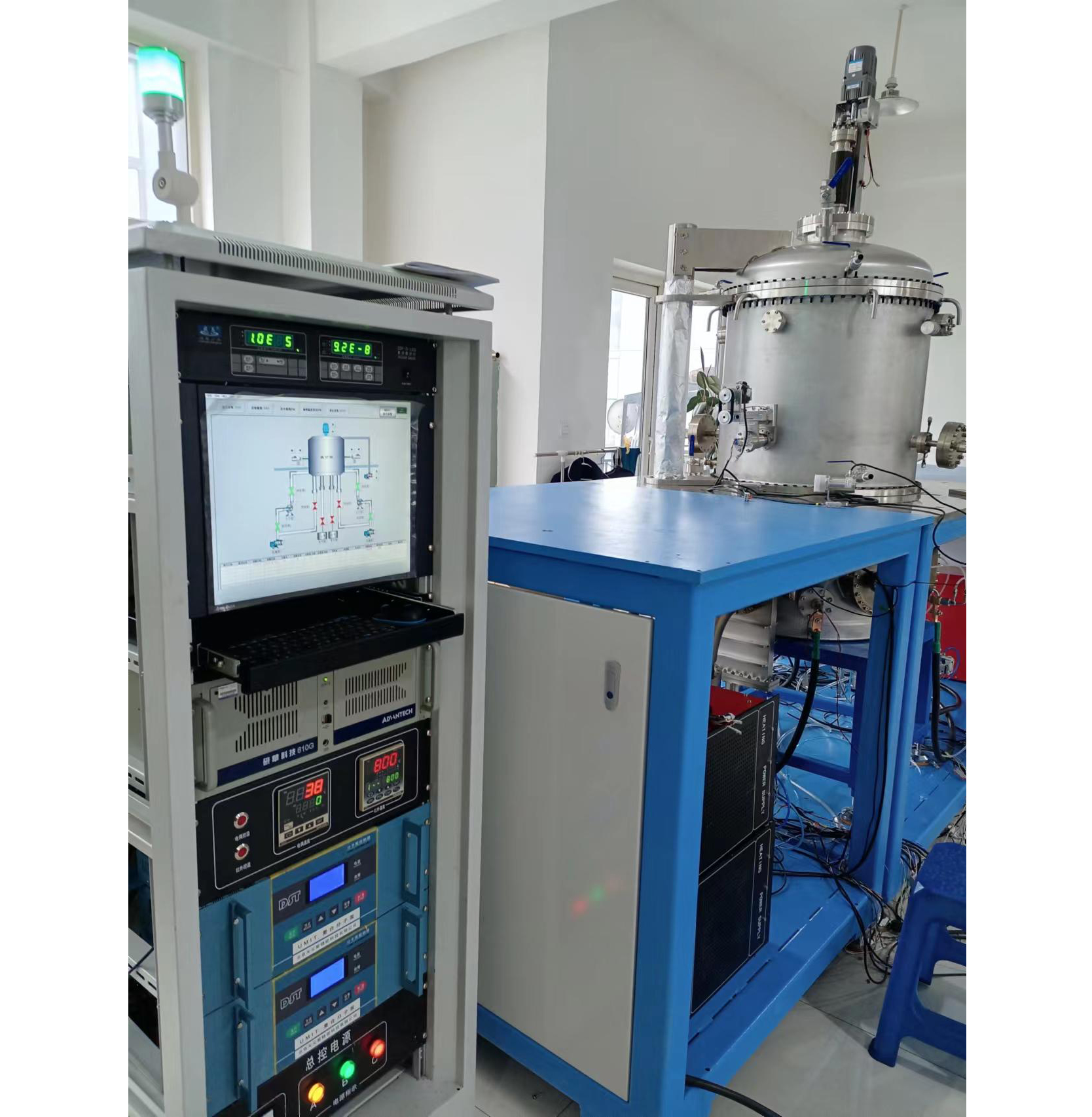

Automatic Ultra-High Vacuum 2300℃ Vertical Resistance Sintering Furnace For Heat Treatment
Introduction
This ultra-high vacuum vertical resistance furnace adopts tungsten as the heating element. It is used for sintering metal compounds, ceramic inorganic compounds and other products under ultra-high vacuum or protective atmosphere, and also for heat treatment of metallic materials.
Main Technical Parameters
Power supply: 380 V, three-phase, 50 Hz
Limiting temperature: 2300℃
Operating temperature: 2200℃
Working zone size: Customizable according to customer requirements
Ultimate vacuum degree: 8×10⁻⁸ Pa (metal sealing)
Leakage rate: ≤0.003 Pa/h
Electrical control: PLC + touch screen control, with over-temperature, over-pressure, and water under-pressure alarm functions
Fillable gases: Inert gases such as argon and nitrogen for process protection
