1

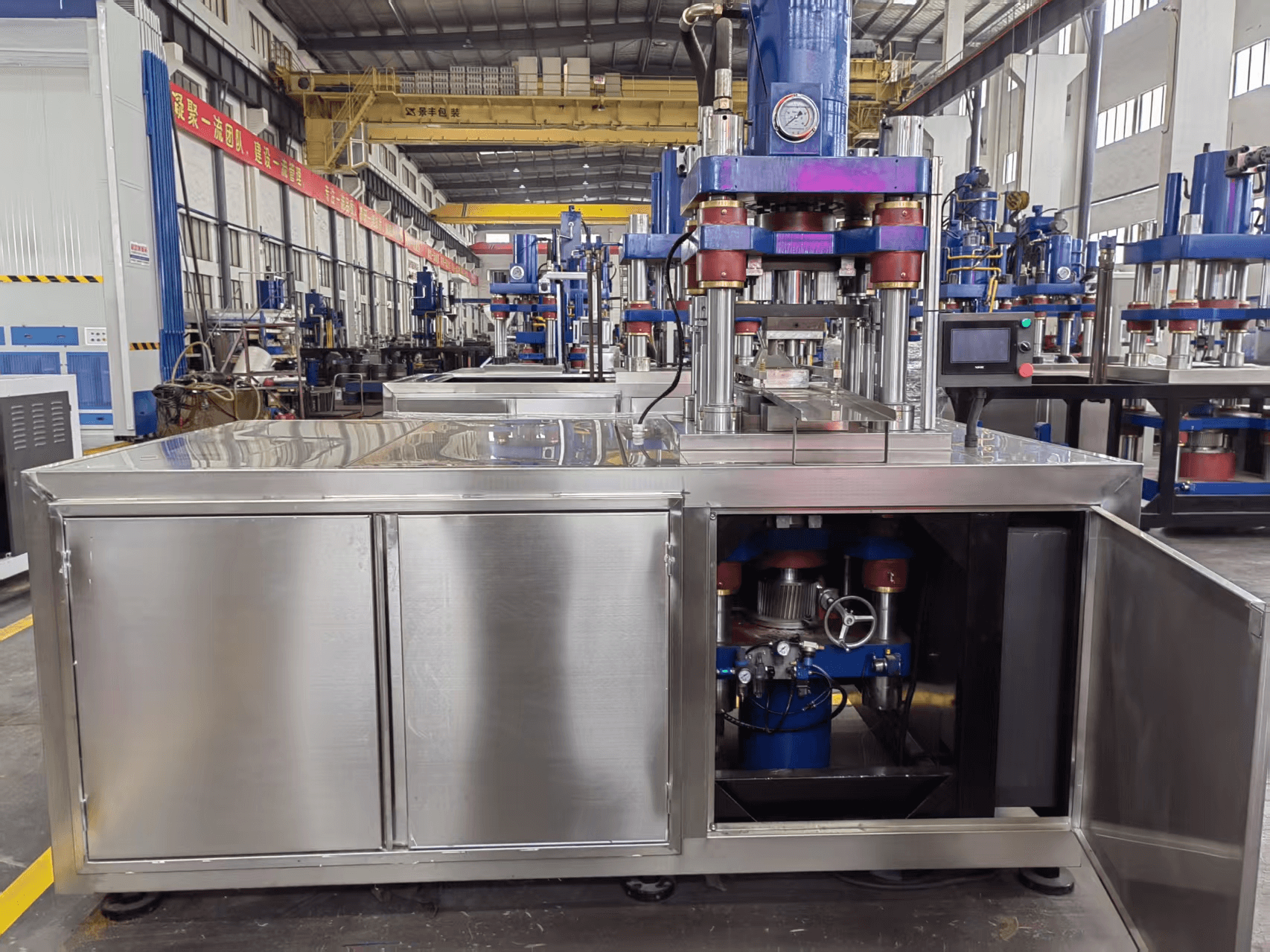

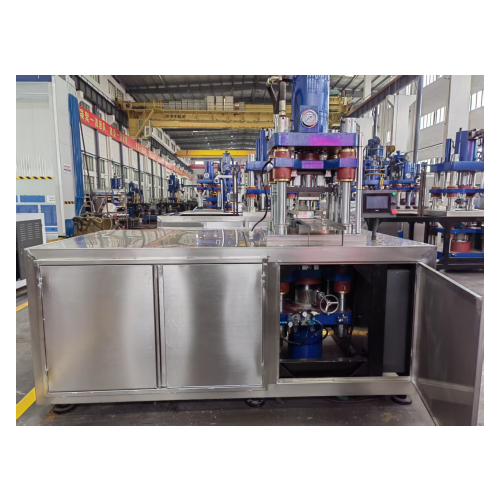

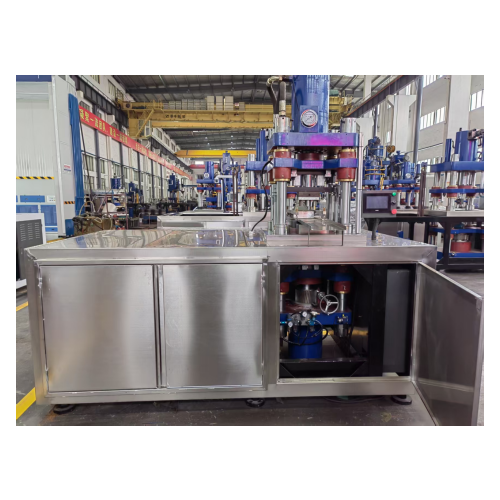

Working pressure

1. Maximum pressure 150 tons, pressure adjustable from 1 to 150 tons. Main cylinder pressing force controlled by Gefran pressure sensor. Pressure of all oil cylinders directly displayed on the operation screen; can be freely adjusted automatically according to product needs.

2. Bidirectional pressure pressing. Upper and lower cylinders are the same size (note: text inconsistency, says 16 tons here but elsewhere says 150 tons; likely a typo. Should be 150 tons as per model). During pressing, both upper and lower punches are driven by oil cylinders, forming bidirectional pressing for uniform product density. Pressing steps: Feeding box advances -> Lower punch descends to form cavity -> Feeding box moves to feed material into die cavity and retracts, completing feeding -> Lower punch descends 3mm to ensure all material is within the die -> Upper punch fast down -> Slow down for die closing -> Pre-press -> Lower punch moves upward to form pressure -> Upper and lower punches press bidirectionally -> Upper punch reduces pressure, pressure-maintained ejection (optional; can also be non-pressure-maintained ejection based on product needs; pressure-maintaining force is adjustable, automatically adjusted upon input on the touch screen) -> Pressure release -> Lower punch moves up -> Upper punch returns -> After product ejection, leaves pressing area, feeding box prepares for next feeding -> Enters next automatic cycle.
Main cylinder and lower cylinder use high-precision displacement sensors for signal conversion; travel of upper/lower punches and die floating plate directly displayed on screen.
Upper punch forming position, die feeding position, under-filling position, and die ejection position controlled by two-axis CNC positioning system (digital hydraulic motion controller, high-precision displacement sensor, optionally equipped with digital oil chiller or water chiller for temperature control).
1. Equipment uses PLC, touch screen, and related sensors for automated control functions.

2. Safety protection and alarm functions.
3. Fault display and recording functions.
3. Main Cylinder Parameters (driving upper and lower punches - 2 units):

Maximum Pressing Force: 150 tons
Maximum Return Force: 150 tons
Maximum Stroke (from middle plate): 220 mm (can be customized)
Fast Down Speed: 0-180 mm/s
Slow Down Speed: 0-15 mm/s (adjustable)
Proportional Floating Speed: 0-150 mm/s (adjustable)
Post-Pressure Speed: 0-150 mm/s (adjustable)
Return Speed: 0-150 mm/s (adjustable)
4. Feeding Box Cylinder (1 unit)
Maximum Extension Force: 5 tons
Maximum Retraction Force: 5 tons
Maximum Stroke: 800 mm (can be customized)
5. Pressure directly displayed on screen and gauge via regulating valves. Pressure-maintained ejection, adjustable pressure. Servo motor hydraulic power unit, closed-loop pressure feedback control, high precision, easy and simple operation.

2

Filling Height

Maximum for this machine is 120mm, customized according to actual requirements.

3

Main Cylinder Stroke

Standard 220mm, customizable based on actual requirements.

4

Die Cavity Size

200X200mm, can be enlarged/customized according to customer product requirements.

5

Worktable Surface

800X800mm, can also be customized as required.

6

Daylight Opening

550mm, can also be customized as required.

7

Product Shape

Cylindrical, ring-shaped, flake, or block shapes are all possible.

8

Output

2-4 cycles per minute. Actual output depends on product pressure holding time and pressing process.

9

Motor Power

17 KW, 380V, 50Hz, 3-phase, two sets of servo motor oil pump systems. Subject to actual power.

10

Machine Dimensions

L1600*W1000*H2200mm (subject to actual dimensions).

11

Machine Weight

3.3 tons (subject to actual weight).

12

Equipment Configuration

1. Oil Cylinders: self-made

2. Seals: Made from imported raw materials, domestically processed, more wear-resistant and durable than domestic materials.

3. Servo Oil Pump: Haideke (top domestic brand); Hydraulic Valves: Suzhou Xuzhan; Servo Motor: Shenzhen Inovance.

4. Pressure sensors for all hydraulic valves on the power unit, enabling real-time monitoring, display of pressure values, and direct design/modification of pressures.

5. High-precision encoders on the main cylinder upper punch plate and die floating plate for signal conversion; position changes directly displayed on the operation screen, allowing direct design/modification of strokes.

6. PLC & Touch Screen: Xinje

7. Electrical Components: Schneider or Chint.

8. Surface: All sheet metal parts feature curled edges and corners for safer use.
