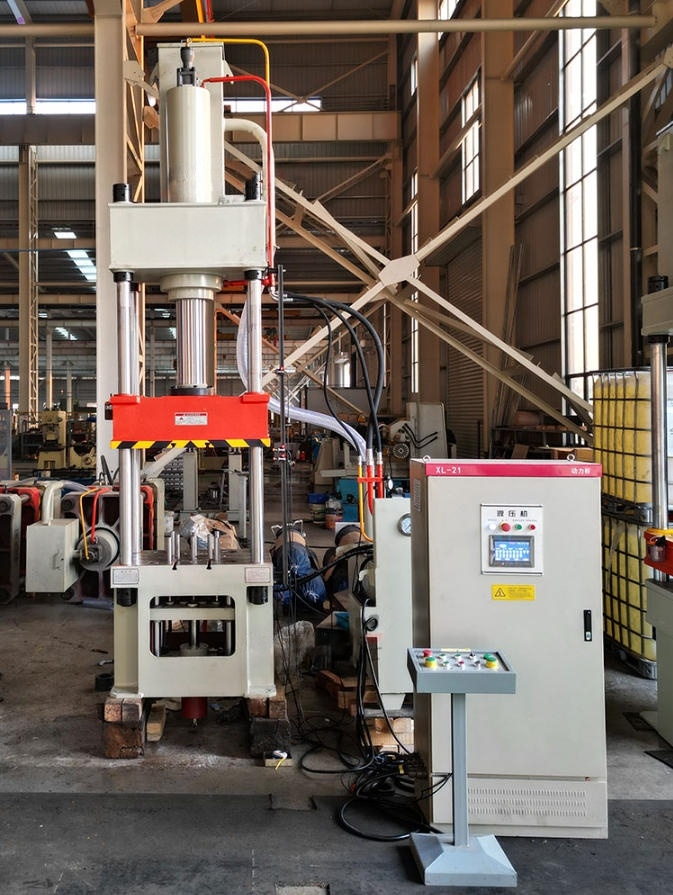

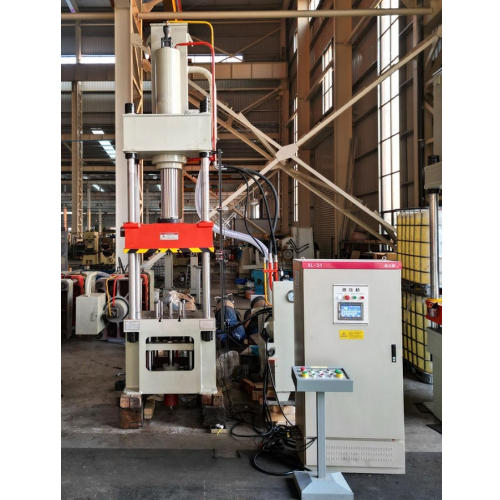

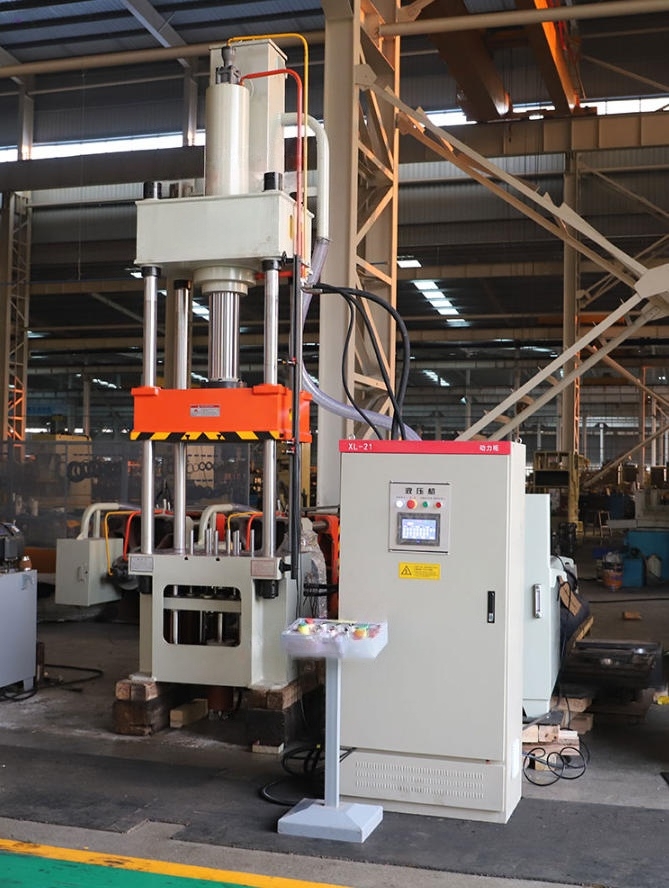

Automatic 100 Ton Hydraulic Pad Stretching Hydraulic Press For Powder Forming

Introduction

The 100-ton hydraulic pad stretching hydraulic press is a high-end hydraulic stretching machine custom-made by our company for customers. The machine is equipped with synchronous motors, synchronous drivers, PLC numerical control systems and other components, which can achieve rapid and silent stretching and forming of products. Based on the three-beam and four-column structure, it adds a wave pressure pad device under the worktable. The hydraulic pad is also called a multi-ejection mechanism. According to the size of the product, some ejection rods are distributed on the worktable. The placement shape of the hydraulic pad ejection rods is consistent with the shape of the product, so that the stretched products can be consistent. The advantage of this model is that it can press various product shapes and sizes. The top rod without the hydraulic pad can also be used as a conventional three-beam four-column hydraulic press. Therefore, it is a multi-functional hydraulic press.

Features

1. Four-column and four-nut structure, the slider guide adopts an extended structure, with high guiding accuracy and good rigidity of the press. The lock nut of the press has an anti-loosening structure and good precision retention.

2. The cylinder body and piston rod of the oil cylinder are made of steel. After the oil cylinder is precisely machined, it undergoes honing treatment, ensuring good sealing performance.

3. Integrated installation of hydraulic and electrical control, small floor space occupied by the press, beautiful appearance, and no need for a pit during press installation.

4. The hydraulic control adopts an integrated cartridge valve system, which is reliable in operation and convenient for maintenance. The hydraulic pump set is installed vertically, and the noise of the press is low.

5. The working pressure and stroke of this press can be adjusted within the parameter range according to the usage requirements.

6. Photoelectric protection and mobile operation consoles can be optionally equipped as needed, ensuring safe and reliable operation.

Parameters
