Alloy Tool Steel 300C Quantitative Mold for Hot Press Heating Machine
Technical parameter
Instrument model | PMD-R |
Pressed sample shape |  |
Heating temperature | RT-300℃ |
Mold material | Alloy tool steel |
Sample size | <Φ25mm(d) |
Sample thickness | 15、25、50、100、250、500 um (N) (6 quantitative loops) |
Dimension | Φ65 x 16 x 195 (R x H x L) |
Overall dimensions | 220V/300W |
Mold weight | 1.5 kg |

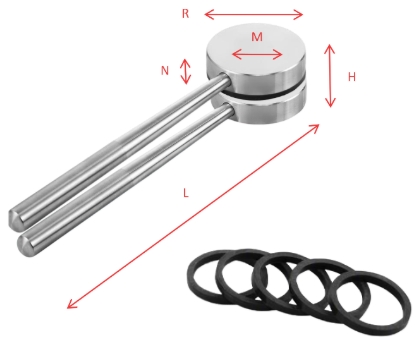

Dimension diagram |  |
