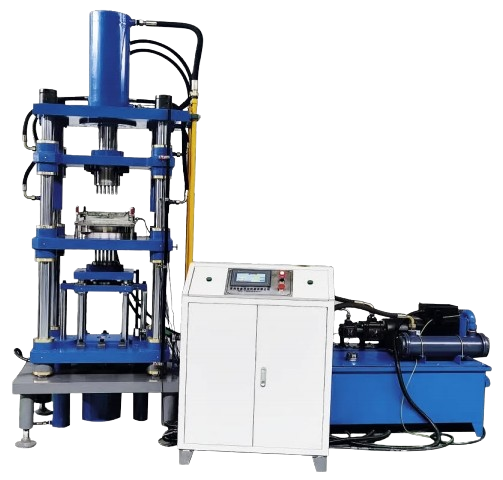

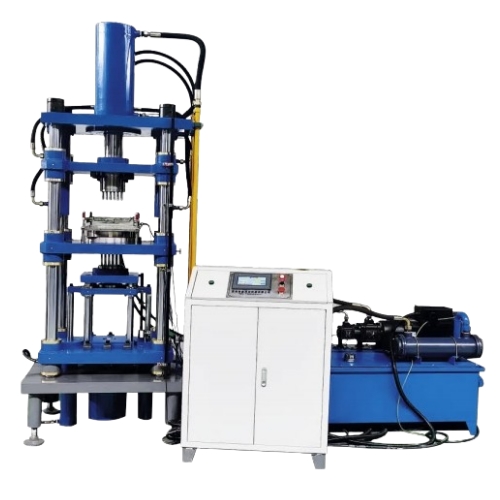

63T Hydraulic Press Machine With Cost-effetive Price From Original Manufacturer
Technical parameter
Production capacity | 4-6 molds/min (the actual production capacity according to product process requirements) |
Working pressure | 63T PLC one-click adjustment |
Working stroke | Upper stroke 200mm, lower stroke 100mm (can be customized) |
Filling depth | 150mm (can be customized) |
Product mold | (can be customized) |
Applicable shape | (can be customized) |
Power supply | 11KW (servo) |
Weight & Size | 3000kg, L2500*W1000*H2500 mm (reference only) |

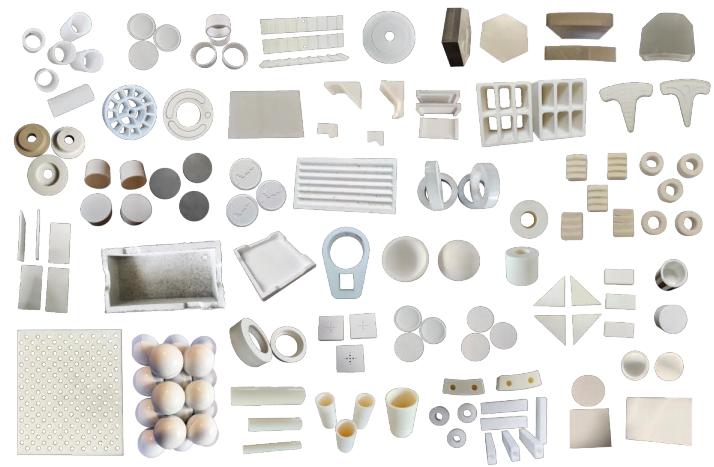

Finished Product (for reference)
