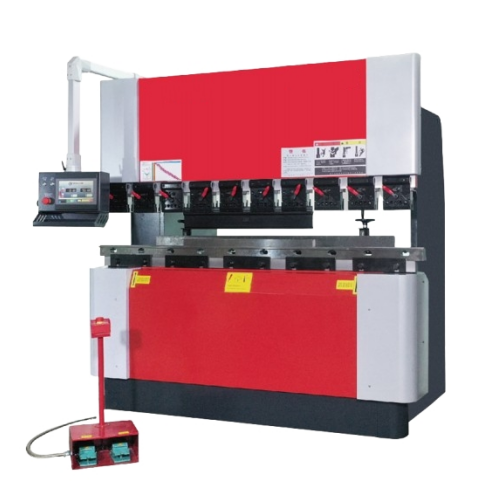

600KN CNC Metal Sheet Bending Press Brake Machine With Upstroke Moving
Introduction
The HT series is the most stable bending machine that can be utilized in the most variable production environments. The high rigidity of the machine frame and the CNC system expand the machining range and realize high speed and high precision machining, High-speed, high-precision processing can be realized at the same time, compared with the previous on the dynamic type more energy-saving and stable improve the working environment and solve various bending machine angle problems at the same time. The machine can also help operators to achieve the target angle without trial processing, and can be used in multiple production cycles.
Technical parameter
Model | Unit | HT-6020 |
Nominal force | KN | 600 |
Bending length | mm | 2000 |
Distance between side panels | mm | 1700 |
Throat depth | mm | 405 |
Ascent speed | mm/s | 52 |
Bending speed | mm/s | 8 |
Return speed | mm/s | 46 |
Opening height | mm | 395 |
Workbench (slider) stroke | mm | 100 |
Number of cylinders | pcs | 3 |
Main motor power | KW | 5.5 |
Machine weight | KG | 3800 |
Machine length | mm | 2250 |
Machine width | mm | 1440 |
Machine height | mm | 2200 |
Fuel tank capacity | L | 45 |
